Chapter 2: Installation and Setup

2.5 Memory

Memory Support

Each motherboard supports up to 256 GB of DDR4 ECC LRDIMM memory with speeds of

up to 2933 MT/s in two DIMM slots. For validated memory, use our Product Resources page.

• For optimal performance, use memory of the same type, size, and speed. Mixed speeds

can be installed, but will run at the speed of the slowest DIMM.

Memory Population

The following memory population table was created based on guidelines provided by Intel to

support Supermicro motherboards.

Memory Slots

DIMMs Slots

1 C1 or D1

2 C1, D1

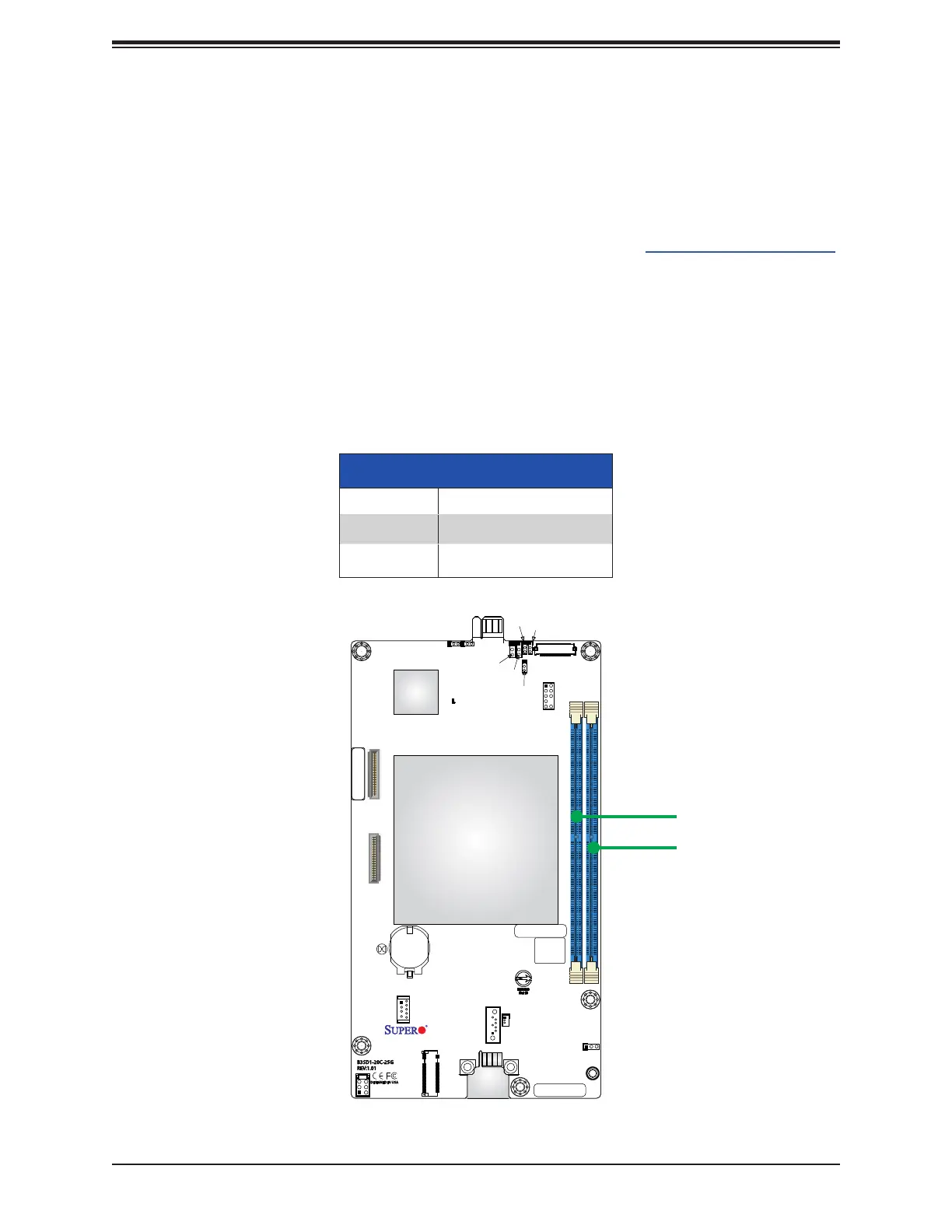

Figure 2-2. Memory Slots Labeled

DIMMC1

DIMMD1

JSMB1

MH4

JMD1_SRW1

JPV2

MH5

JMD1

J25

MH3

JUSB1

JBT1

CN2

CN1

LED1

MH1

JVRM1

JPME2

JPV1

JTPM1

CPU

BMC

MH2

JKVM1

JWD1

JP1

JP2

JPT1

J24

BT1

JSD1

BIOS

LICENSE

BAR CODE

IPMI MAC CODE

MAC CODE

I-SATA0

DIMMD1

DIMMC1
