Chapter 1: Introduction

Control Panel Features

Feature State Description

Power button

The main power switch applies or removes primary power from the power

supply to the server but maintains standby power.

Power LED

Green Power on

Amber steady Power o󰀨

Amber blinking Before the BMC is ready, blinks until every node is ready

KVM/UID LED

Blue steady Indicates that KVM has been initialized

Blue blinking

Unit Identier indicator (The UID function is activated with a management

program.)

NIC LED

Green blinking

Indicates tra󰀩c (Tx and RX data) on the LAN connection to this blade

module

Amber blinking Indicates tra󰀩c over the network (when present in the system)

System Fail

LED

Red

Indicates a fatal error. This may be a memory error, a VGA error or any

other fatal error that prevents the operating system from booting.

Control Panel

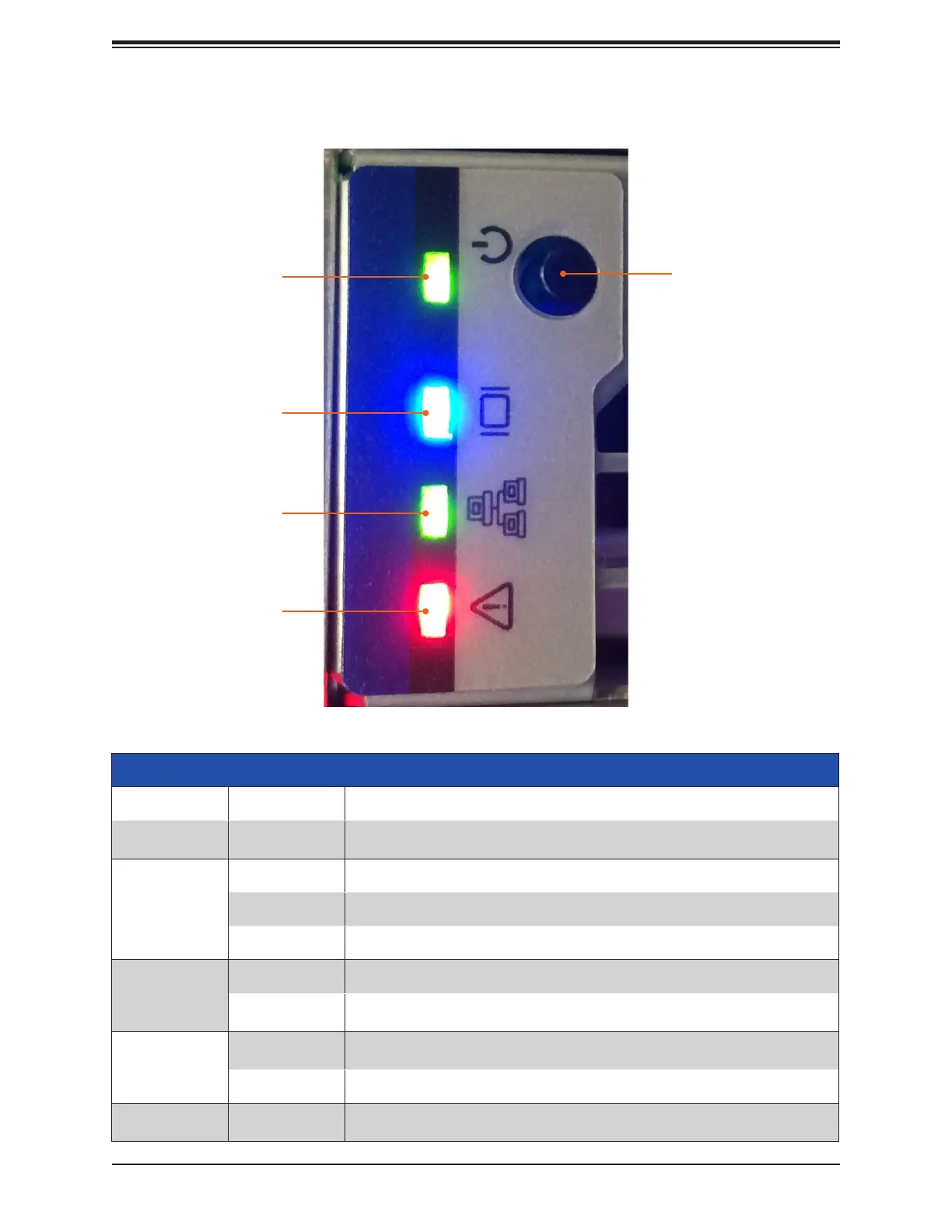

Figure 1-2. Control Panel

Power Button

Power LED

NIC LED

KVM/UID LED

System Fail LED
