Super C9X299-PGF-L/-RPGF-L User's Manual

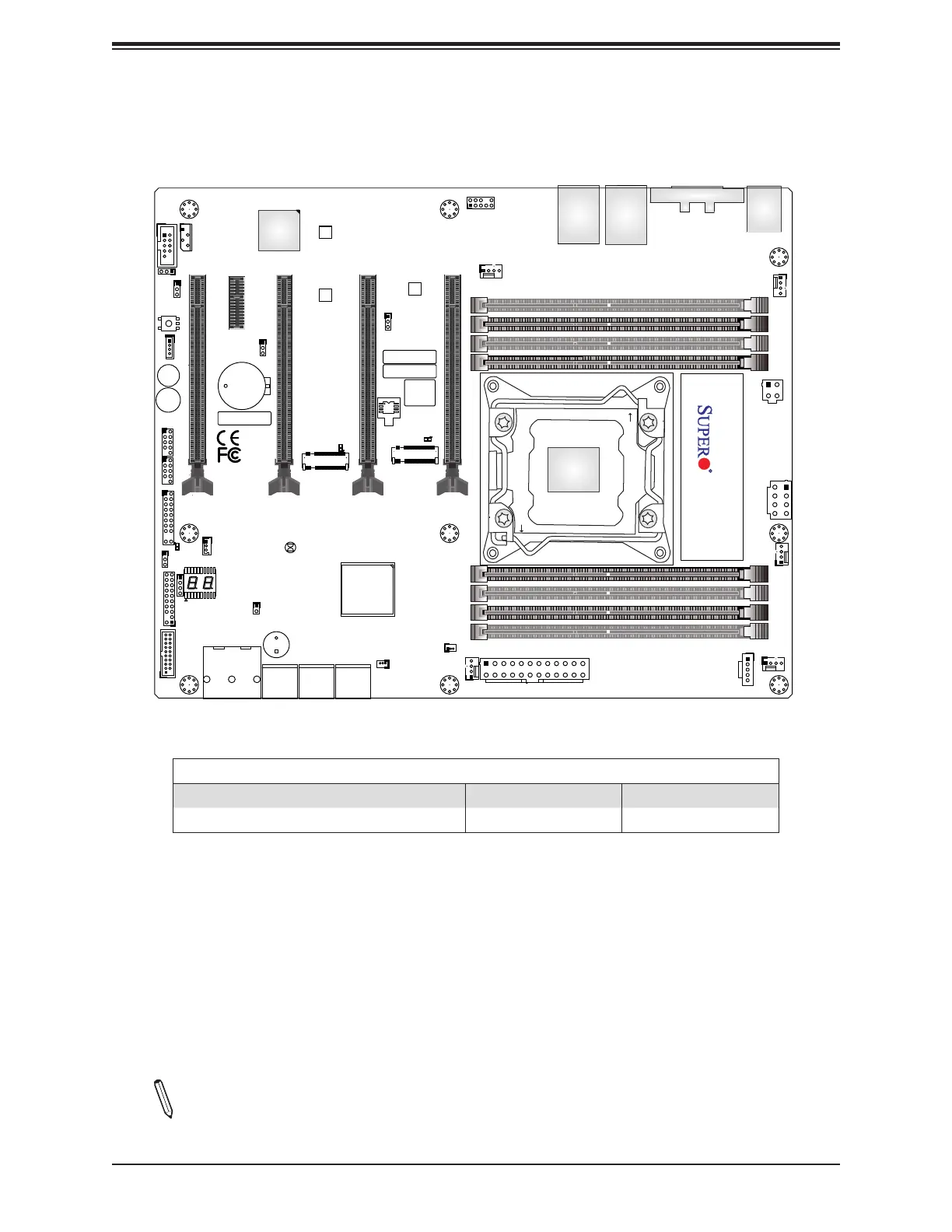

Figure 1-4. C9X299-RPGF-L Motherboard Layout
(not drawn to scale)
BIOS
LICENSE
MAC CODE
IPMI CODE
BAR CODE
C9X299-RPGF-L REV:1.01
+
1
+
CLEAR CMOS
I-SATA5
I-SATA4
I-SATA3
USB 4/5(3.0)
USB 2/3
USB 0/1
PCH SLOT2 PCI-E 3.0 X1
USB 10/11(3.0)
CPU SLOT1 PCI-E 3.0 X8 (IN X16)
CPU SLOT7 PCI-E 3.0 X16
CPU SLOT3 PCI-E 3.0 X8 (IN X16)
CPU SLOT5 PCI-E 3.0 X8 (IN X16)
I-SATA2
I-SATA0
I-SATA1
DIMMA1
DIMMB2
DIMMB1
DIMMA2
USB 8/9 (3.1)
LAN1
USB 6/7(3.1)
DIMMD2
DIMMD1
DIMMC2
DIMMC1
KB/Mouse
CLOSE 1st
OPEN 1st
JF1
LGA2066
VGA
PCIE M.2 M-2
PCIE M.2-M1
LED1
JRK1
SP1
JTPM1
JPI2C1
JL1
JPAC1
JWD1
JPG1
JPME2
CPU_FAN2
SYS_FAN2SYS_FAN3
SYS_FAN1
JBT1
JSD1
JLED1
JIPMB1
JSTBY1
MH15
MH12
MH14
JD1
J3701
LED6903
LED6904
LED7201
B2
JPW1
JPW2
JCOM1
PCH
RESET
POWER
JPB1
JPW3
BMC
CPU_FAN1
U.2-1 U.2-2
Dierences between C9X299-PGF-L and C9X299-RPGF-L
C9X299-PGF-L C9X299-RPGF-L
High Denition Audio Ports (back panel) Yes No
Note: Components not documented are for internal testing only.
