Chapter 5: Optional Components Chapter 5: Optional Components

7. Choose whether to make the NVMe drives in this IOU Hot Plug Capable by selecting

Enabled or Disabled.

8. Repeat steps 4 through 7 for each IOU # on each CPU to enable VMD on the desired

NVMe ports.

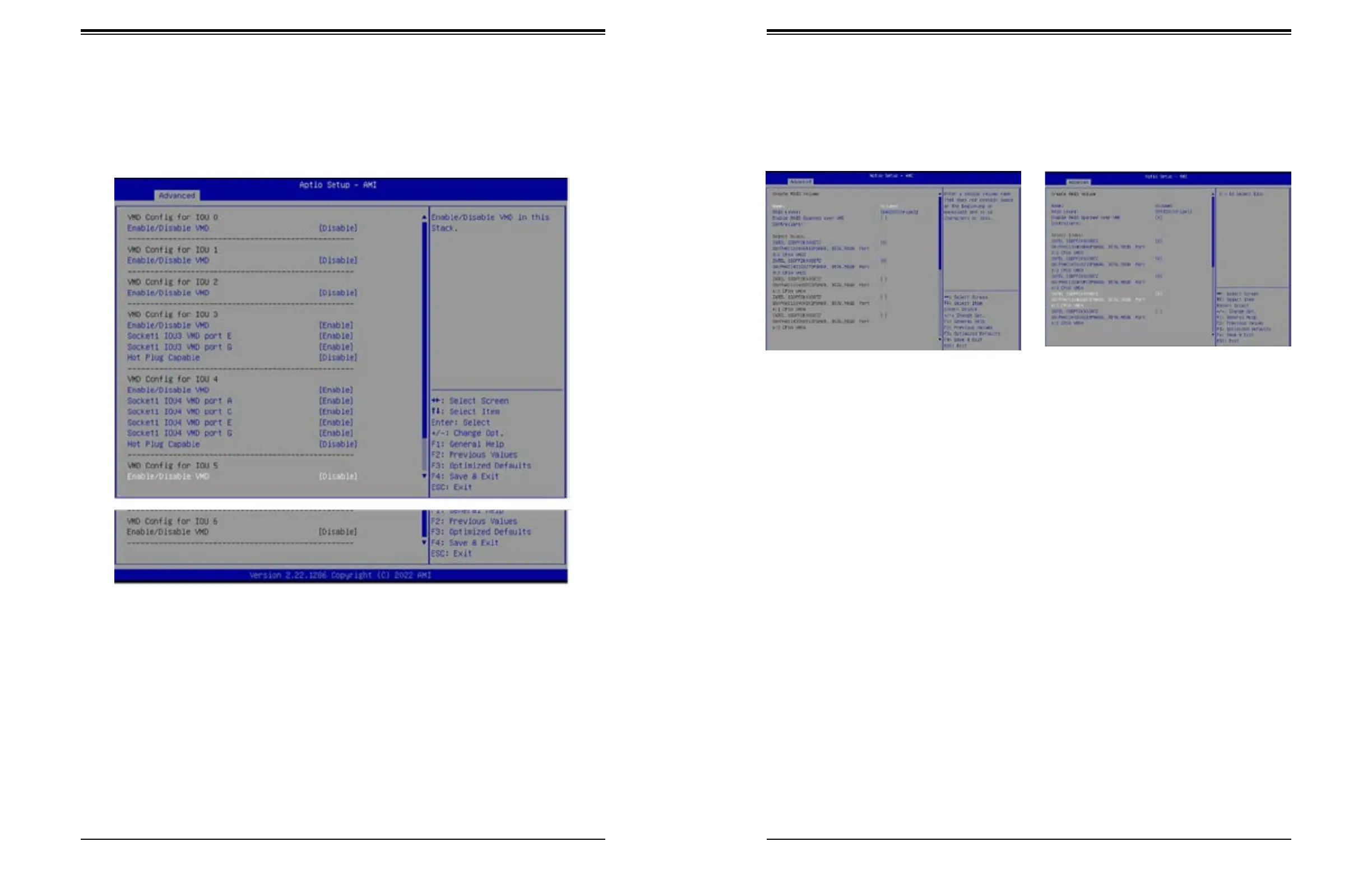

Figure 6-12. BIOS, Enabling Socket 1 Completed (Example)

(This example shows SYS-621H-TN12R with 12 NVMe. Other systems will look di󰀨erent.)

9. Press [F4] to save the conguration and reboot the system.

Note: If there is an existing RAID conguration, delete the RAID volume associated with

the VMD controller before disabling the controller. Failure to do so may lead to unexpected

behavior.

Note: The e󰀨ects of physically changing or swapping a CPU on the VMD controller have

not been thoroughly tested or documented.

Creating NVMe RAID Congurations

1. Open Advanced > Intel(R) Virtual RAID on CPU > All Intel VMD Controllers >

Create RAID Volume.

2. Set Name.

3. Set RAID Level.

4. If cross-controller RAID is required, select Enable RAID spanned over VMD

Controller.

5. Select specic disks for RAID with an [X].

• RAID0: Select at least two [2 - 24] disks

• RAID1: Select only two disks

• RAID5: Select at least three [3 - 24] disks

• RAID10: Select only four disks

6. Select Strip Size (Default 64KB).

7. Select Create Volume.

8. If another RAID is needed, start again at step 1.

Figure 6-13. Created Volume without

enabling RAID spanned over VMD

controller

Figure 6-14. Created Volume with

enabling RAID spanned over VMD

controller
