Jumper Settings
To modify the operation of the motherboard, jumpers can be used to choose between optional
settings. Jumpers create shorts between two pins to change the function of the connector. Pin

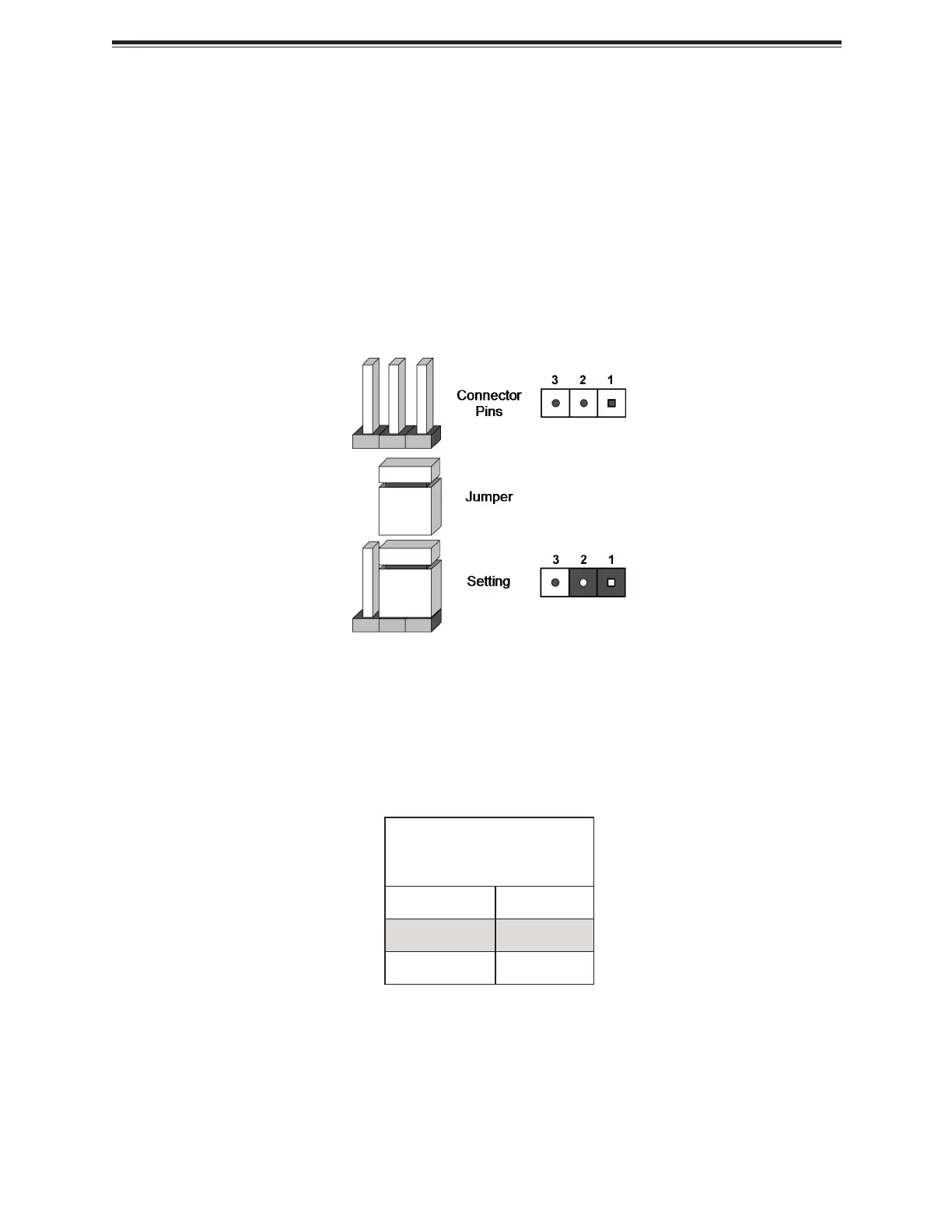

1 is identified with a square solder pad on the printed circuit board. See the diagram below for
an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.
Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper
is off the pins.
LVDS Panel VCC Power
Use the JCLDPWR1 jumper to select the power voltage for the LVDS panel. Make sure that the
specifications of the cable are compatible with the panel to prevent damage.
For a detailed diagram of the A4SAN-H/-E/-L/-WOHS motherboard, see the layout under
"Quick Reference" on page 11.
LVDS Voltage Selection
Jumper Settings
Jumper Setting Definition
Pins 1–3 3.3 V (Default)
Pins 3–5 5 V
ME Manufacturing Mode
Close pins 2–4 of jumper JPME2 to bypass SPI flash security and force the system to operate
in the manufacturing mode, which will allow the user to flash the system firmware from a host
server for system setting modifications. Refer to the table below for jumper settings. The default
56
A4SAN-H/-E/-L/-WOHS: Component Installation
