Power Button

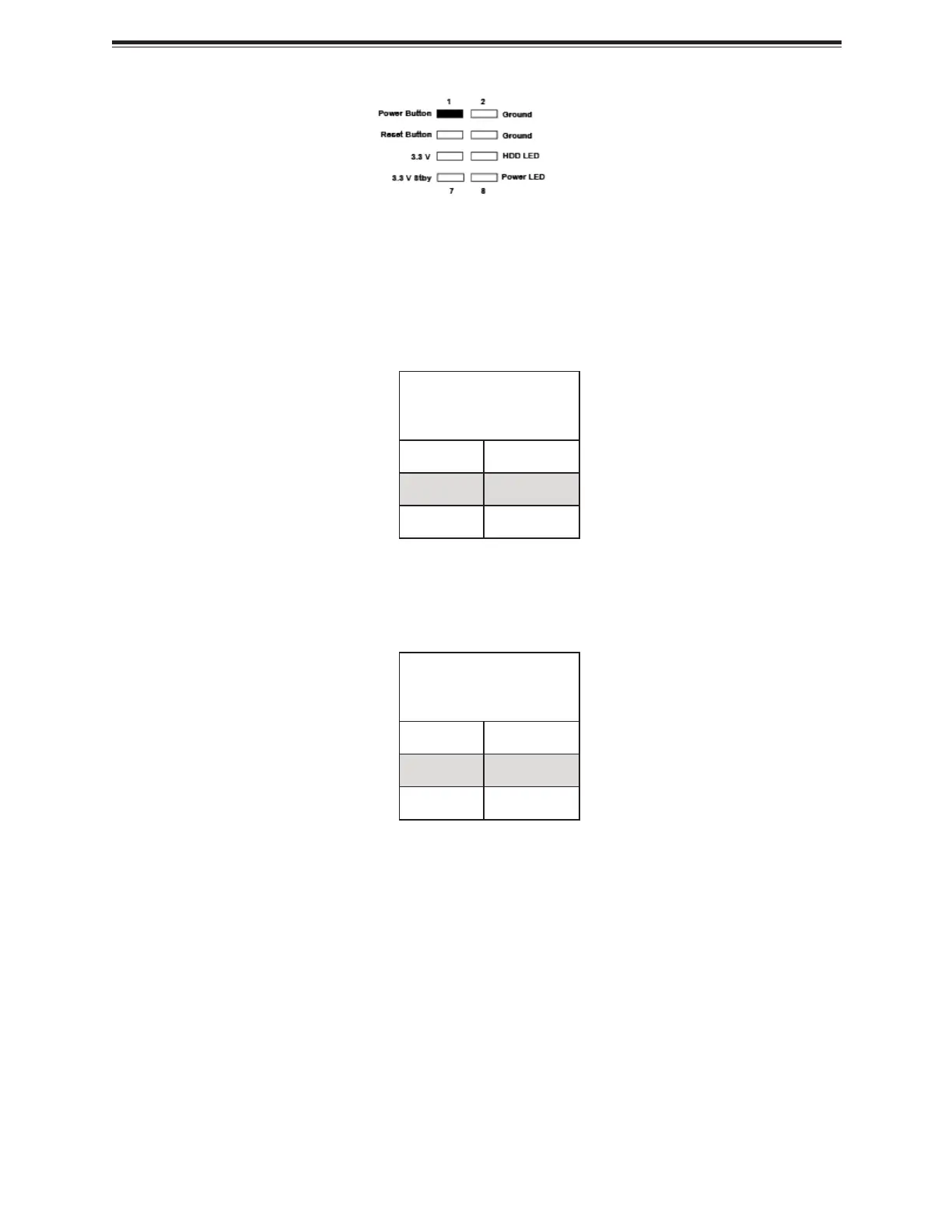

The Power Button connection is located on pins 1 and 2 of JF1 on the A4SAN-H/-E/-L/-WOHS
motherboard. Momentarily contacting both pins will power on/off the system. This button can
also be configured to function as a suspend button (with a setting in the BIOS). To turn off the
power when the system is in suspend mode, press the button for four seconds or longer.
Power Button
Pin Definitions (JF1)
Pin# Definition
1 Power Button
2 GND
Reset Button
The Reset Button connection is located on pins 3 and 4 of JF1 on the A4SAN-H/-E/-L/-WOHS
motherboard. Attach it to a hardware reset switch on the computer case to reset the system.
Reset Button
Pin Definitions (JF1)
Pin# Definition
3 Reset Button
4 GND
HDD LED
The HDD LED connection is located on pins 5 and 6 of JF1 on the A4SAN-H/-E/-L/-WOHS
motherboard. Refer to the table below for pin definitions.
For a detailed diagram of the A4SAN-H/-E/-L/-WOHS motherboard, see the layout under Quick
Reference.
54
A4SAN-H/-E/-L/-WOHS: Component Installation
