A2SAN-H/-E/-L and X11SAN User's Manual

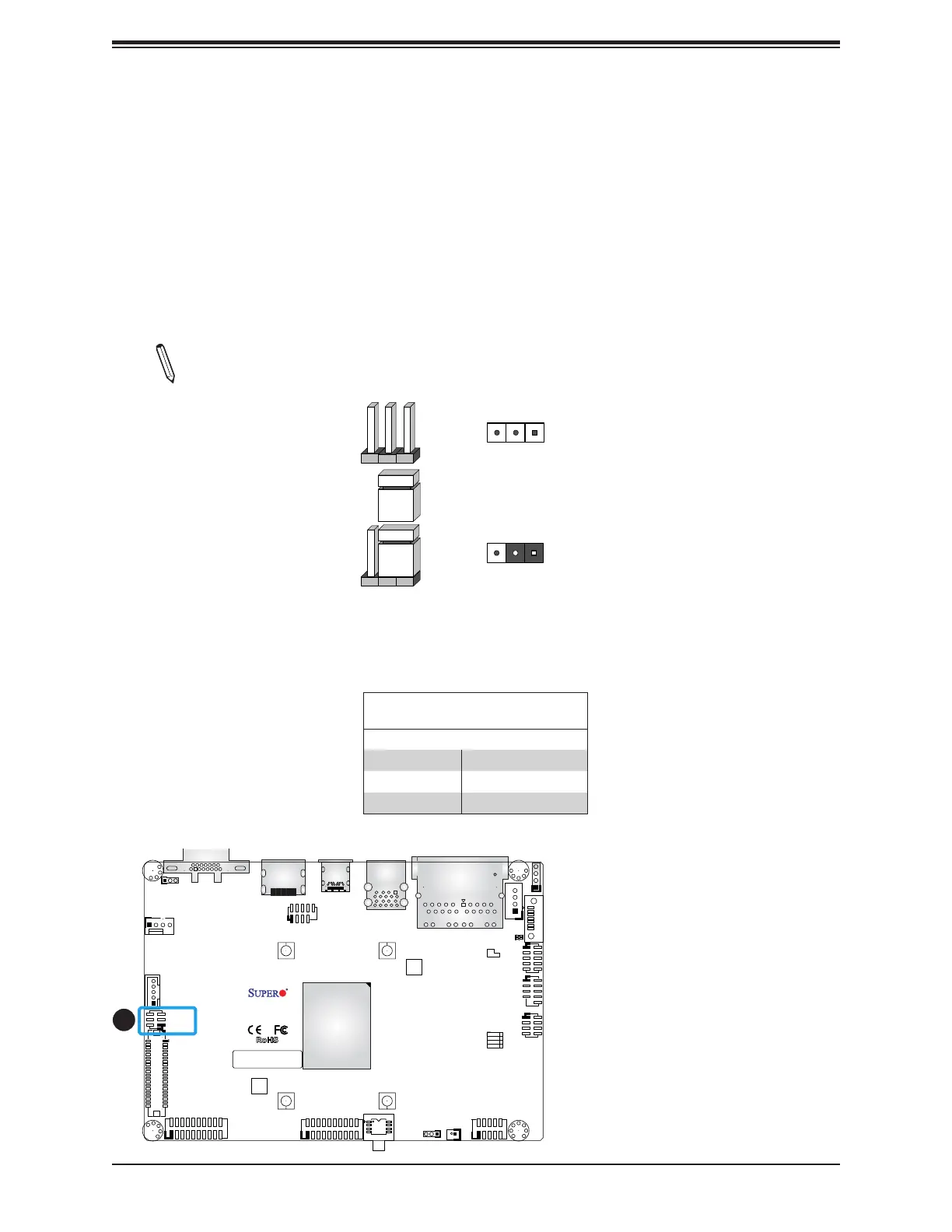

2.7 Jumper Settings
How Jumpers Work
To modify the operation of the motherboard, jumpers can be used to choose between optional
settings. Jumpers create shorts between two pins to change the function of the connector.
Pin 1 is identied with a square solder pad on the printed circuit board. See the diagram
below for an example of jumping pins 1 and 2. Refer to the motherboard layout page for
jumper locations.
Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the
jumper is off the pins.
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
JLCDPWR1
Use this jumper to select the power voltage for the LVDS panel. Make sure that the
specications of the cable is compatible with the panel to prevent damage.
LVDS VCC Power Selection
Jumper Settings
Jumper Setting Denition
Pins 1-3 3.3V (Default)
Pins 3-5 5V
Pins 3-4 12V
DESIGNED IN USA
A2SAN-L
REV:1.02
BAR CODE
JGP1
BT1
JCOM1: COM1/COM2
JCOM2: COM3/COM4
CPU1
FAN1
JPME2
JPF1
LAN1LAN2
JD1
LVDS1
I-SATA1
JHDMI1
LED1
JLCDPWR1
JF1
JIP1
JPH1
AUDIO FP
USB6(3.1)
X
X
X
USB2/3
USB0/1
VGA
JF1
ONPWR
RST
X
HDD LED
PWR LED
SPEAKER
JD1:
USB4/5(3.0)
1. JLCDPWR1
