31
Chapter 2: Installation
DESIGNED IN USA
A2SAN-L
REV:1.02
BAR CODE
JGP1
BT1
JCOM1: COM1/COM2
JCOM2: COM3/COM4
CPU1
FAN1
JPME2
JPF1
LAN1LAN2
JD1
LVDS1
I-SATA1
JHDMI1
LED1
JLCDPWR1
JF1
JIP1
JPH1
AUDIO FP
USB6(3.1)
X
X
X
USB2/3
USB0/1
VGA
JF1
ONPWR
RST
X
HDD LED
PWR LED
SPEAKER
JD1:
USB4/5(3.0)
Power Button
1
Reset Button
2
HDD LED
Power LED
Reset
PWR
3.3V
3.3V Stby
Ground
Ground
78

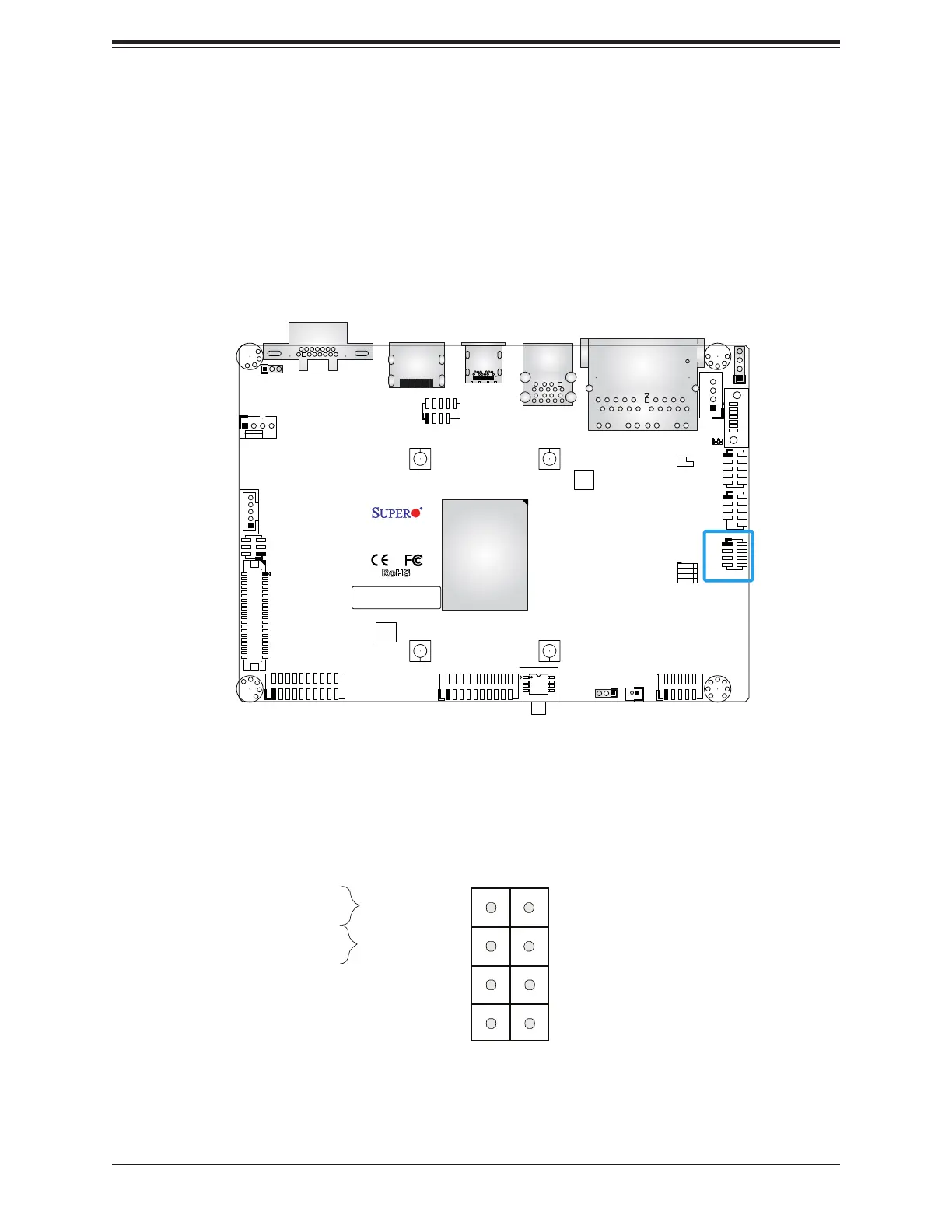

Figure 2-2. JF1 Header Pins
2.5 Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specically for use
with Supermicro chassis. See the gure below for the descriptions of the front control panel
buttons and LED indicators.
