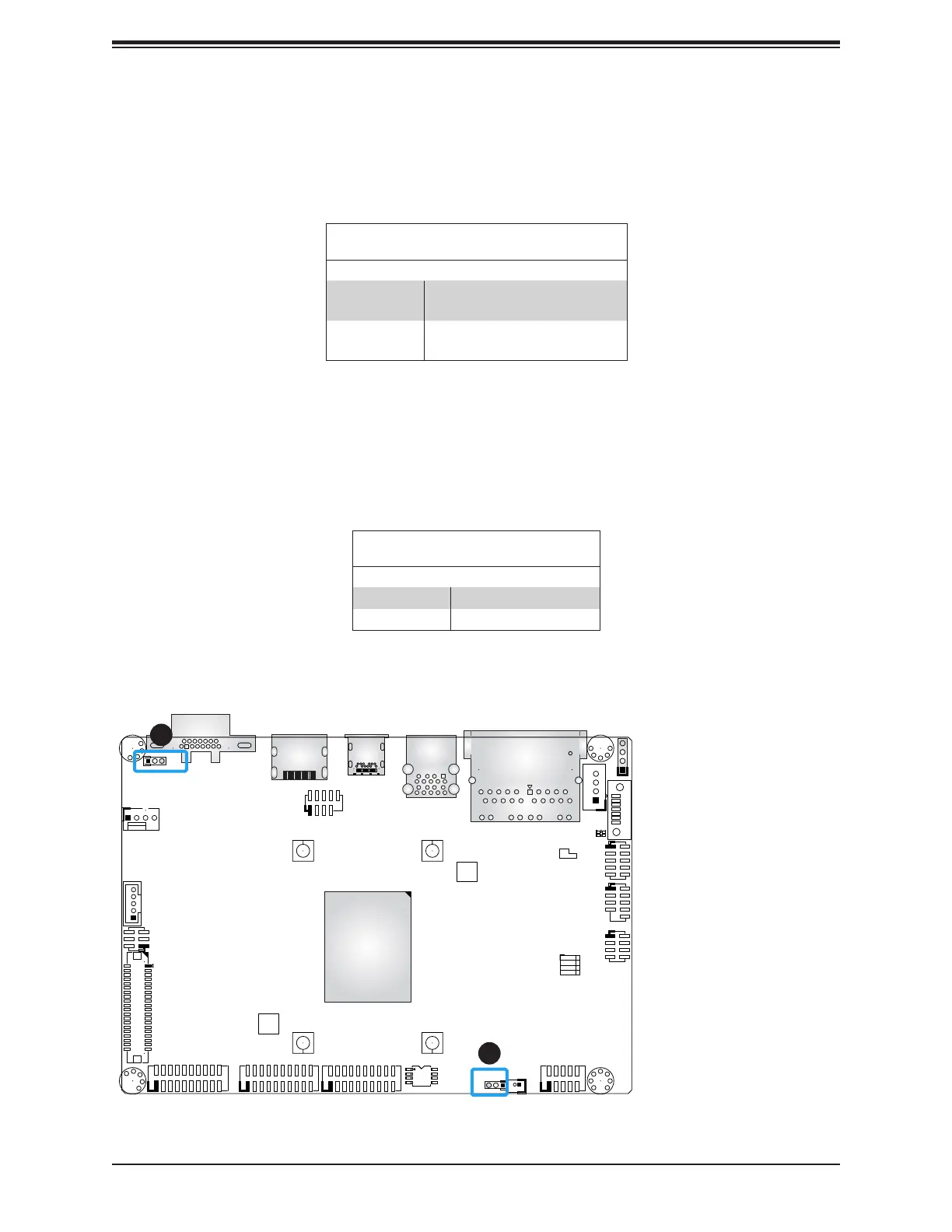

Super A2SAN-H/-E/-L and X11SAN User's Manual
DESIGNED IN USA
A2SAN-L
REV: 2.00
JGP1
BT1
JCOM1: COM1/COM2
JCOM2: COM3/COM4
CPU1
FAN1
JPME2
JPF1
LAN1LAN2
JD1
LVDS1
I-SATA1
JHDMI1
LED1
JLCDPWR1
JF1
JIP1
JPH1
JCOM3: COM5/COM6
AUDIO FP
USB6(3.1)
X
X
X
USB2/3
USB0/1
VGA
JF1
ONPWR
RST
X
HDD LED
PWR LED
SPEAKER
JD1:
USB4/5(3.0)
1
1. Power Force On
2. Manufacturing Mode
2
Power Force On
Use this jumper to select the "POWER FORCE ON" function when the AC power cord is
plugged in. When enabling force power on and AC power recovery, the system will boot up
automatically without pressing the power button.
Power Force On
Jumper Settings
Jumper Setting Denition
Pins 1-2
Power Force On (Default)
(when AC power cord is plugged)
Pins 2-3
PWR BTN Power On
(when AC power cord is plugged)
Manufacturing Mode Select
Close JPME2 to bypass SPI ash security and force the system to use the Manufacturing
Mode, which will allow you to ash the system rmware from a host server to modify system
settings. See the table below for jumper settings.
Manufacturing Mode
Jumper Settings
Jumper Setting Denition
Pins 1-2 Normal (Default)
Pins 2-3 Manufacturing Mode
