38
Super A2SAN-H/-E/-L and X11SAN User's Manual
Serial COM Header (JCOM2/3)
Pin Denitions
Pin# Denition Pin# Denition
1 DCD3 2 DSR3
3 RXD3 4 RTS3
5 TXD3 6 CTS3
7 DTR3 8 RI3_N
9 GND 10 N/A
11 DCD4 12 DSR4
13 RXD4 14 RTS4
15 TXD4 16 CTS4
17 DTR4 18 RI4_N
19 GND 20 N/A
DESIGNED IN USA
A2SAN-L
REV: 2.00
JGP1
BT1
JCOM1: COM1/COM2
JCOM2: COM3/COM4
CPU1
FAN1
JPME2
JPF1
LAN1LAN2
JD1
LVDS1
I-SATA1
JHDMI1
LED1
JLCDPWR1
JF1
JIP1
JPH1
JCOM3: COM5/COM6
AUDIO FP
USB6(3.1)
X
X
X
USB2/3
USB0/1
VGA
JF1
ONPWR
RST
X
HDD LED
PWR LED
SPEAKER
JD1:
USB4/5(3.0)

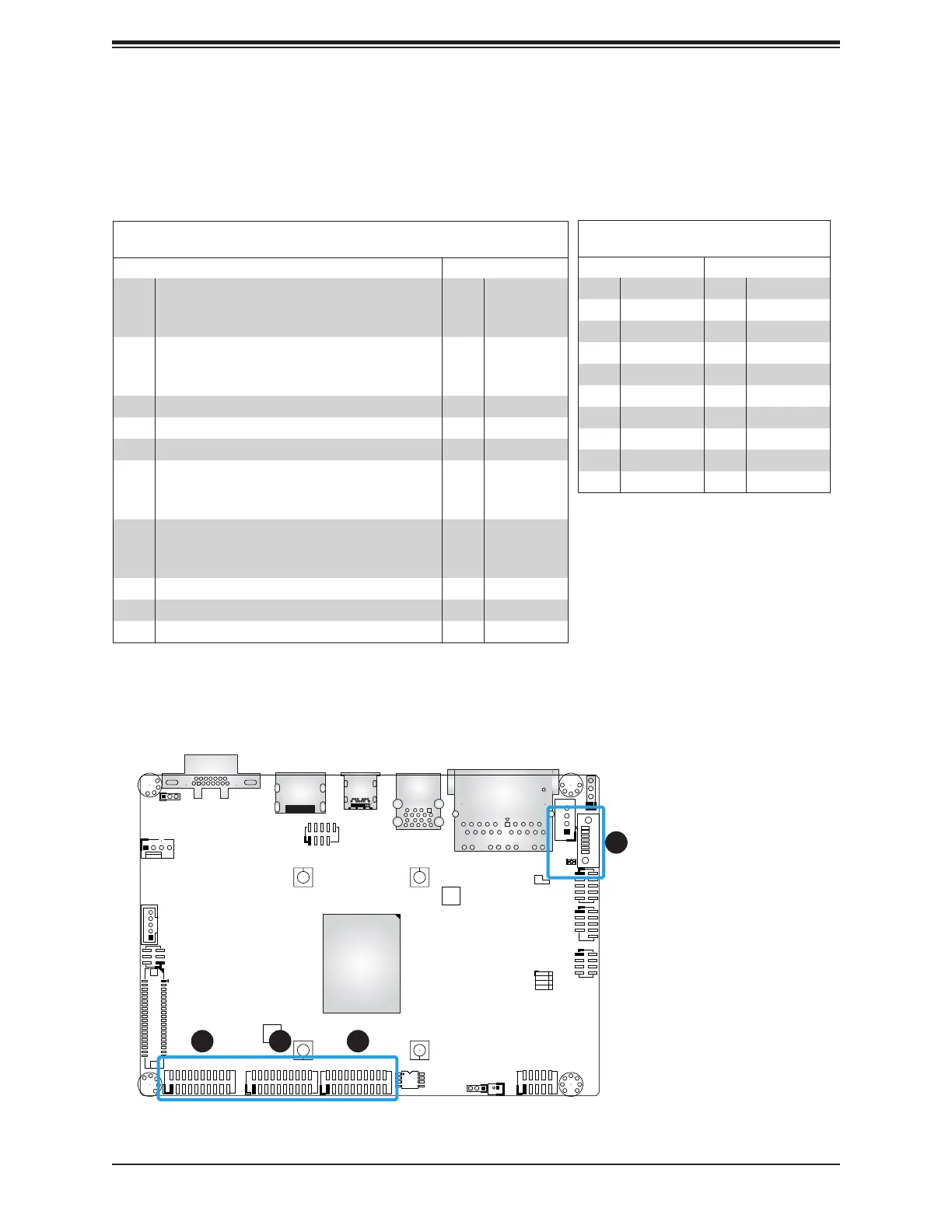

COM Headers
Two COM headers (JCOM1: COM1/COM2 supports two RS232/RS422/RS485 and JCOM2/3:
COM3/COM4/COM5/COM6 supports four RS232) are located on the motherboard. COM 5/6
are only supported on A2SAN-H-WOHS. See the table below for pin denitions.
12
1. JCOM1
2. JCOM2
3. JCOM3
4. I-SATA1
SATA Ports
The A2SAN-H/-E/-L and X11SAN has one SATA 3.0 port (I-SATA1) that is supported by the
Intel® Atom SoC.
3
Serial COM Header (JCOM1)
Pin Denitions
Pin# Denition Pin# Denition
1
DCD1
or RS-485/422_COM1_TX- (Full Duplex)
or RS-485_COM1_Data- (Half Duplex)
2
DSR1
3
RXD1
or RS-485/422_COM1_TX+ (Full Duplex)
or RS-485_COM1_Data+ (Half Duplex)
4
RTS1
5 TXD1 or RS-485/422_COM1_RX+ (Full Duplex) 6 CTS1
7 DTR1 or RS-485/422_COM1_RX- (Full Duplex) 8 RI1_N
9 GND 10 N/A
11
DCD2
or RS-485/422_COM2_TX- (Full Duplex)
or RS-485_COM2_Data- (Half Duplex)
12
DSR2
13
RXD2
or RS-485/422_COM2_TX+ (Full Duplex)
or RS-485_COM2_Data+ (Half Duplex)
14
RTS2
15 TXD2 or RS-485/422_COM2_RX+ (Full Duplex) 16 CTS2
17 DTR2 or RS-485/422_COM2_RX- (Full Duplex) 18 RI_N2
19 GND 20 N/A
4
