30
Super A2SAN-H/-E/-L and X11SAN User's Manual
DESIGNED IN USA
A2SAN-L
REV: 2.00
JGP1
BT1
JCOM1: COM1/COM2
JCOM2: COM3/COM4
CPU1
FAN1
JPME2
JPF1
LAN1LAN2
JD1
LVDS1
I-SATA1
JHDMI1
LED1
JLCDPWR1
JF1
JIP1
JPH1
JCOM3: COM5/COM6
AUDIO FP
USB6(3.1)
X
X
X
USB2/3
USB0/1
VGA
JF1
ONPWR
RST
X
HDD LED
PWR LED
SPEAKER
JD1:
USB4/5(3.0)
Front Panel USB 2.0 Ports 0/1
Header Pin Denitions
Pin# Denition Pin# Denition
1 P5V_DUAL_F 2 P5V_DUAL_F
3 USBCON_N2 4 USBCON_N3
5 USBCON_P2 6 USBCON_P3
7 Ground 8 Ground
9 10 NC
Back Panel USB 3.0
Pin Denitions
Pin# Denition Pin# Denition
A1 VBUS B1 VBUS
A2 D1-N B2 D2-N
A3 D1-P B3 D2-P
A4 GND B4 GND
A5 Stda_SSRX1-N B5 Stda_SSRX2-N
A6 Stda_SSRX1-P B6 Stda_SSRX2-P
A7 GND_DRAIN B7 GND_DRAIN
A8 Stda_SSTX1-N B8 Stda_SSTX2-N
A9 Stda_SSTX1-P B9 Stda_SSTX2-P

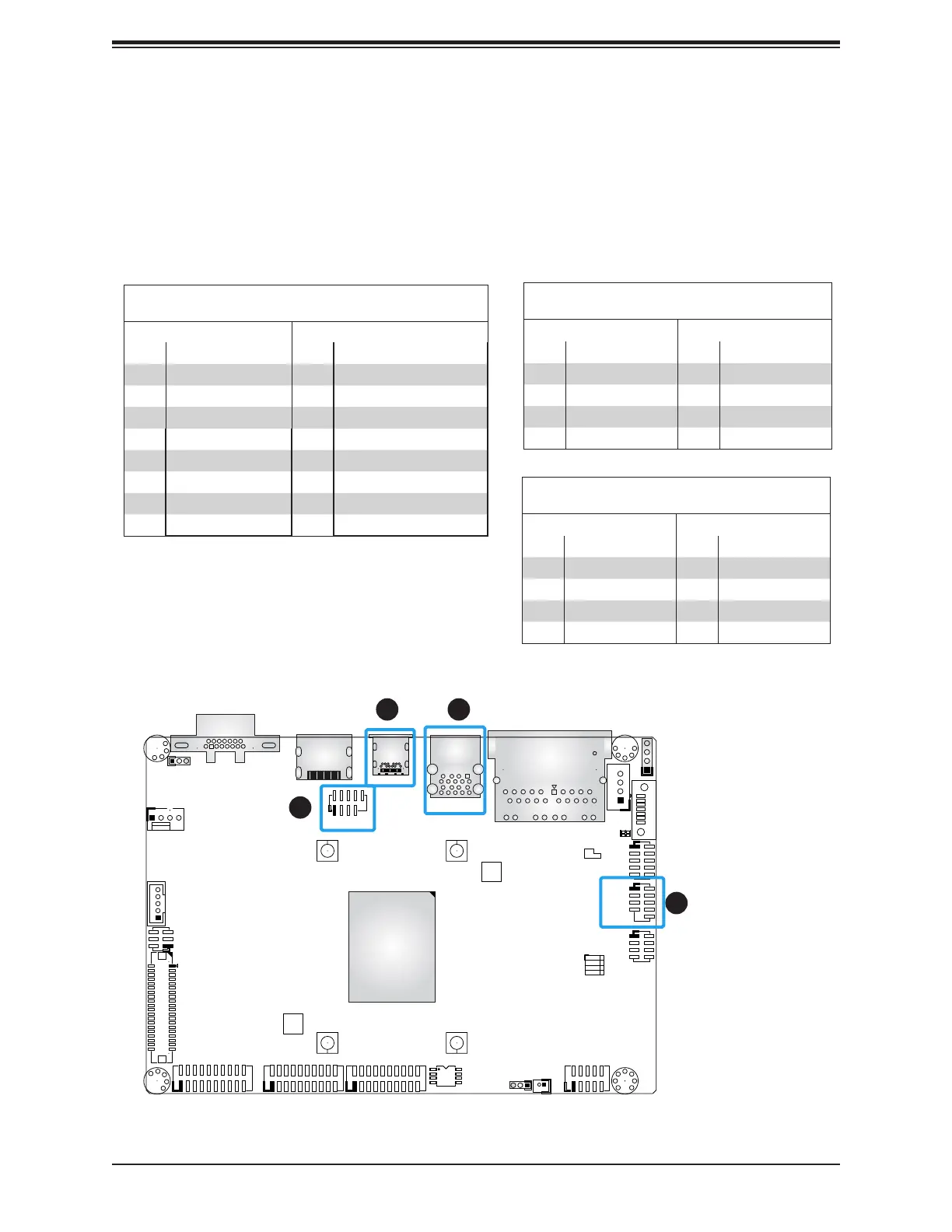

Universal Serial Bus (USB) Ports
There are two USB 3.0 ports (USB4/5) and one USB 3.1 Type C port (USB6) on the I/O back
panel. The motherboard also has two front access USB 2.0 headers (USB0/1 and USB2/3)
that provide four USB connections. The onboard headers can be used to provide front side
USB access with a cable. Two USB 2.0 cables for front panel support are included with the
motherboard.
1
2
1. USB0/1
2. USB2/3
3. USB4/5
4. USB6
4 3
Front Panel USB 2.0 Ports 2/3
Header Pin Denitions
Pin# Denition Pin# Denition
1 P5V_DUAL_F 2 P5V_DUAL_F
3 USBCON_N4 4 USBCON_N5
5 USBCON_P4 6 USBCON_P5
7 Ground 8 Ground
9 10 NC
