Je bekijkt pagina 40 van 99
40

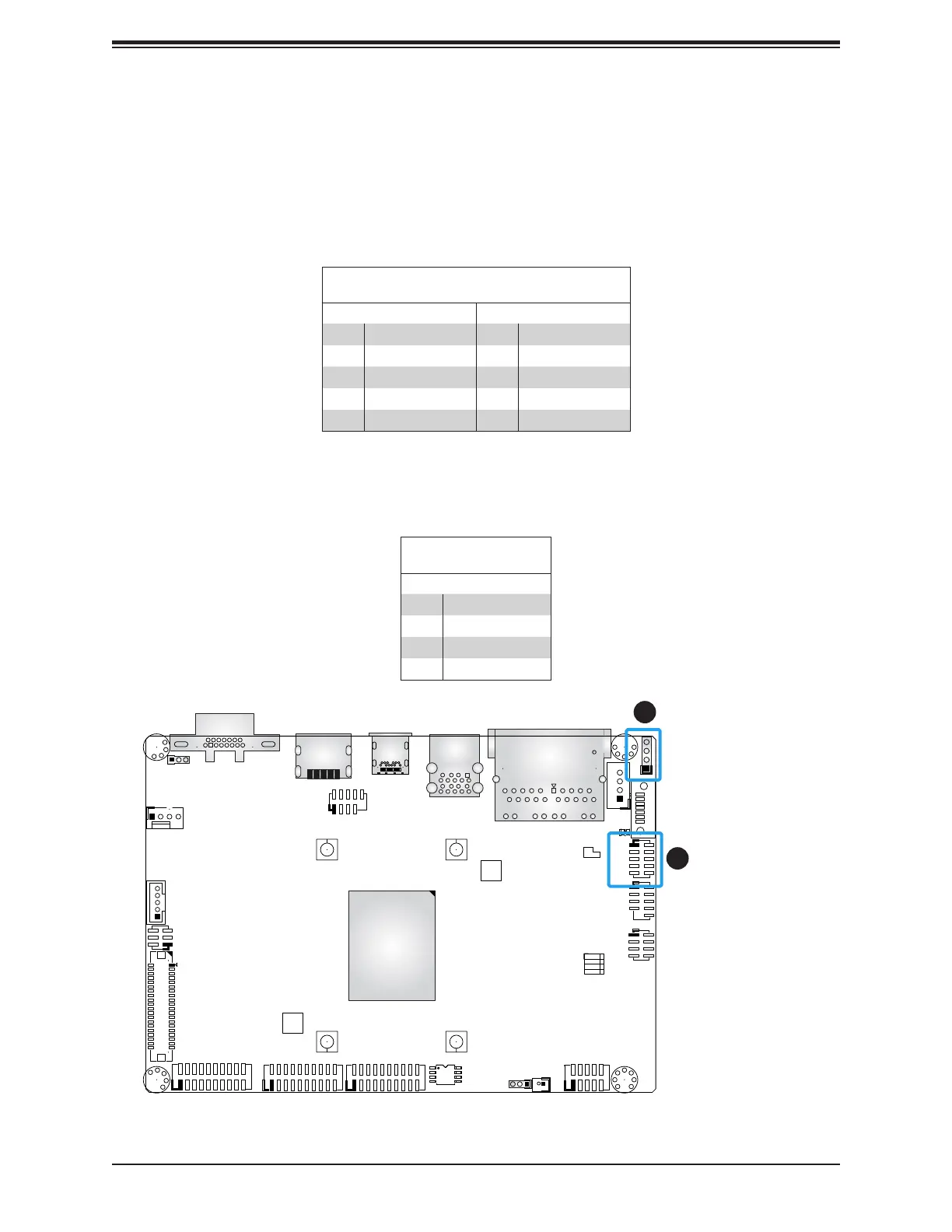

Super A2SAN-H/-E/-L and X11SAN User's Manual
DESIGNED IN USA
A2SAN-L
REV: 2.00
JGP1
BT1
JCOM1: COM1/COM2
JCOM2: COM3/COM4
CPU1
FAN1
JPME2
JPF1
LAN1LAN2
JD1
LVDS1
I-SATA1
JHDMI1
LED1
JLCDPWR1
JF1
JIP1
JPH1
JCOM3: COM5/COM6
AUDIO FP
USB6(3.1)
X
X
X
USB2/3
USB0/1
VGA
JF1
ONPWR
RST
X
HDD LED
PWR LED
SPEAKER
JD1:
USB4/5(3.0)
1
1. JGP1
2. Speaker
General Purpose I/O Header
The JGP1 (General Purpose Input/Output) header is a general purpose I/O expander on a
pin header via the SMBus. Each pin can be congured to be an input pin or output pin. The
GPIO is controlled via the PCA9554APW 8-bit GPIO expansion from PCH SMBus. The base
address is 0xF040. The expander slave address is 0x4C for WRITE and READ. See the table
below for pin denitions.
GPIO Header
Pin Denitions
Pin# Denition Pin# Denition
1 P3V3SB 2 GND
3 GP_P3V3_GP0 4 GP_P3V3_GP4
5 GP_P3V3_GP1 6 GP_P3V3_GP5
7 GP_P3V3_GP2 8 GP_P3V3_GP6
9 GP_P3V3_GP3 10 GP_P3V3_GP7
Speaker
If you wish to use an external speaker, connect a cable to pins 1-4 on the JD1 header. See
the table below for pin denitions.
Speaker Connector
Pin Denitions
Pin# Signal
1 P5V
2 NC
3 NC
4 R_SPKPIN
2
