User Manual 2 Product Description
*The images shown are for illustration purposes only and may not be an exact representation
of the actual product.
table 2-2
DC switch PV terminals controlled by the switch
AUXILIARY SWITCH -
DC SWITCH 1 PV1 ~ PV10
DC SWITCH 2 PV11 ~ PV20
DC SWITCH 3 PV21 ~ PV30

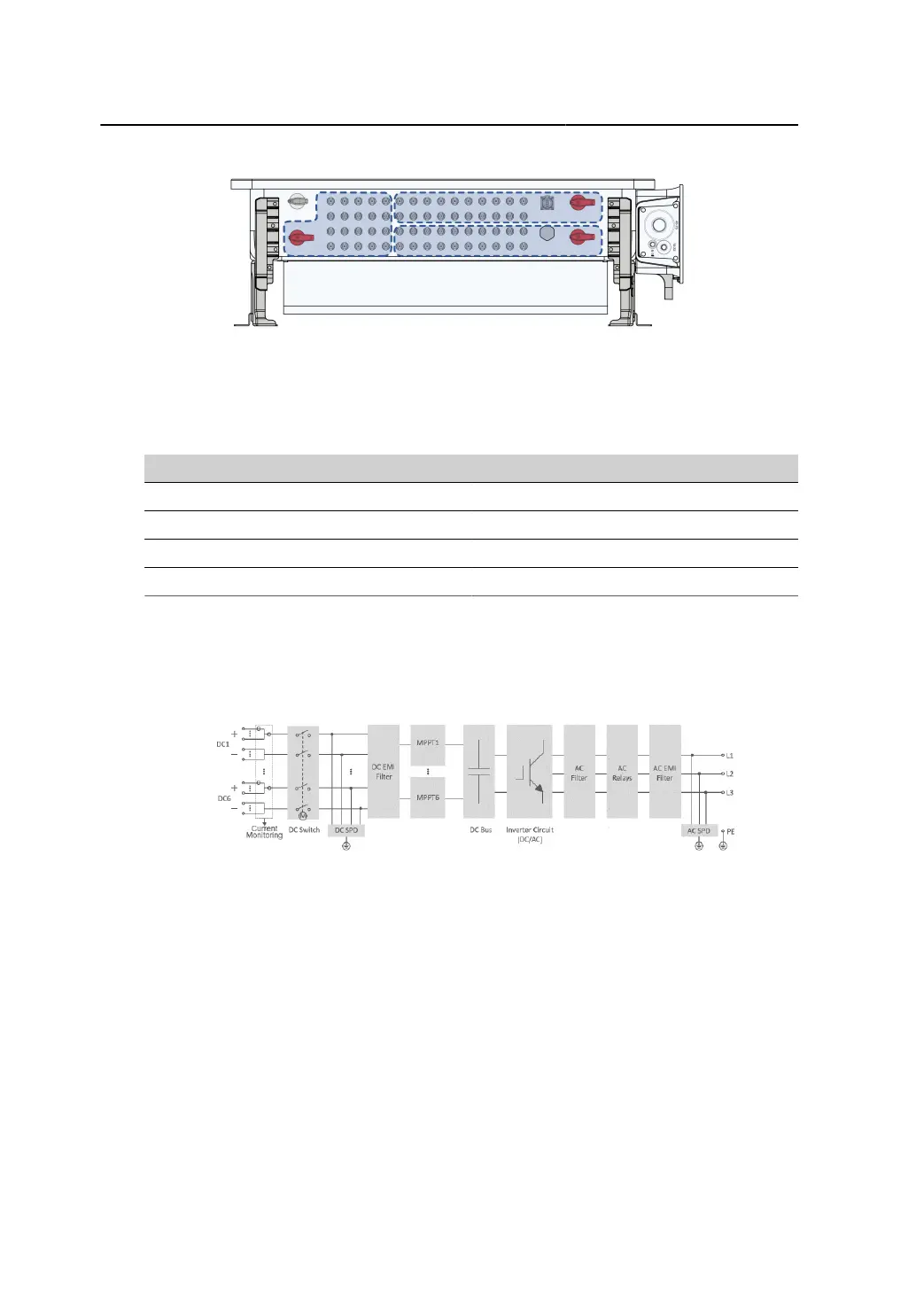

2.6   Circuit Diagram
The following figure shows the main circuit of the inverter.
figure 2-4 Circuit Diagram
The DC SPD provides a discharge circuit for the DC side overvoltage to prevent it from
damaging the internal circuits of the inverter.
EMI filters can filter out the electromagnetic interference inside the inverter to ensure that
the inverter meets the requirements of electromagnetic compatibility standards.
The MPPT is used to ensure a maximum power from PV arrays at different PV input con
ditions.
The Inverter Circuit converts the DC power into grid-compliant AC power and feeds it into
the grid.
The AC filter filters the output AC component of high frequency to ensure that the output
current meets the grid requirements.
13
