2 Product Description User Manual
No. Name Description
1 LED indicator To indicate the current working state of the inverter.
2 AC junction box
To connect AC cable and tracking system power cable in this
area.
3
External protec
tive grounding
terminals
2, use at least one of them to ground the inverter.
4 Bottom handles 2, used to move the inverter.
5 Mounting lugs 2, used to hang the inverter onto the mounting-bracket.
6 Wiring area
DC switches, DC terminals, and communication terminals.
For details, refer to 5.2 Terminal Description.
7 Labels
To clearly identify the product, including nameplate, warning
symbols and QR code.
Dimensions

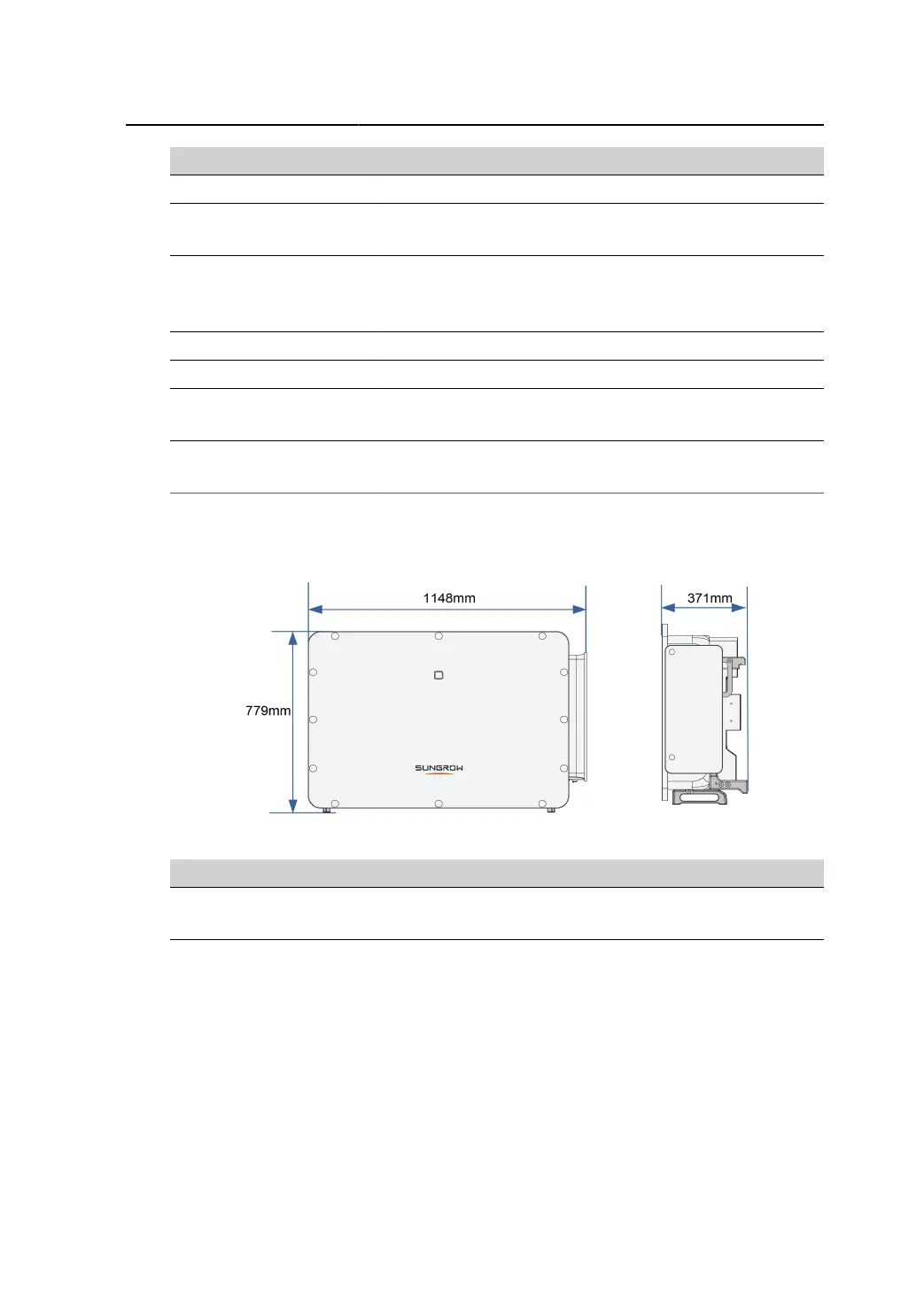

The following figure shows the dimensions of the inverter.
figure 2-3 Product Dimensions(in mm)
Model Dimensions Weight
SG305HX/SG320HX-20/
SG350HX-20/SG250HX-20
1148 mm * 779 mm * 3 71 mm ≤ 106 kg
*
*:Due to the multi-supplier for some key components, the actual weight may have a ±8% de
viation, please refer to the actually delivered product.
10
