2 Product Description
2.1 System Introduction
The inverter is a transformerless 3-phase PV grid-connected inverter. As an integral compo
nent in the PV power system, the inverter is designed to convert the direct current power gen
erated from the PV modules into grid-compatible AC current and to feed the AC current into
the utility grid.
WARNING
Do not connect any local load between the inverter and the AC circuit breaker except
for the tracking axis.
NOTICE
When designing the system, ensure that the operating ranges of all devices that are
connected to the inverter meet the requirements of the inverter.
The PV modules in the system must comply with the IEC 61730-1 (2016) class
Ⅱ
stan
dard.
The inverter is only applicable to the scenarios described in the manual and cannot
be used in other situations.
The intended usage of the inverter is illustrated in the following figure.

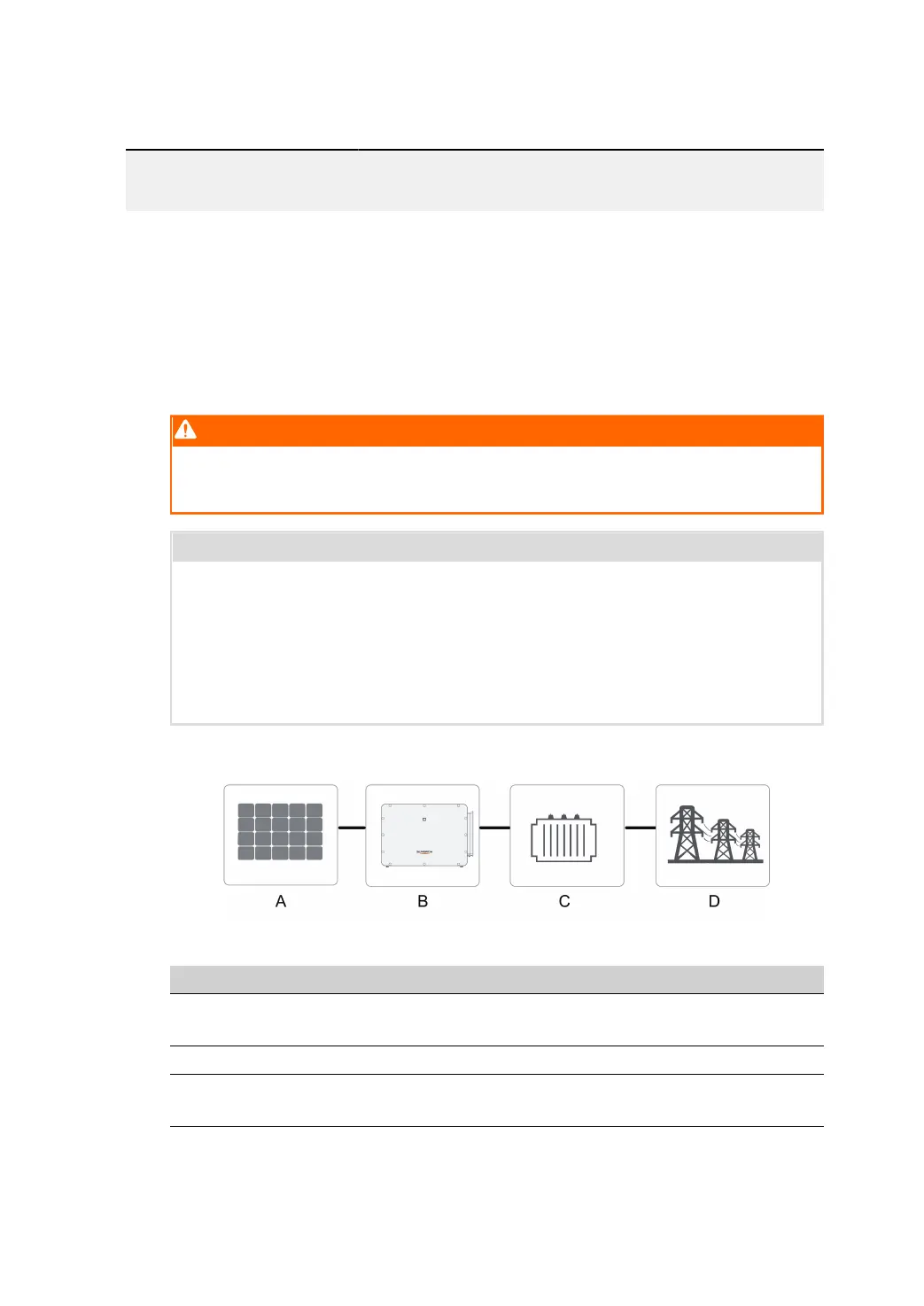

figure 2-1 Inverter Application in PV Power System
Item Description Note
A PV strings
Monocrystalline silicon, polycrystalline silicon and thin-film with
out grounding
B Inverter SG305HX / SG320HX-20 / SG350HX-20 / SG250HX-20
C Transformer
Raises the output voltage of the inverter to a level that meets
the requirements of the grid
8
