User Manual 5 Electrical Connection
Specification
No. Cable Type
Conductor Cross-sec
tional Area
Outdoor four-core copper / alu
minum wire cable
(2)
Outdoor three-core copper / alu
minum wire cable
(2)
Outdoor PE cable
(3)
Four single-core outdoor copper
cables
3 AC cable
(5)
Three single-core outdoor alu
minum cables
Outdoor PE cable
S: 350 Kcmil~750 Kcmil
S
p
≥ S/2
(4)
4
Communica
tion cable
Shielded twisted pair 0.75 mm
2
~ 1.5 mm
2
Note(1): It is prohibited to use PVC cables when STAUBLI connectors are used. The DC cable
must be made of tinned copper conductors, with a minimum of 7 cores and an outside diameter
ranging from 5.9 mm to 8.8 mm.
Note(2): A copper to aluminum adapter terminal is required when an aluminum cable is used.
For details, refer to Aluminum Cable Requirements.
Note(3): The specifications are valid only when the phase wire and PE wire use the same
material. If otherwise, ensure that the cross section of the PE wire produces a conductance
equivalent to that of the wire specified in the table.
Note(4): S is the cross-sectional area of the AC cable conductor, and Sp is the cross-sectional
area of the ground cable conductor.

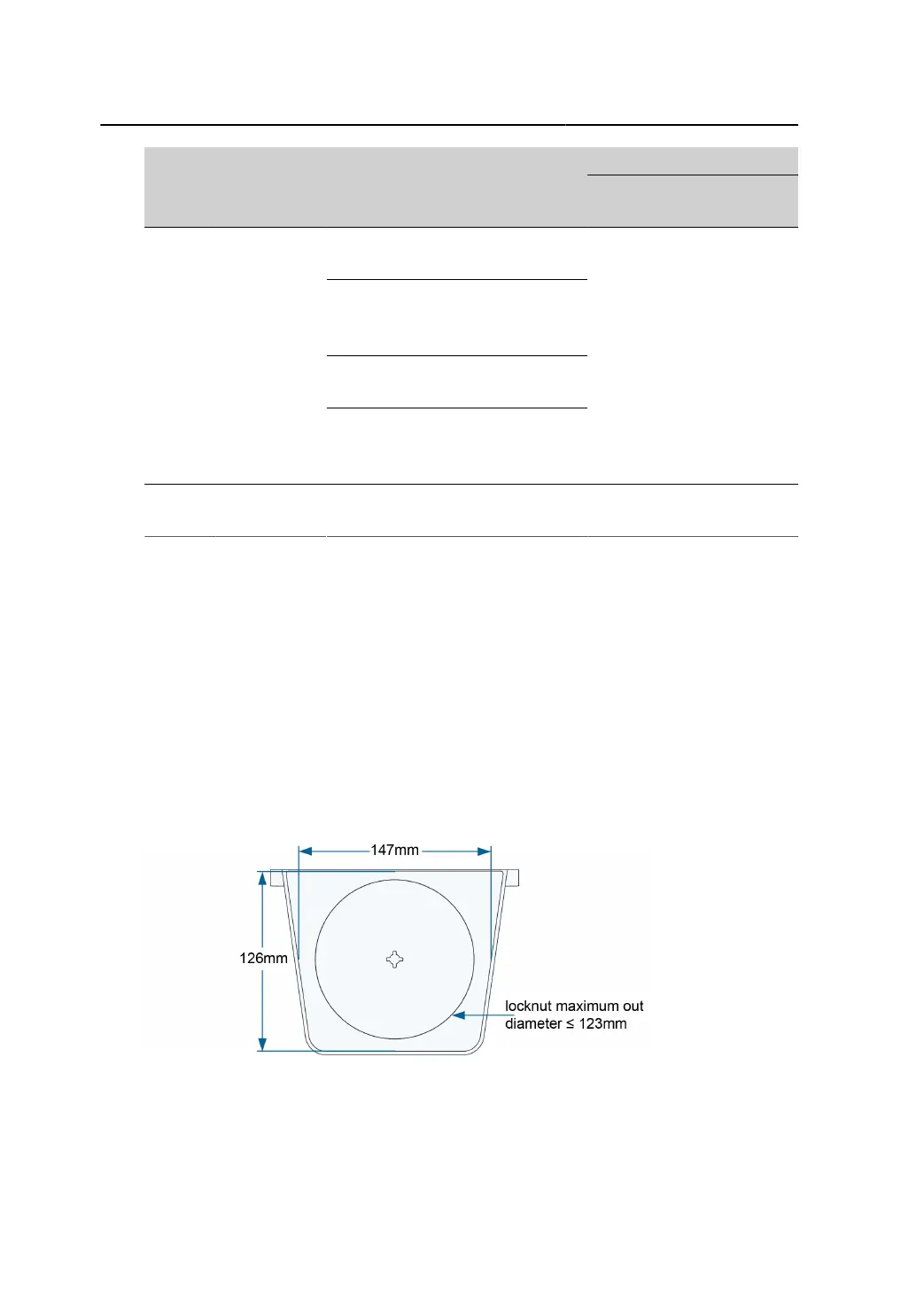

Note(5): The size of the sealing plate and the supported outer diameter of the Locknut are
shown in the figure below. Please select an appropriate conduit according to actual needs.
