2 Product Description User Manual
No. Name Description
3
External protec
tive grounding
terminals
2, use at least one of them to ground the inverter.
4 Bottom handles 2, used to move the inverter.
5 Mounting lugs 4, used to hang the inverter onto the mounting-bracket.
6 Wiring area
DC switches, DC terminals, and communication terminals.
For details, refer to 5.2 Terminal Description.
7 Labels
To clearly identify the product, including nameplate, warning
symbols and QR code.
Dimensions

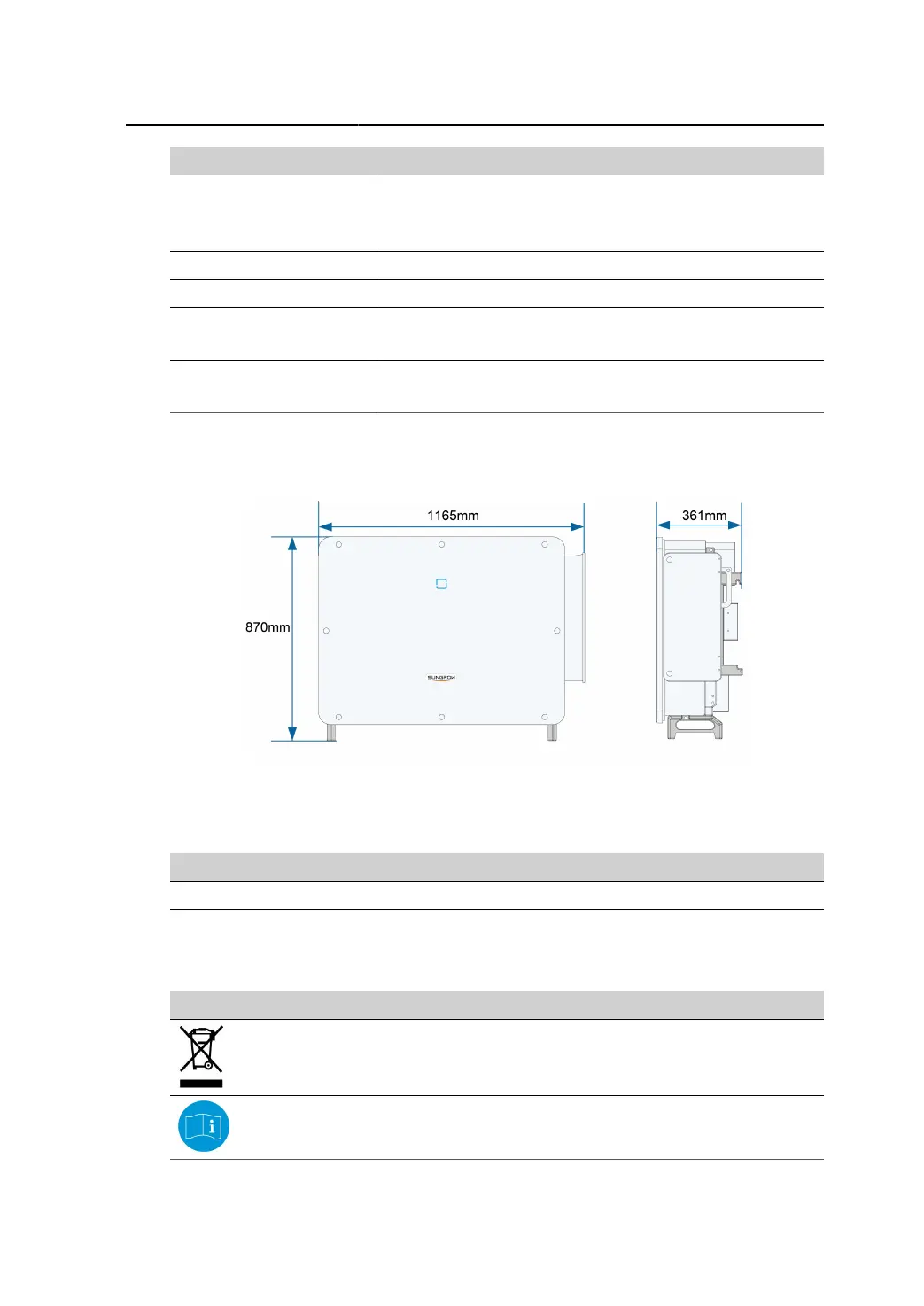

The following figure shows the dimensions of the inverter.
figure 2-3 Product Dimensions(in mm)
Weight
Model Weight
SG200HX-US ≤ 120 kg ( ≤ 265 lbs )
2.3 Symbols on Product
Symbol Explanation
Do not dispose of the inverter together with household waste.
Read the user manual before maintenance!
