Step 2 Prepare the terminals and install them tightly, where reference can be made to the cable
connector installation manual.
The wiring terminal can be connected with either copper cable or aluminium cable.
• In case of copper cable, use copper wiring terminals.
• In case of aluminium cable, use copper-to-aluminium adapter terminals.
The HV wiring terminal can be connected to a maximum of two cables. Select the terminal
as needed.
--End
Further Operations
Seal the bottom cable entries with fire-proof mud, clear sundries inside the cabinet, and
reassemble the sealing plate of the cabinet.
Should there be any unused wiring terminals, block them with insulating caps.
NOTICE
On-site wiring should be performed based on the actual conditions, in compliance with
the MV switchgear manual.
NOTICE
Ensure correct phase sequence during cable connection.
6.6.3 Securing MV Cable
After completing the wiring on the MV side according to the relevant requirements, secure the
cables to prevent them from slipping due to stress.
Single-core or three-core cables may be used in the switchgear. Secure them in different
ways, as shown below.

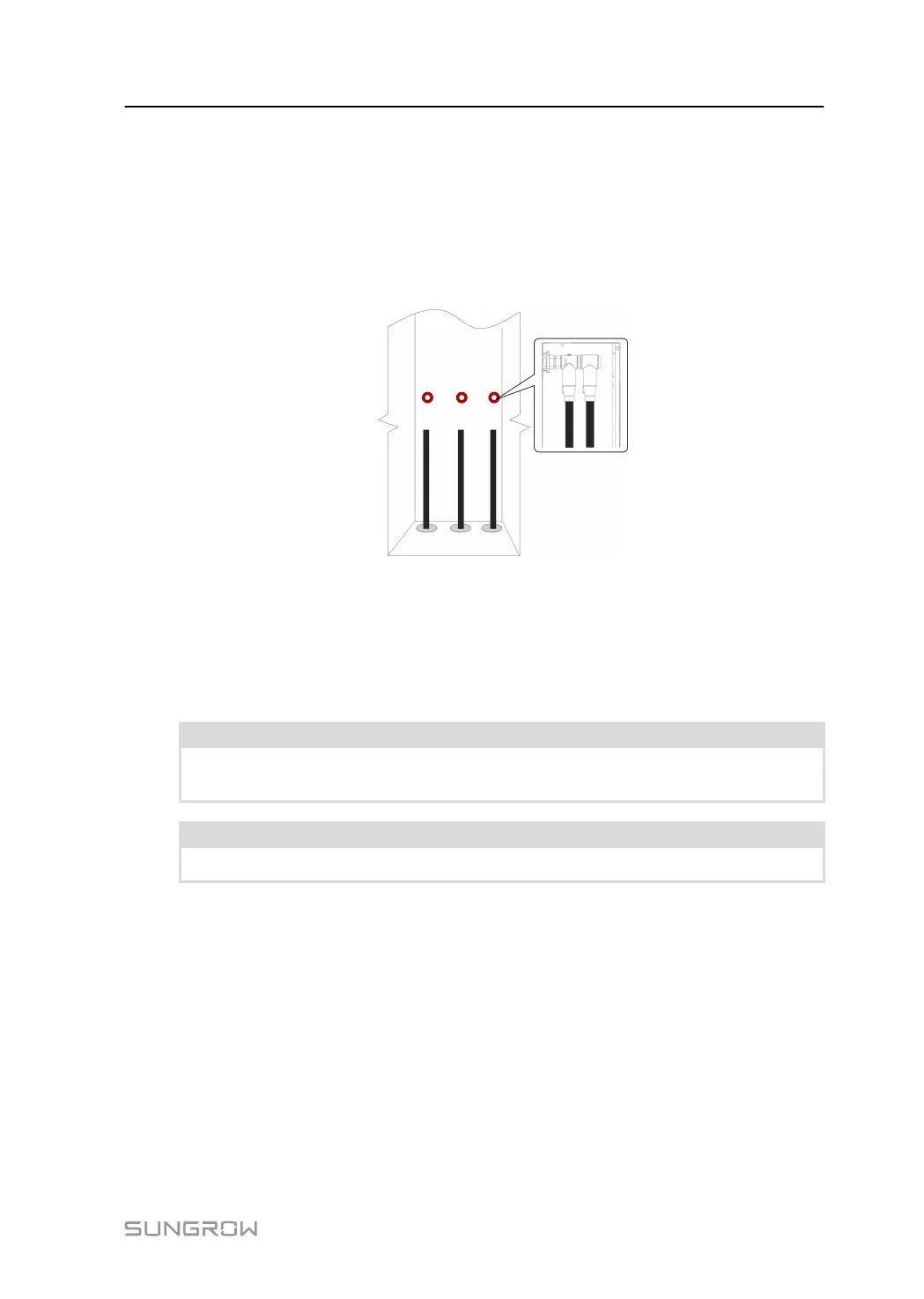

Single-core cables
If single-core cables are used, secure the three phase cables using cable clips, as shown in
the figure below.
System Manual 6 Electrical Installation
45
