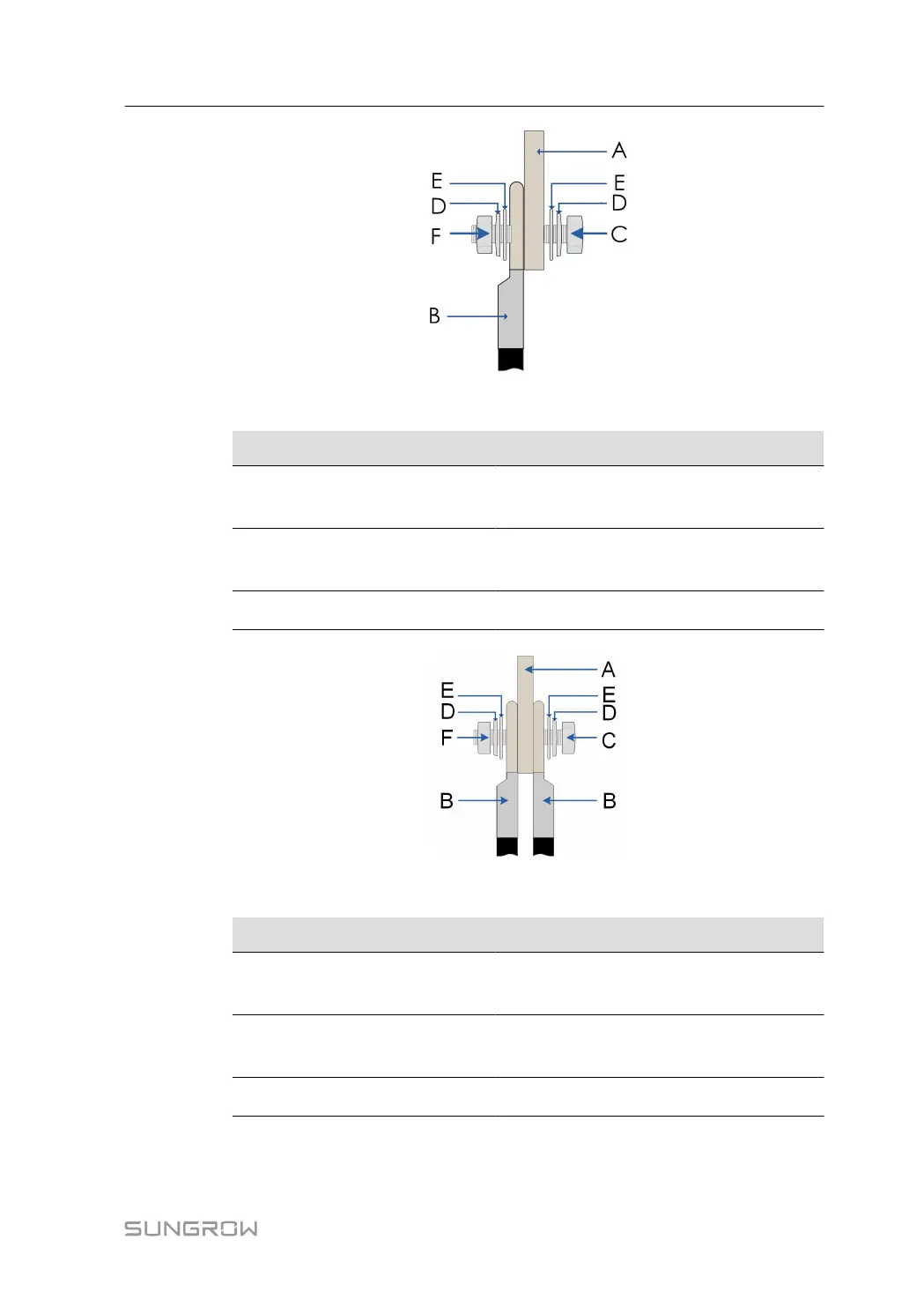

Figure 6-9 Single Side Aluminum Wire Connection
No. Name No. Name
A Copper bus D
M12 Spring
washer
B
Copper-aluminum
adapter terminal
E M12 Flat washer
C M12×40 Bolt F M12 Nut
Figure 6-10 Double Side Aluminum Wire Connection
No. Name No. Name
A Copper bus D
M12 Spring
washer
B
Copper-aluminum
adapter terminal
E M12 Flat washer
C M12×45 Bolt F M12 Nut
c. Fasten the bolts with screwdriver or spanner. For the M12 bolts, the fastening torque is
60~70N.m.
System Manual 6 Electrical Installation
43
