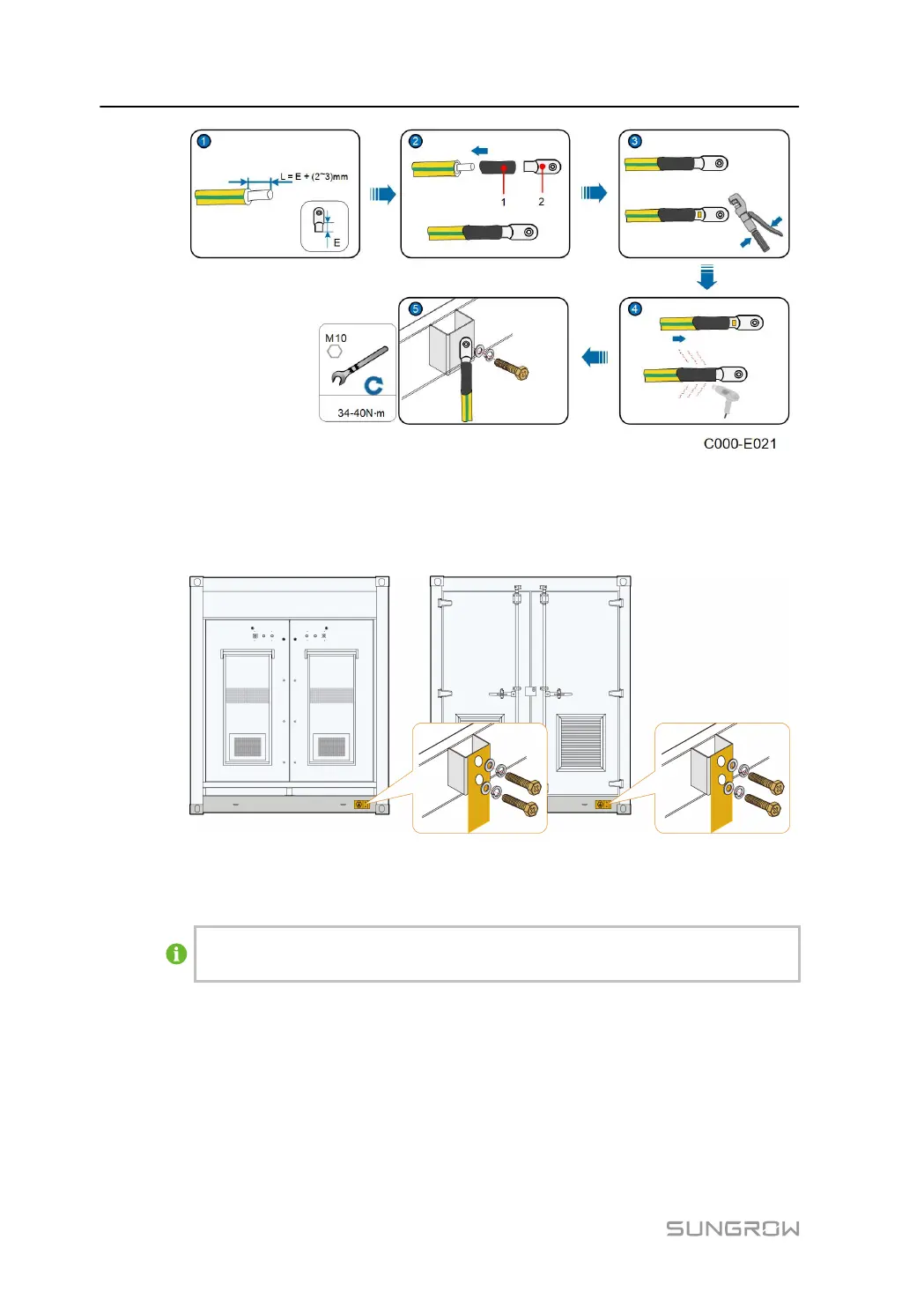

Figure 6-1 Grounding Cable
• Weld the grounding steel flat onto the external grounding point, after which anti-
corrosion processing needs to be performed. After the wiring is completed, it needs to
spray paint and anti-corrosion treatment on the welding area.
Figure 6-2 Grounding Flat Steel
It is recommended that two points of the MV Station should be connected to the ground
system of the PV plant.
The MV Station needs to be grounded on site. The following operations should also
be conducted on site:
Measure the electrical conductivity between the device ground terminals and the total
equipotential connection copper bar to ensure the effectiveness of the internal ground
connection.
Perform the external grounding according to on-site situation and instructions of the plant
staff.
The grounding resistance should be no more than 4Ω.
System Manual6 Electrical Installation
36
