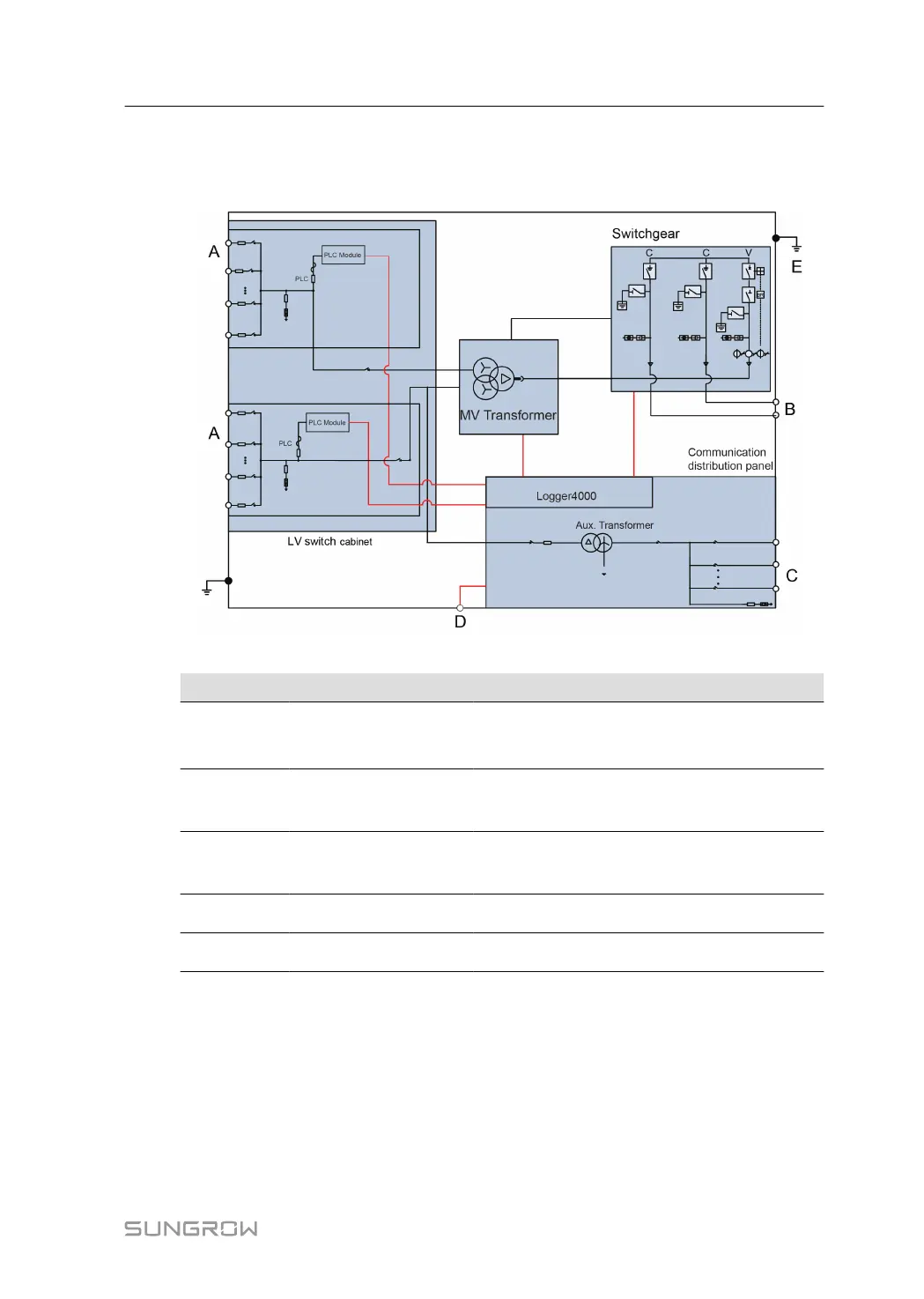

6.2 Circuit Diagram
The circuit diagram is as follows.
Table 6-1 Items in figure
Item Name Recommended specifications
A
Connect to the
inverter
Single splicing Max. 400 mm
2
aluminum wire
Double splicing Max. 185 mm
2
aluminum wire
B Connect to MV grid
Depends on the switchgear type. Specifically,
refer to the corresponding manual.
C
Power distribution
port
—
D Communication port —
E Grounding point —
6.3 Preparation before Cable Connections
6.3.1 Installation Tools
Installation tools include but are not limited to the following recommended ones, and other
auxiliary tools or components can be used on site when necessary.
System Manual 6 Electrical Installation
33
