Replace top fans
1. Open the front door of the LV cabinet, unscrew the fixing bolts on the air baffle, and take
down the air baffle.
2. Unscrew the fixing bolts on the fan cover plate, and take down the cover plate.
3. Unscrew the fixing screws on the fan, disconnect the wiring terminals, and take out the
fan from the fixing hood.
4. Install the new fan into the LV cabinet, by completing the above steps in reverse.

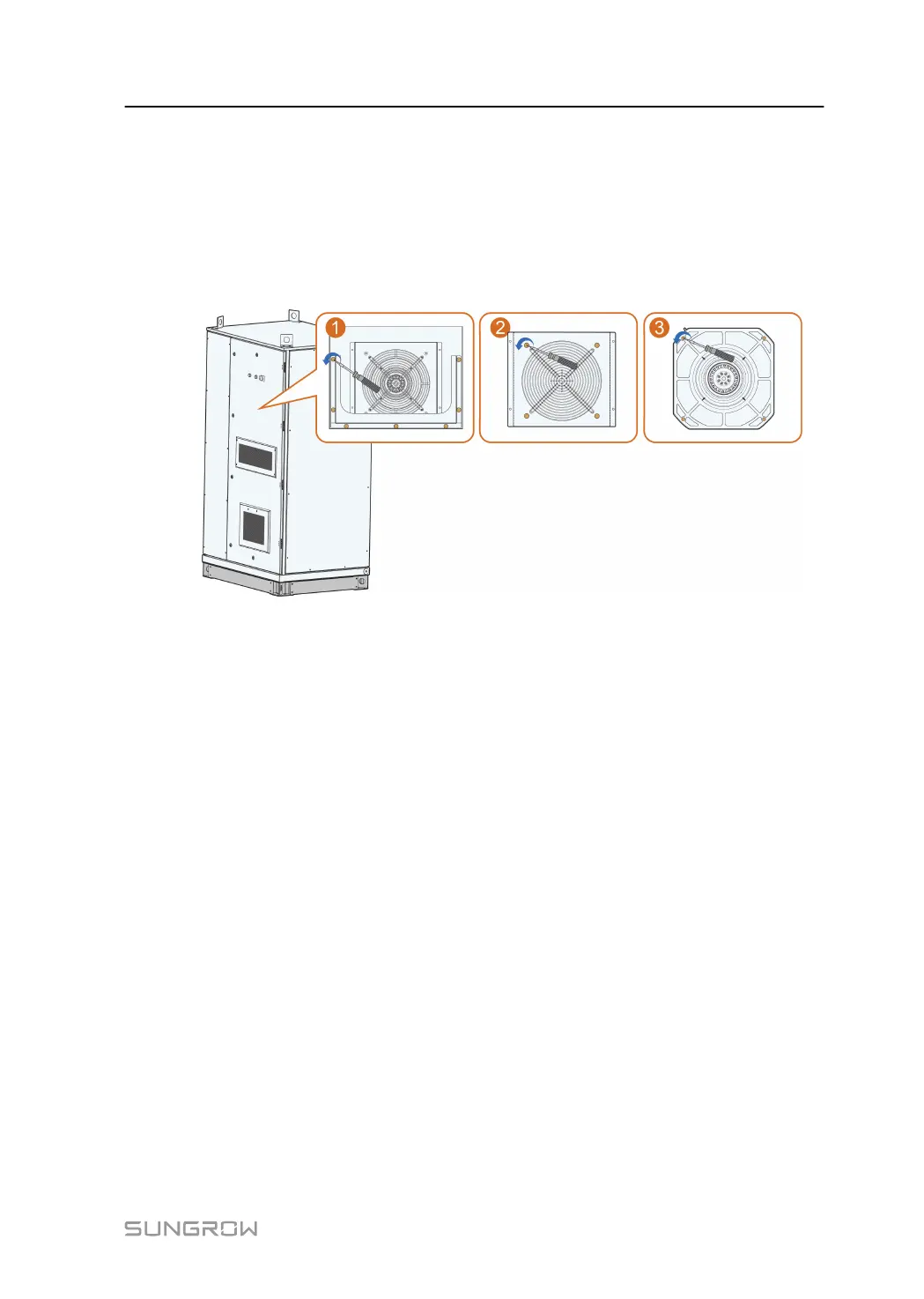

Replace bottom fans
1. Unscrew the fixing bolts on the sieve plate, and take down the sieve plate and the
dustproof cotton.
2. Unscrew the fixing bolts on the grid plate, and take it down.
3. Unscrew the fixing screws on the fan fixing plate, disconnect the fan wiring terminals,
and take out the fan fixing plate.
4. Remove the fan fixing bolts, and take out the fan.
5. Install the new fan into the LV cabinet, by completing the above steps in reverse.
System Manual 9 Routine Maintenance
83
