No. Name Description
E
MV side cable
entries
All MV side cables connecting the MV Station go
inside through these entries.
3.4 Internal Design
3.4.1 LV Cabinet
The LV cabinet is located at the LV room inside the MV Station. It is used to converge and
transmit low voltage from the inverter to the step-up transformer, and feed it into the MV
grid.

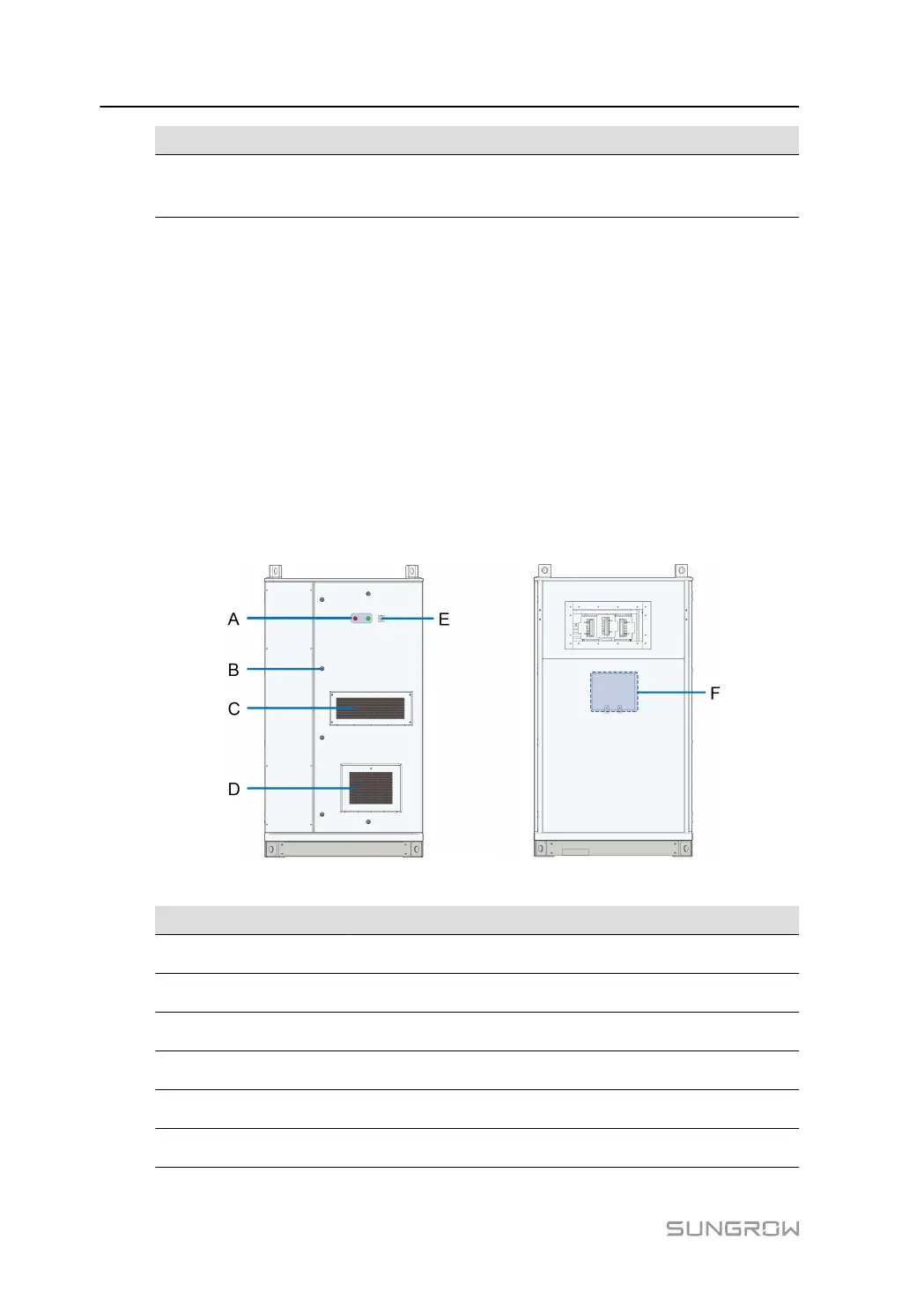

Appearance
The LV cabinet is located at the LV room inside the MV Station. It is used to converge and
transmit low voltage from the inverter to the step-up transformer, and feed it into the MV
grid.
The figure above is indicative only, and actual product may differ.
No.
Name
A ACB control switch button
B Door lock, support for padlocks
C Air outlet area
D Air inlet area
E Remote/Local switch button
F Pressure relief door
System Manual3 Product Description
