WALL CLEARANCES
All units must be installed in accordance to minimum rear and side wall clearance
and clearances extended vertically above cooking top which are stated on the serial
plate. (The serial plate is located below the cooktop.)
ANY OPENINGS IN THE WALL BEHIND THE UNIT AND IN THE FLOOR UNDER
THE UNIT MUST BE SEALED.
Note. Due to potential hazards it is recommended that storage cabinets not be
installed above the cooking surface.
IN THE EVENT OVERHEAD CABINETS ARE INSTALLED, THE MAXIMUM
DEPTH OF CABINETS INSTALLED ABOVE COOKING TOPS SHOULD BE 13''.
FOR “ISLAND” CABINET INSTALLATION, THE MINIMUM ALLOWABLE
HORIZONTAL CABINET SURFACE BEHIND THE APPLIANCE IS 1”.

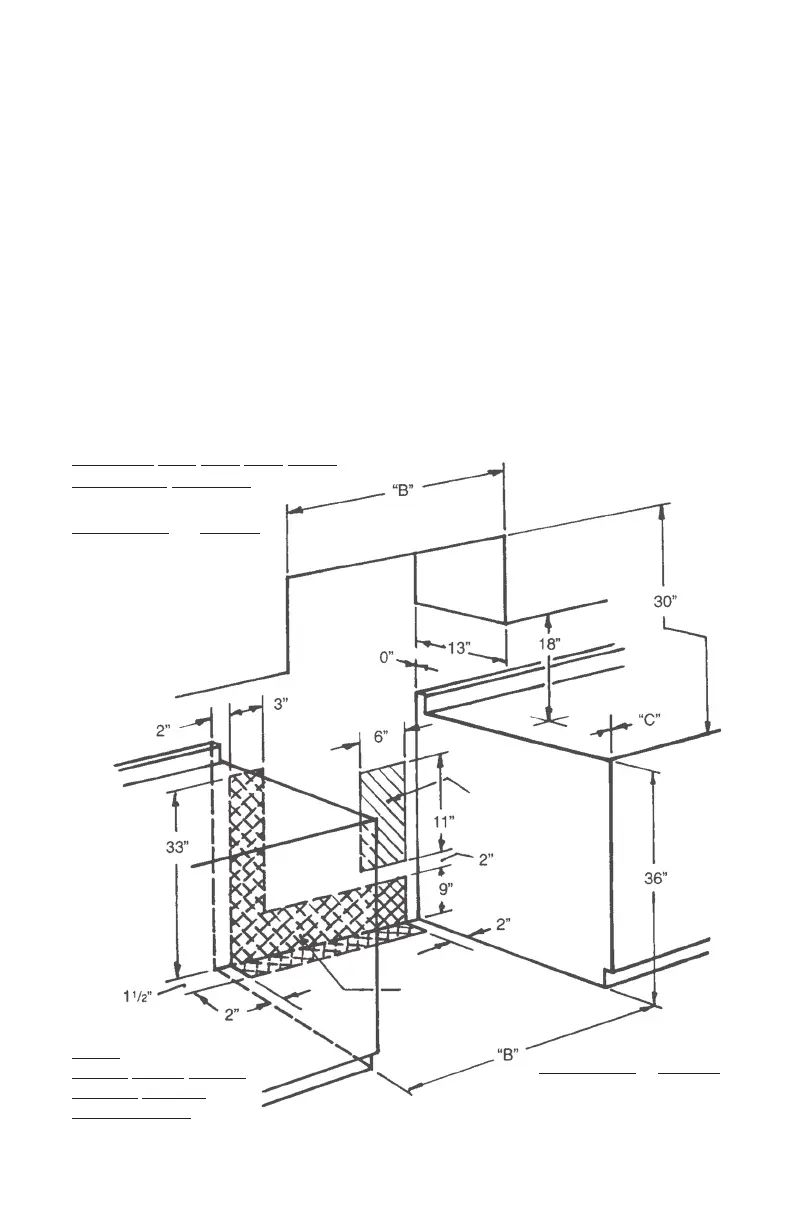

CABINET CUT OUT FOR FREE-
STANDING MODELS
RANGE SIZE "B" DIM.
20" 20
3
/
8
"
24" 24
3
/
8
"
30" 30
3
/
8
"
36" 36
3
/
8
"
RANGE SIZE "C" DIM.
20" 2"
24" 2"
30" 3"
36" 3"
RECOMMENDED
ELECTRICAL
CONNECTION
AREA
GAS HOOKUP
AREA
NOTE!
CHECK LOCAL CODES
BEFORE MAKING
CONNECTIONS
