20
ALIGNMENTS AND ADJUSTMENT, Continued
IF THE OVEN BURNER DOES NOT IGNITE WITHIN 20 TO 60
SECONDS AFTER THE PILOT IS LIGHTED, TURN THE OVEN
TEMPERATURE CONTROL TO OFF AND WAIT FOR POWER TO BE
RESTORED. DO NOT ATTEMPT TO RELIGHT THE PILOT AGAIN.
If the oven does not function properly when the power is restored, or at any other time, call
a serviceman to determine the source of the problem. DO NOT ATTEMPT TO SERVICE
THE RANGE YOURSELF.
NEVER LEAVE THE CONTROL KNOBS IN ANY POSITION OTHER THAN
“OFF” IF THE IGNITORS OR BURNERS AREN’T WORKING PROPERLY.
7. Automatic Oven Safety Valve
The orice hood on the oven safety valve regulates the ow of gas to the oven burner.
This valve adjusts in the same manner as the top burner valves and is located at the base
of the oven burner in the broiler compartment of the range. To gain access, simply
remove the broiler section. When set for LP, the orice hood is screwed snugly on the
valve. To adjust for use on Natural Gas, unscrew the orice hood until the proper ow
of gas is obtained.
8. Oven Burner Air Shutter Adjustment
The oven burner ame should be a clean, blue ame with distinct inner cones
approximately 1/2 inch long. A soft, lazy ame with indistinct comes means too much
gas or not enough air. A noisy lifting ame means too much air. If adjustments are
necessary you must rst loosen the lock screw located at the top of the air shutter, then
rotate the air shutter to the correct setting, and retighten screw.
Oven burner ame can be checked as follows (without burner bafe in place):
• To correct a yellow ame-Increase size of air shutter opening.
• To correct a lifting, but distinct, blue ame-Decrease size of air shutter opening.
The air shutter should be set approximately 2/3 open for natural gas, and approximately
full open on LP gas.
The oven burner air shutter adjustment is the same on ranges with a gas pilot or electric
ignition.

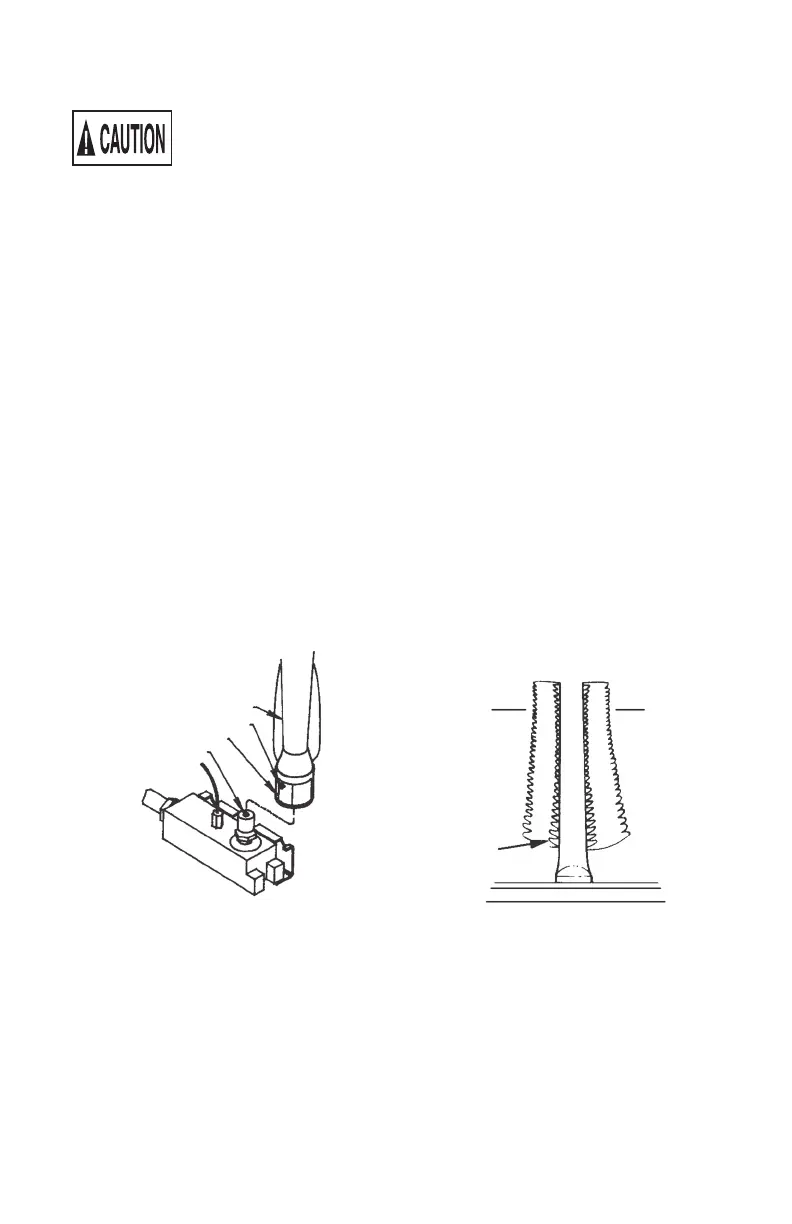

OVEN SAFETY VALVE
OVEN BURNER
OVEN BURNER
LOCK SCREW
AIR SHUTTER
ORIFICE
1/2" CONE
