2" (50) Wide
Wooden Spacer
Power Plug
Hole Cut Out 1" x 1"
(25 x 25) Min.
Min.
Gas Connection
Hole Cut Out 2" x 2"
(50 x 50) min.
Min.
(600)
Min.
20"
(508)
(if necessary)
22.20"
(564)
23.23"
(590)
23.43"
(595)
21.81"
(554)
23.62"
23.43"
(595)
23.03"
(585)
22.05"
(560)
22.83"
(580)
18.50"
(470)
Min.
23.62"
(600)

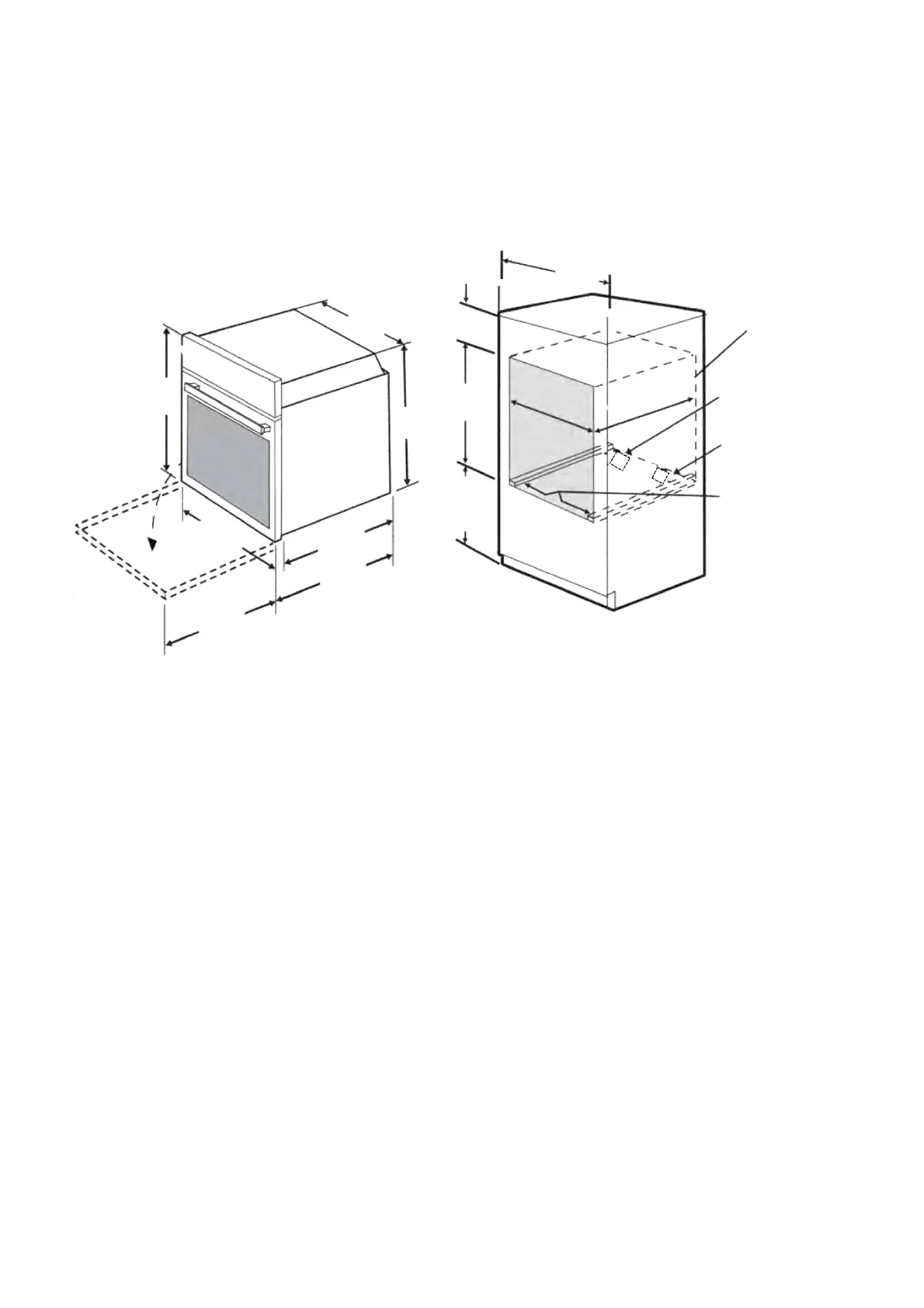

Wall Oven Installation
2" (50)Min.
Return to Board
12"
(305)
Oven Door
NOTES:
• Ensure a minimum clearance of 18½" (470 mm) in front of the oven to accommodate the full depth of the door
when open.
• A cutout depth of 23⅝" (600 mm) is required for proper installation of the built-in oven. If the oven trim does not fit
snugly against the cabinet or if you hear noise from convection models, verify that the cutout depth is at least 600
mm.
• If the cutout height exceeds 23⁷⁄₁₆" (595 mm), install a 2" (50 mm) wide wood block of appropriate height on each
side of the opening, positioned under the side rails of the oven.
• The minimum vertical clearance between the floor and the bottom of the cutout opening must be 4" (102 mm).
• Cut out the holes for the gas connection and the power plug into the base before installing the oven.
INSTALLATION
EN - 7
