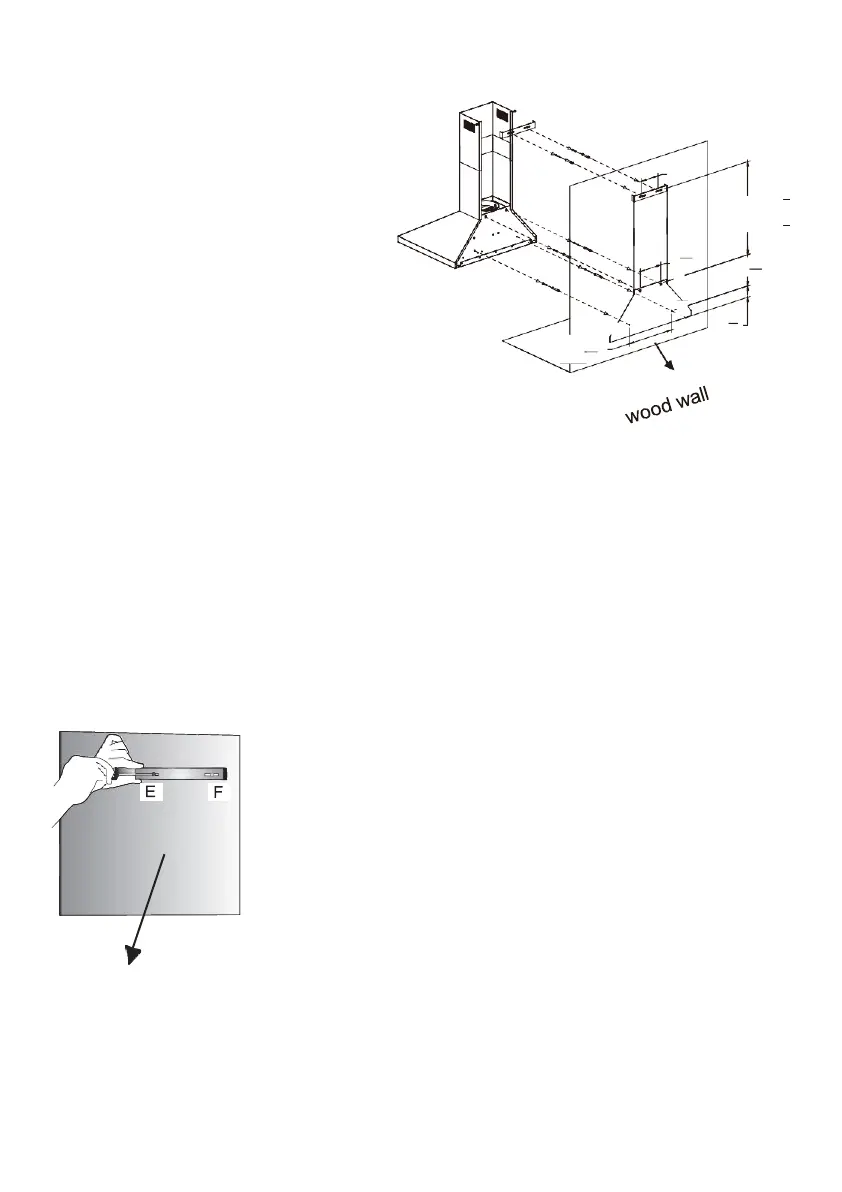

INSTALLING THE RANGE HOOD ON THE
WALL
A)
DRILLING OF HANGING HOLES
Confirm the installation position of the
hood and install it according to the
Figure at right.
Open the holes on A, B,C,D points with
6
”
F
E
MAX 25
5
”
MIN18
1
”
Ø 8mm sized drill bit.
Open holes at points E and F with a
Ø 8mm sized drill bit in order to screw
chimney assembly parts
Refer to the chimney installation
dimensions to fix the position of the
chimney bracket.
B)
SCREWING OF WALL PLUGS
Screw the Ø 8mm sized wall plugs
into A, B,C,D holes for hanging screws.
Screw the Ø 8mm sized wall plugs into
E, F holes for chimney mounting parts.
C)
SCREWING OF HANGING SCREWS
Screw the hanging screws into Ø 8mm
sized wall plugs in A, B holes.
There must be 5mm distance between
the screw head and the wall.
A
C
12
3
”
1
16
11
B
16
D
2
3
”
Screw the chimney mounting parts into Ø 8mm sized wall
plugs on E,F points which are provided with your product.
wooden wall
Chimney Mounting
Plate
