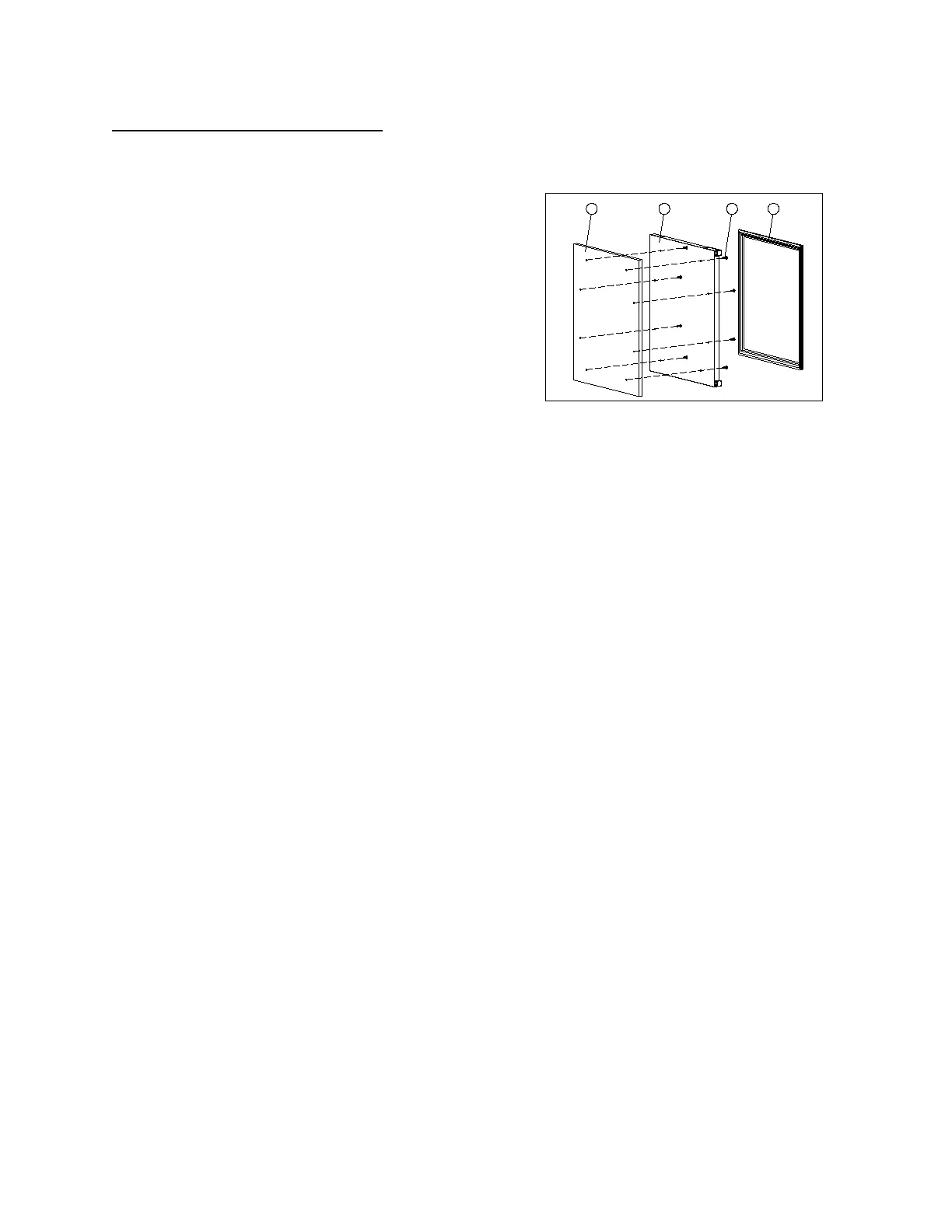

Door Panel Installation Method 2:
This method will leave the panel flush with the door but will require some drilling into the unit’s door.
1. Peel off the gasket (4) and remove the handle by
removing the two screws that attach the handle to
the door.
2. Drill the 8 holes shown by using a 3/16” drill bit
inside the door groove on the four sides of the door
front (2).
3. Cut the overlay panel (1) with a thickness of 3/4” to
the dimensions corresponding to your model. The
height of the panel should be 1mm [3/80”] more
than the height of the door and the width of the
panel should be 4mm [5/32”] more than the width
of the door.
4. Attach the handle to the overlay panel by using the
flat head screws and drive the screws flush with the
panel.
5. Then attach the overlay panel to the door face using the 8 wood screws #10x2 (ST4x50) (3) and
through the 8 existing holes inside the door groove.
6. Reinstall the gasket.
1 2
3
4
