14

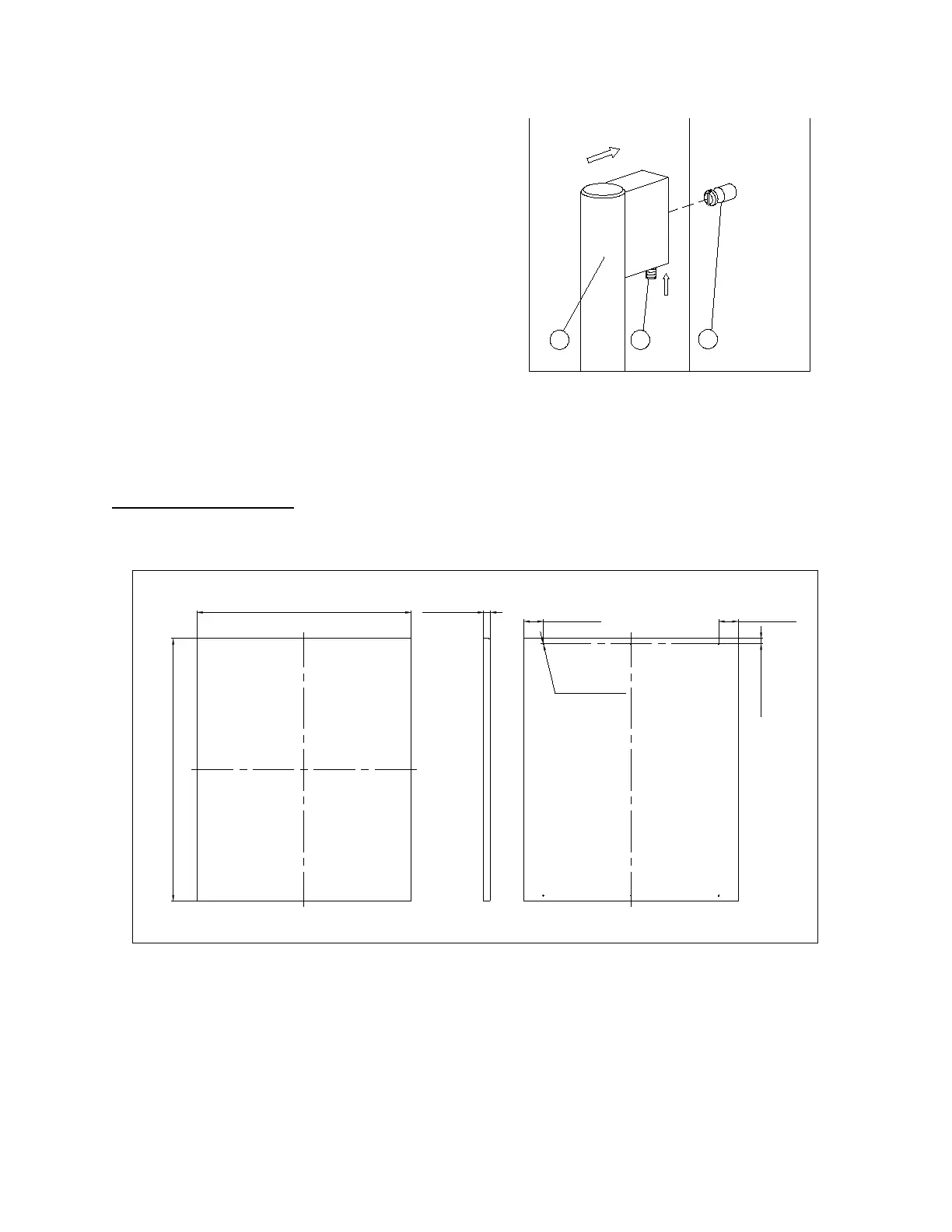

Installing a Stainless Steel Handle
This appliance includes a stainless steel handle that
is not required to operate the unit. To install the
handle, follow the instructions below:
Place the handle (1) over the mounting stub (3) of the
door and using the supplied Allen key, tighten the
securing grub screws (2) to affix the handle.
Full Overlay Panel Installation Instructions
An overlay panel covers the stainless steel to give an integrated appearance. The overlay panel and
appropriate hardware are not included with the unit and the end user needs to provide it. We are
providing two installation methods, choose the one you feel is the most appropriate to your needs.
Please follow the instructions below for installation:
Door Panel Preparation
Prepare the overlay panel to the dimensions as per the descriptions given below. Then attach the
handle to the overlay panel by using the flat head screws and drive the screws flush with the panel.
H
54mm [2 1/8"]
14.5mm [37/64"]
19mm [3/4"]
W
6-§ ¶2.5mm [§ ¶1/10'']
6mm[15/64''] DEEP
54mm [2 1/8"]
NOTE:
1. H = Height of door + 1mm [3/80”], W = Width of door + 4mm [5/32”].
2. The weight of the overlay panel should not exceed 7 kilograms.
3. It is important to ensure that all drilled holes are drilled to the correct depth to avoid splits in the
wood when the hardware is installed.
1
2
3
