Models ALBV15 / SCR1536BG / SCR2464 / SCR610BL / SCR610BLSD / SCR611GLOS

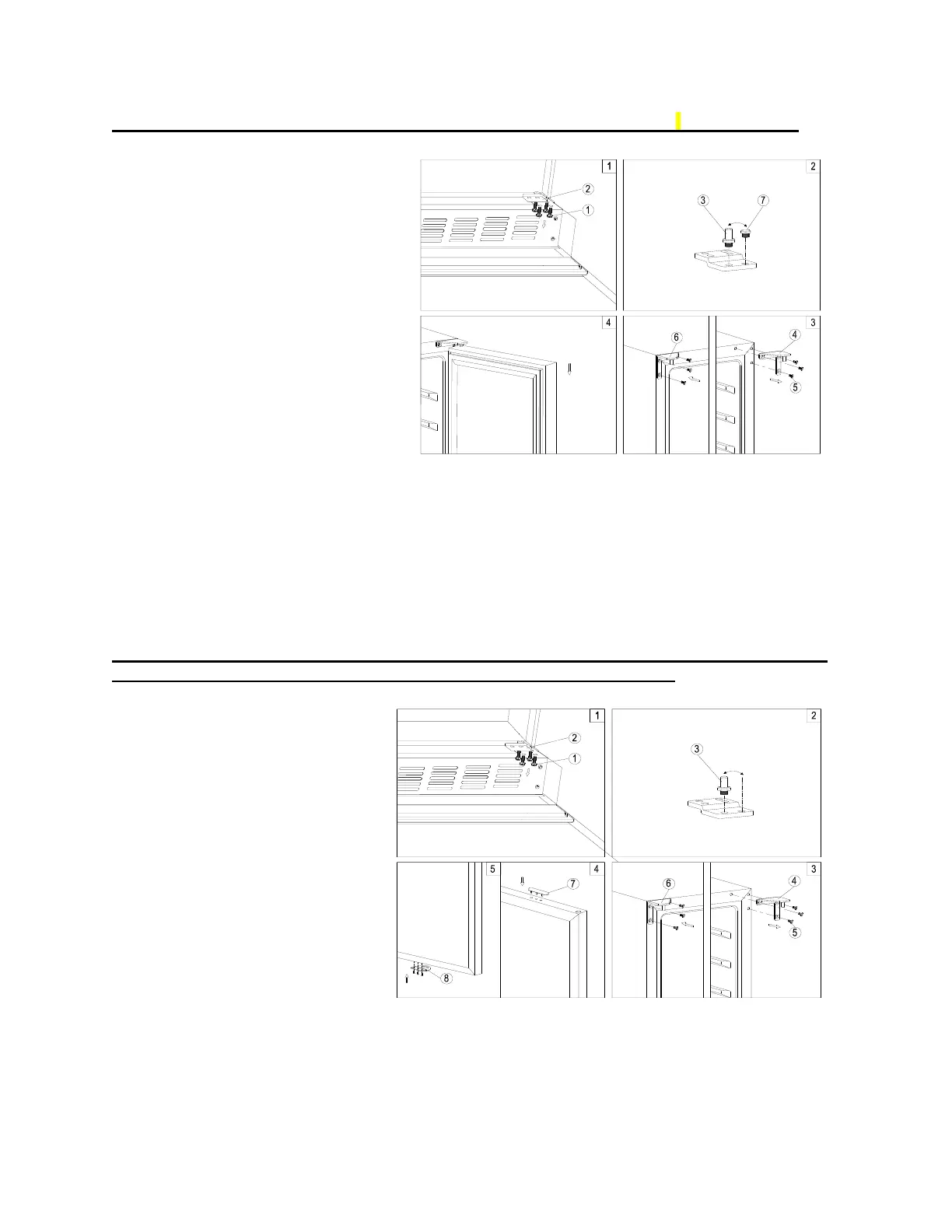

1. Remove the bottom hinge (2) by
unscrewing the four lock screws
(1). Hold the door firmly after
removing the screws. (Fig. 1)
2. Gently pull down to remove the
door from the right top hinge and
place it on a padded surface to
avoid the risk of damage. Then
remove the right top hinge (4).
(Figs. 3 & 4)
3. Unscrew and transfer pins (3)
and (7) of the hinge plate to the
opposite side. (Fig. 2)
4. Pop out the cover caps on the left
side of the cabinet and use them
to cover the screw holes on the
right-hand side.
5. Screw the alternative left top hinge (6), included in the fittings, on the left hand side of the
cabinet. (Fig. 3)
6. Relocate the door to the designated position. Then screw the bottom hinge assembly on the
left designated position and tighten it after the door is leveled.
7. Remove the handle from the left side of the door and install it on the right side. (See Installing
the Stainless Steel Handle.)
Models AL57G / ASDG1521 / LABV15442 / ADBV1551 / SDG1526 / LBV1546 / SDBV1555 /
ASDG2411 / LABV2430 / ADBV2441 / SDG2415 / LBV2434 / SDBV2445
1. Remove the bottom hinge (2)
by unscrewing the four lock
screws (1). Hold the door firmly
after removing the screws.
(Fig. 1)
2. Gently pull the door down to
remove it from the right top
hinge. Then remove the right
top hinge (4). (Fig. 3)
3. Unscrew and transfer the
hinge pin (3) of the hinge plate
to the opposite side. (Fig. 2)
4. Pop out the cover caps on the
left side of the cabinet and use
them to cover the screw holes
on the right-hand side.
5. Screw the alternative left top
hinge (6), included in the fittings, on the left-hand side of the cabinet. (Fig. 3)
6. Unscrew and transfer the hole cover (7) and lock catch (8) to the opposite side of the glass door.
(Fig. 4)
7. Rotate the door 180° and relocate it to the designated position. Then screw the bottom hinge
assembly on the left designated position and tighten it after the door is leveled.
