13
Door Panel Installation Option 1: (using bracket kit provided)
This is an easier installation option that does not require drilling into the unit’s door.
NOTE: This option will leave a 3/16” (5mm) gap between the overlay panel and the top of door. The
stainless-steel trim (included in the kit) will fill this gap.
Installing the handle(s) on the overlay panel
If reusing the handle(s) that came with the unit:
1. Unscrew the studs located on the front face of the drawer and set them aside for later use.
2. Remove the screws from the drawer and proceed to mark their positions on the overlay panel by
using the handle as a guide.
3. Use a 3/16” (5mm) drill bit to the make the holes on the overlay panel for the screws.
4. Insert the screws, making sure to leave the head of the screw flush with the surface of the panel
(countersink screws if necessary).
5. Take the studs you saved in Step 1 and screw them back. They are now projecting from the face of
the panel.
6. Place the handle over the mounting studs and, using the supplied Allen key, tighten the securing
grub screws to fix the handle. Refer to “Installing a Stainless Steel Handle” (Refer to page 11).
If using a customer supplied handle(s):
1. Attach the handle to the overlay panel by using flat head or countersunk screws.

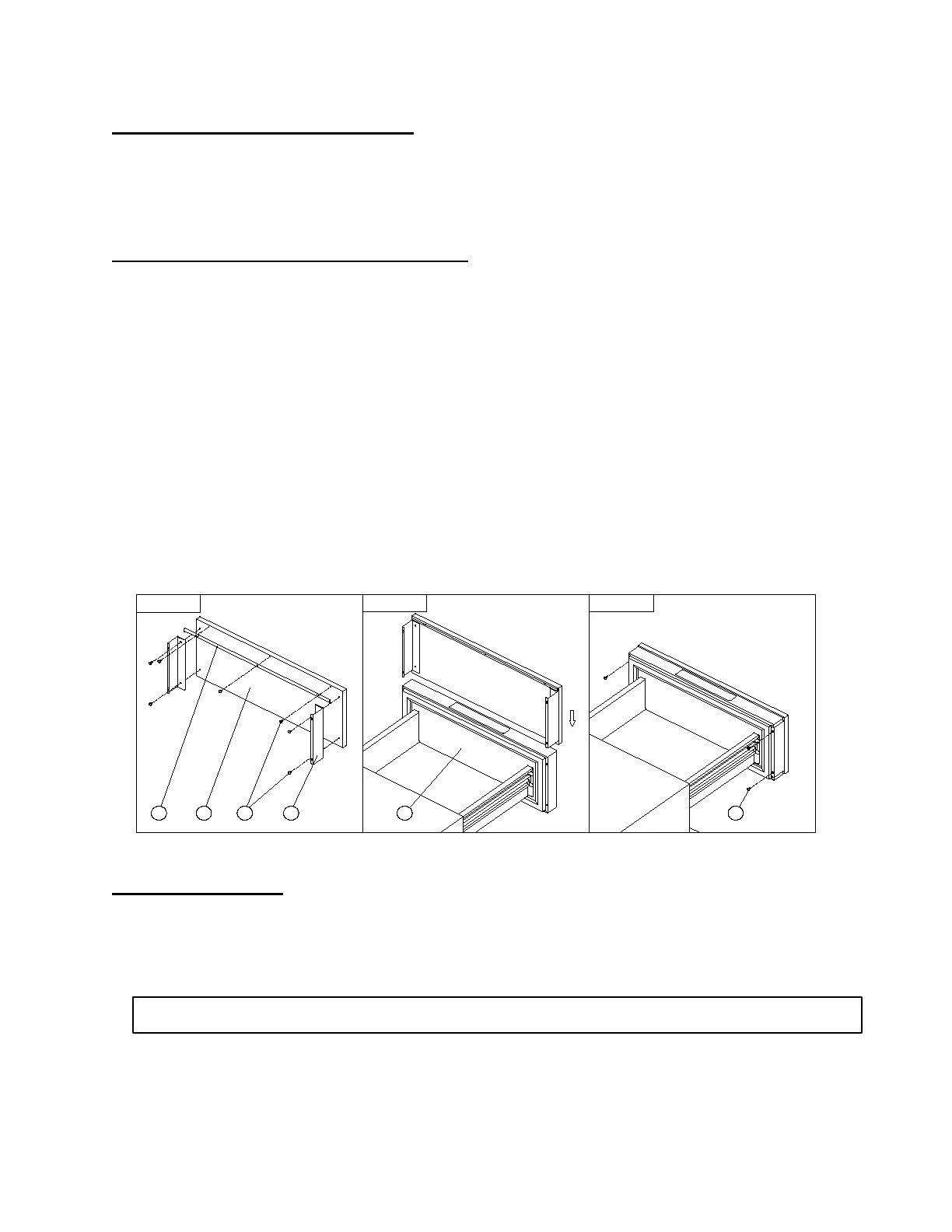

Figure 1
a
c
d
b
e
f
Figure 2 Figure 3
Installing the bracket
1. Attach the stainless trim (a) at the top of the wood overlay panel (b) with (3) #8 x 3/8 truss head
Phillips self-tapping screws (c). (see Figure 1)
2. Drill the 2 mounting brackets (d) on either side of the wood overlay panel with (4) #8 x 3/8 truss head
Phillips screws (c). (see Figure 1)
3. Align the brackets (d) with the sides of the unit door (e) gently sliding wood overlay panel into place.
(see Figure 2)
4. Drill (4) #8 x 3/8 pan head Phillips self-tapping screws (f) to secure the bracket to the door. (see
Figure 3)
Important: Tape over the head of the screws with a strong hold tape to prevent scratching the unit door.
