4 | Sub-Zero Customer Care 800.222.7820
The depth of each model is 23⁄" (587). Allow for panel
thickness when planning the finished opening depth. A
minimum 3⁄"
(89) finished return is required on all sides of
the opening. Framed cabinets require additional finished
filler material behind the face frame for a proper installa-

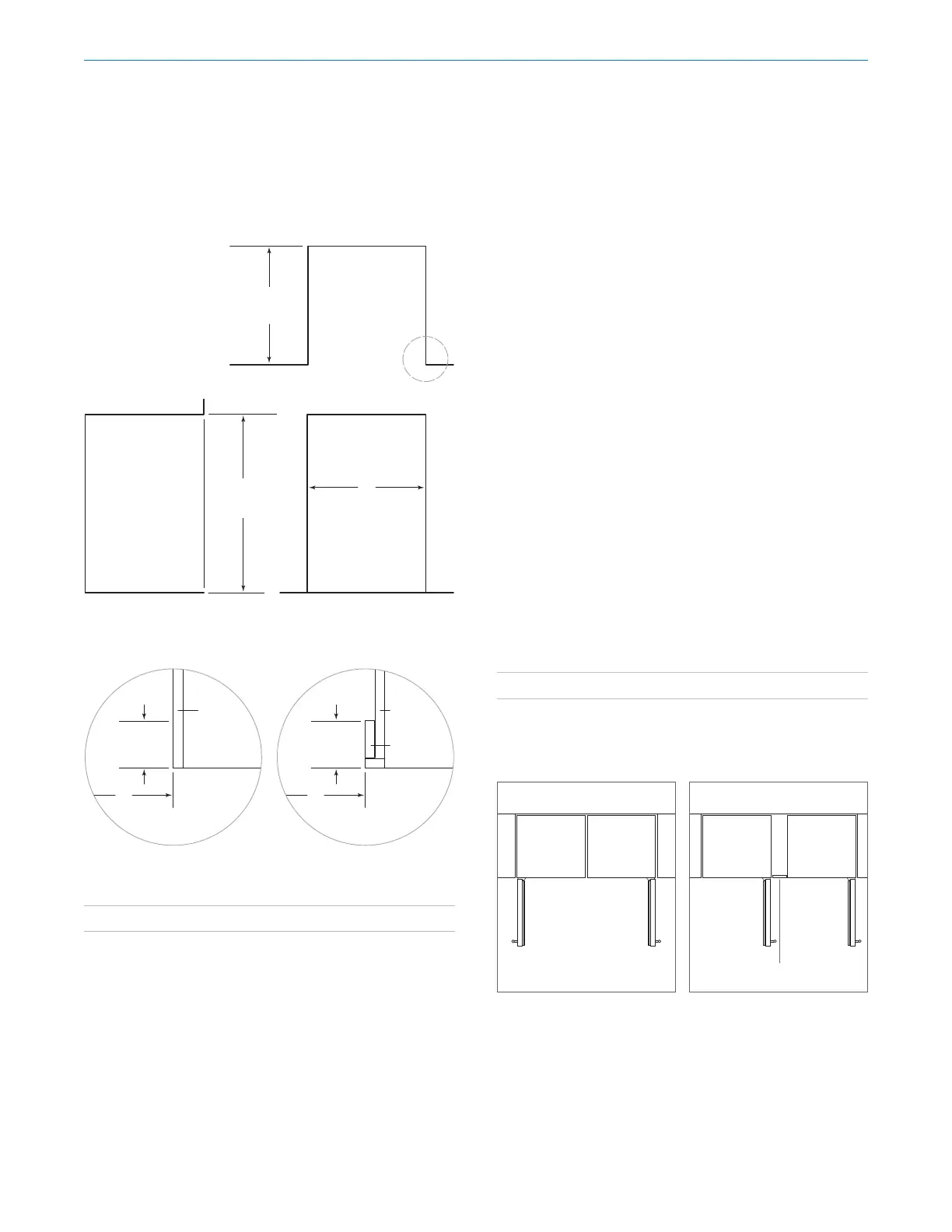

tion. Refer to the illustration.
DUAL INSTALLATION
If two units are installed side by side, a dual installation kit
may be required. Installations without a custom filler strip
require a dual installation kit. If a dual installation kit is not
specified, a 2"
(51) filler strip is recommended between the
units. Dual installations without a filler strip can only be
accomplished using two units with opposite hinges. Refer
to the illustrations below.
Dual installation kits are available through an authorized
Sub-Zero dealer. For local dealer information, visit the find
a showroom section of our website, subzero.com. For
questions regarding the installation, call Sub-Zero Cus-
tomer Care at 800-222-7820.
DUAL OPENING WIDTH W
Two 24" Models 48" (1219)
Dual installation kit required.
Site Preparation
Opening Dimensions
DESIGNER SERIES UNDERCOUNTER MODELS
W
OPENING WIDTH
H
OPENING
HEIGHT
TOP VIEW
SIDE
VIEW FRONT VIEW
NOTE:
3
1
/2" (89) finished returns will be visible and should be finished to match cabinetry.
3
/4" (19)
TYPICAL
FRAMED
CABINETRY
W
FILLER
3
1
/2" (89)
FINISHED
RETURN
FRAMELESS
CABINETRY
W
3
/4" (19)
TYPICAL
3
1
/2" (89)
FINISHED
RETURN
24" (610)
OPENING
DEPTH
WITHOUT FILLER STRIP
FILLER STRIP
Opposite hinges
Same side hinges
OPENING DIMENSIONS W H
24" Model 24" (610) 34⁄" (876)
