Overlay / Flush Inset Panels

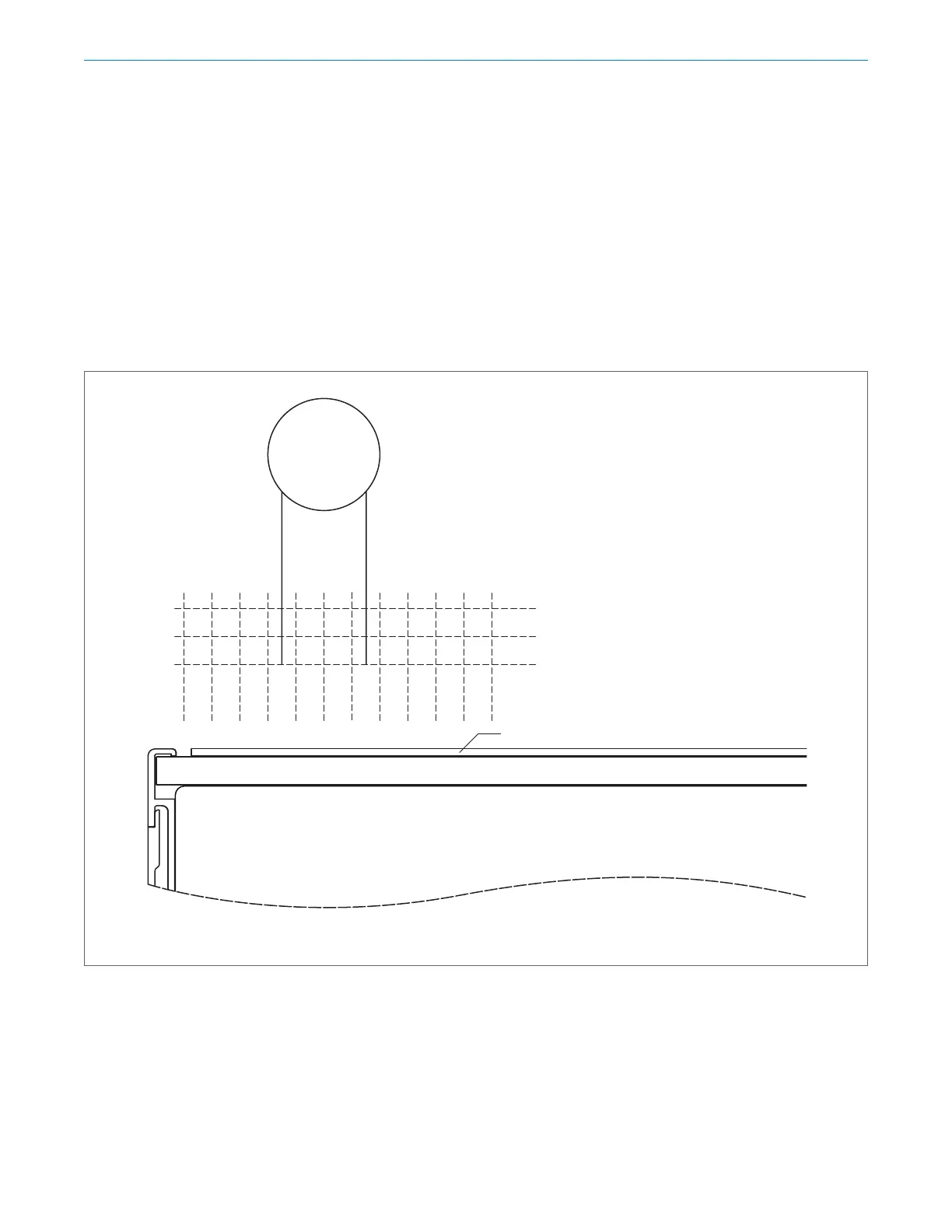

FULL-SCALE TEMPLATE
Overlay and flush inset panels must be a minimum of 3/4"
(19) thick to support mounting the handle. Panel thickness
does not include the backer and spacer panels. Mount the
handle close to the opening edge of the door.
Overlay and flush inset panel thickness
1
/4" (6) BACKER PANEL
DOOR
DEPTH OF TUBULAR
AND PRO HANDLES
1"
(25)
3"
(76)
1
1
/4" (32) PANEL
1" (25) PANEL
3
/4" (19) PANEL
2"
(51)
.10" (3) SPACER PANEL
Classic Series Refrigeration
