Dual Installation
DUAL WIDE GRILLE
A dual wide grille spans the entire width of both units in a
dual installation and is a part of a dual installation kit.
For overlay and flush inset panel dimensions for the dual
wide grille, refer to the charts below.
DUAL WIDE GRILLE—OVERLAY
TWO 30" MODELS W H
Overlay Panel 60⁄" (1530) 7⁄" (197)
Spacer Panel 59⁄" (1508) 6⁄" (173)
Backer Panel 60" (1524) 7⁄" (189)
30" AND 36" MODEL W H
Overlay Panel 66⁄" (1683) 7⁄" (197)
Spacer Panel 65⁄" (1661) 6⁄" (173)
Backer Panel 66" (1676) 7⁄" (189)
TWO 36" MODELS W H
Overlay Panel 72⁄" (1835) 7⁄" (197)
Spacer Panel 71⁄" (1813) 6⁄" (173)
Backer Panel 72" (1829) 7⁄" (189)
DUAL WIDE GRILLE—FLUSH INSET
TWO 30" MODELS W H
Flush Inset Panel 61⁄" (1556) 7⁄" (197)
Spacer Panel 59⁄" (1508) 6⁄" (173)
Backer Panel 60" (1524) 7⁄" (189)
30" AND 36" MODEL W H
Flush Inset Panel 67⁄" (1708) 7⁄" (197)
Spacer Panel 65⁄" (1661) 6⁄" (173)
Backer Panel 66" (1676) 7⁄" (189)
TWO 36" MODELS W H
Flush Inset Panel 73⁄" (1861) 7⁄" (197)
Spacer Panel 71⁄" (1813) 6⁄" (173)
Backer Panel 72" (1829) 7⁄" (189)
Side Panel
The custom side panels must be a minimum of 24" (610)
deep and ⁄"
(13) thick. Routing will be necessary for the
side panel to fit flush against the side of the unit. Refer to
the illustrations below.
When installing a Classic Series unit with a custom side
panel, an accessory kit is required. Stainless steel side
panels are available through an authorized Sub-Zero
dealer. For local dealer information, visit the find a show-
room section of our website, subzero.com.
84"
(2134)
24" (610)
ROUT TO
3
/16" (5)
(OVER-AND-UNDER
MODELS)
OPTIONAL
TOE KICK
CUT-OUT
4" (102)
20
1
/2"
(521)
5
3
/4"
(146)
1
7
/8"(48)
1" (25)
4
1
/
4
"
(108)
ROUT TO
1
/8" (3)
FRONT
OF SIDE
PANEL
2
5
/8"
(67)
MAIN
FRAME
SIDE PANEL
ROUTING
1" (25)
1
7
/8" (48)
1
/8" (3)
1
/2" (13)

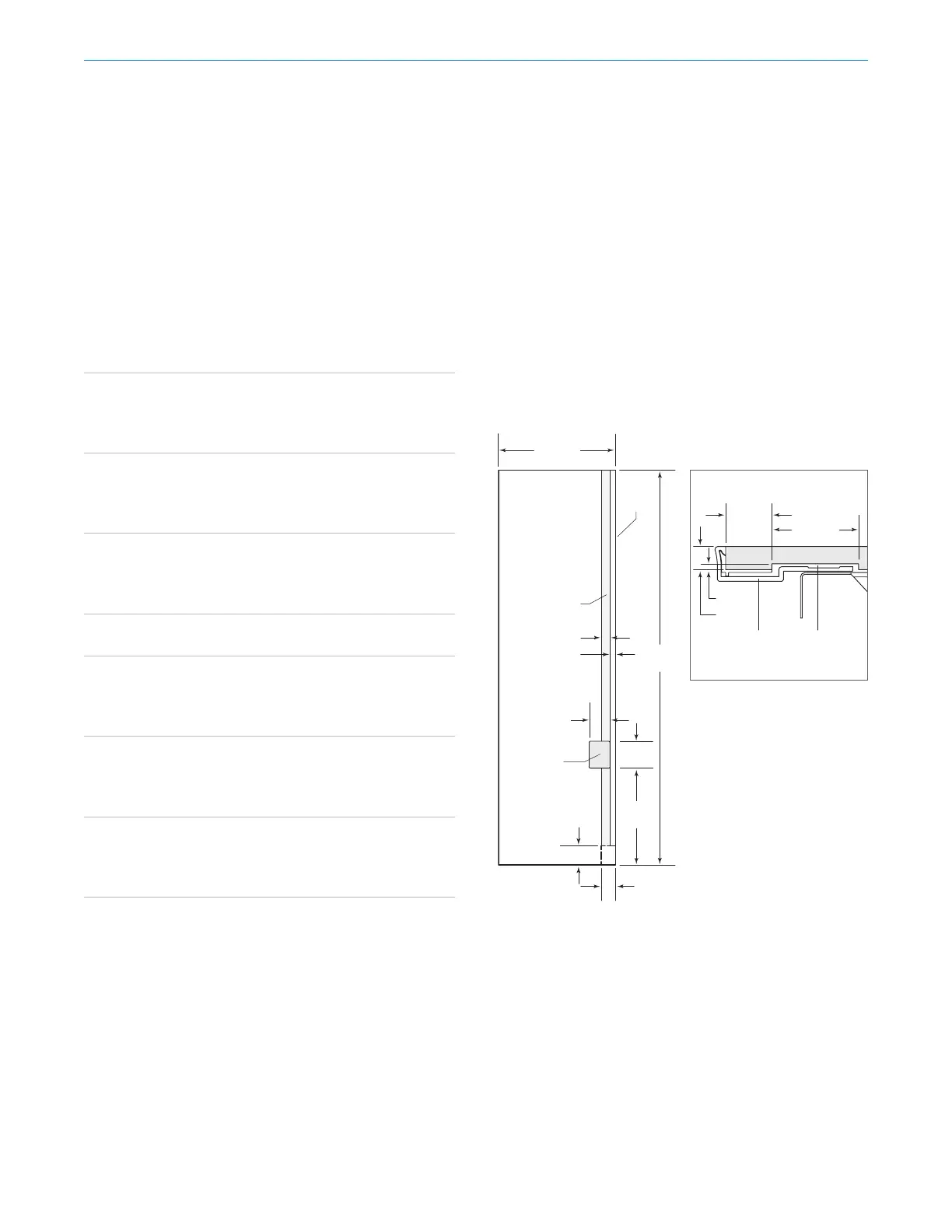

Side panel dimensions
Routing detail
Classic Series Refrigeration
