subzero.com | 13
Freezer Storage
ICE BIN
To remove the ice bin (over-and-under models):
1 Pull the freezer drawer open until it stops.
2 Lift the ice bin up and out. Refer to the illustration
below.
To remove the ice bin (side-by-side models):
1 Pull the ice bin forward until it stops.
2 Lift the ice bin straight up. Refer to the illustration
below.
3 To install, pull the carrier out and align the bottom of
the ice bin with the carrier.
4 Slide the ice bin back into position.

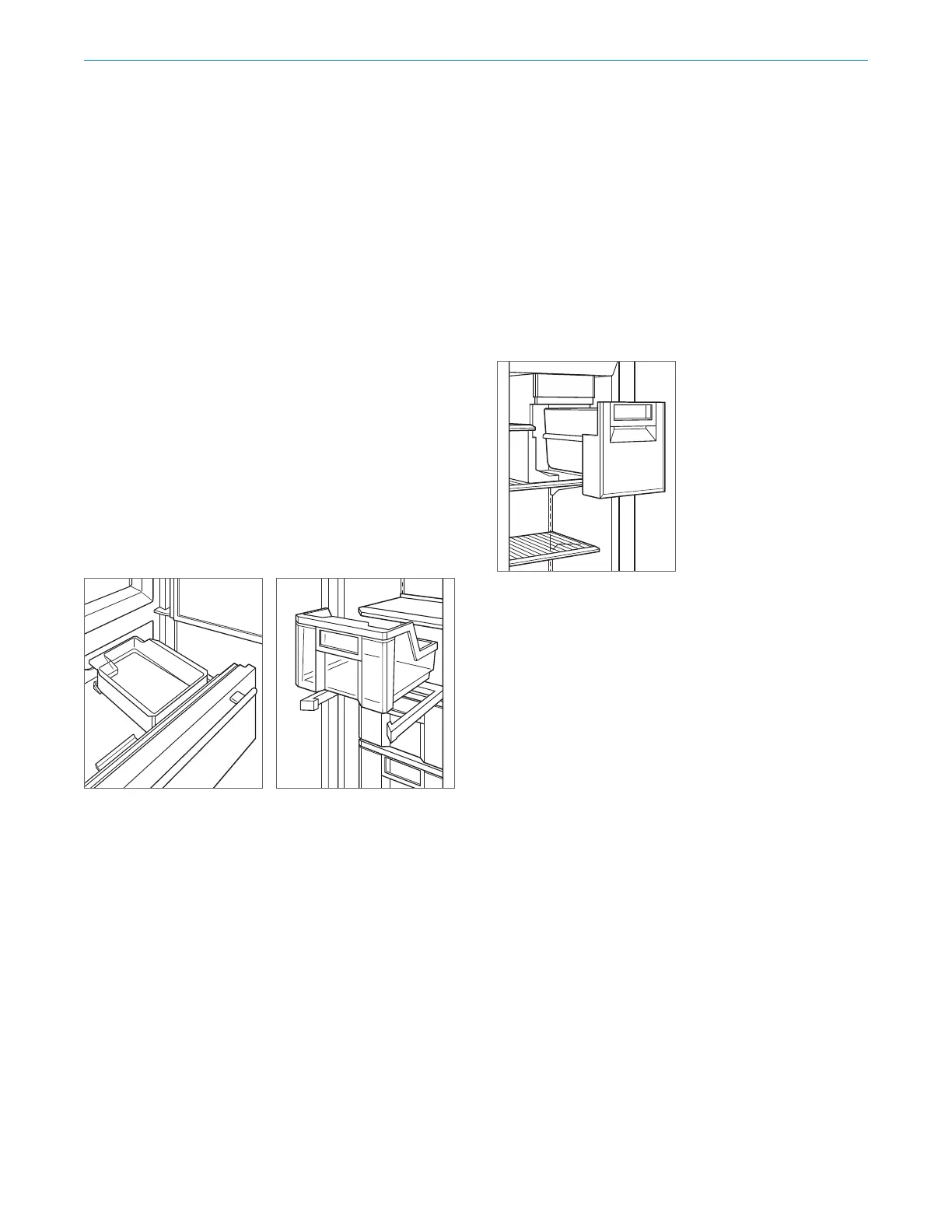

Over-and-under models
Side-by-side models
Storage
To remove the ice bin (side-by-side dispenser models):
1 Pull the ice bin forward until it stops.
2 Lift to clear the carrier assembly along the back, then
pull forward and out. Refer to the illustration below.
Side-by-side dispenser models
