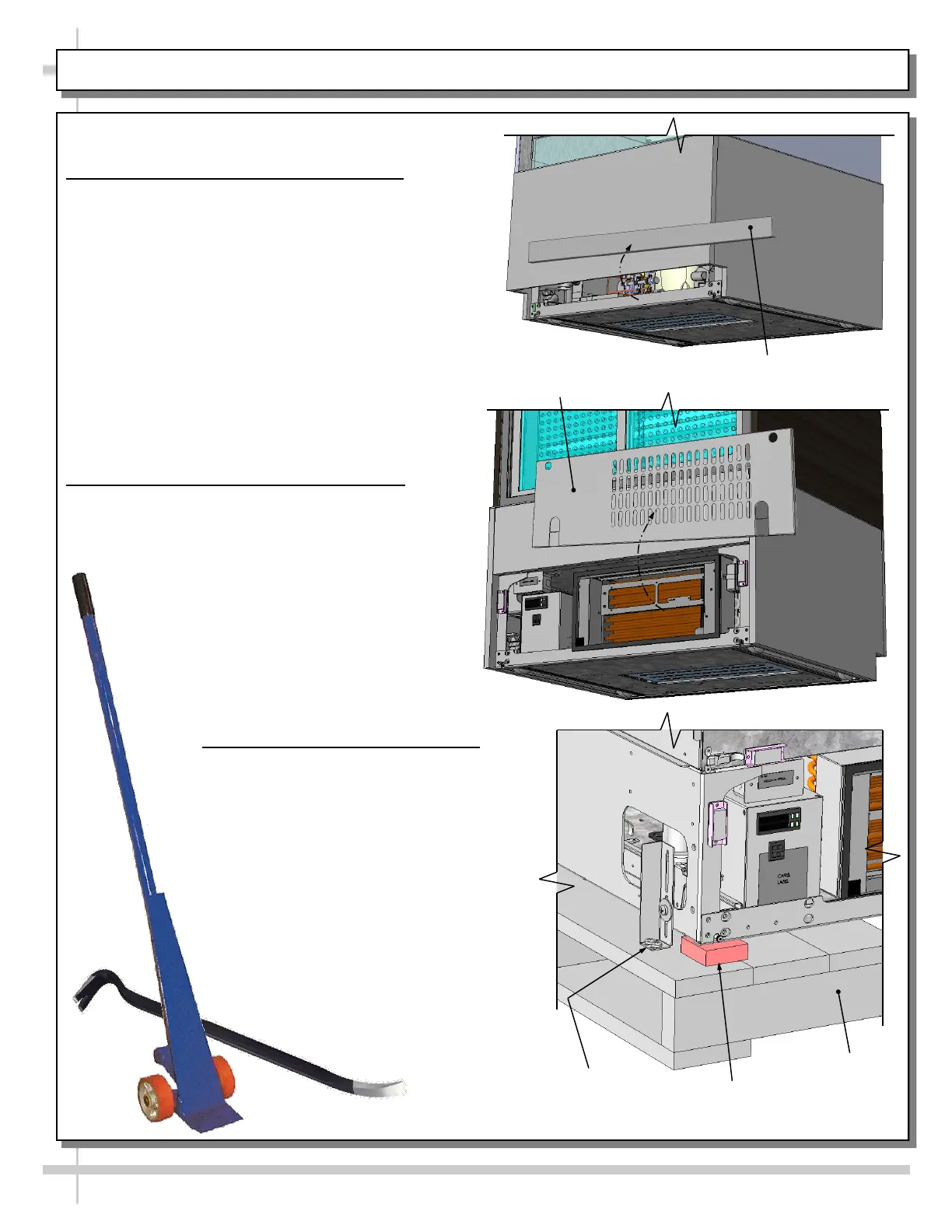

INSTALLATION: TOE-KICK & GRILLE REMOVAL / DISONNECTING CASE FROM PALLET

Toe-Kick

Air Intake Grille

1. Remove Front Toe-Kick From Case

• To prevent damage to case, remove front

toe-kick from case before removing from pallet.

• Toe-kick is held in place by magnets only. No

screw removal is required.

• Place front toe-kick in secure location while

removing case from pallet.

2. Remove Air Intake Grille From Case

• To prevent damage to case, lift air intake grille

UP and OFF case.

• Air intake grille is held in place by magnets.

No screw removal is required.

• Place air intake grille in secure location

while removing case from pallet.

3. Disconnect Case From Pallet

• Use Phillips driver to remove screws

from shipping brackets. Remove and

discard shipping brackets from pallet.

• Place J-bar/pry bar under base frame.

Raise case up from pallet to take

weight off casters.

• With case raised, lower casters all the

way down against pallet (see next

step for detailed instructions on

lowering or raising casters).

• Remove rubber shipping blocks.

Pallet

Rubber

Shipping Block

Shipping

Bracket
