INSTALLATION, CONT’D: SHIPPING BRACE / ATTACHING FRONT PANEL COMPONENTS / HANDLES

• Then, slide front panel into case until it attaches

to case via lower magnets.

• See illustration below.

14. Handles On Sides of Case

• Handles may remain on case after it has been

moved into position and cladding is attached.

• However, if handles interfere with the placement

of cladding, they may be removed.

>> See Next Page For Instructions on ATTACHING

SIDE PANELS, REAR PANEL AND GRILLE.

12. Shipping Brace (Air Intake Side) vs. Air

Exhaust Side

• Shipping brace keeps condenser package secure

during shipment & while moving case into position.

• After case is in position, remove shipping brace

that is just below condenser package by removing

(2) screws.

• Note: Shipping brace that is opposite to air intake

side of condenser package (shown below) is NOT

to be removed.

13. Attaching Front Panel Components

• Carefully remove components from packaging.

• Note: All front panel components may be attached

to case via magnets (WITHOUT screw

attachments).

• Attach front toe-kick to case (via lower magnets).

• Slide front panel horizontal support bracket

into case’s support slot (line up arrows).

Shipping Brace Stays In Air Exhaust Side

Of Case. It Is ONLY To Be Removed From

Air Intake Side Of Condenser Package

(At Opposite End Of Illustrated Case).

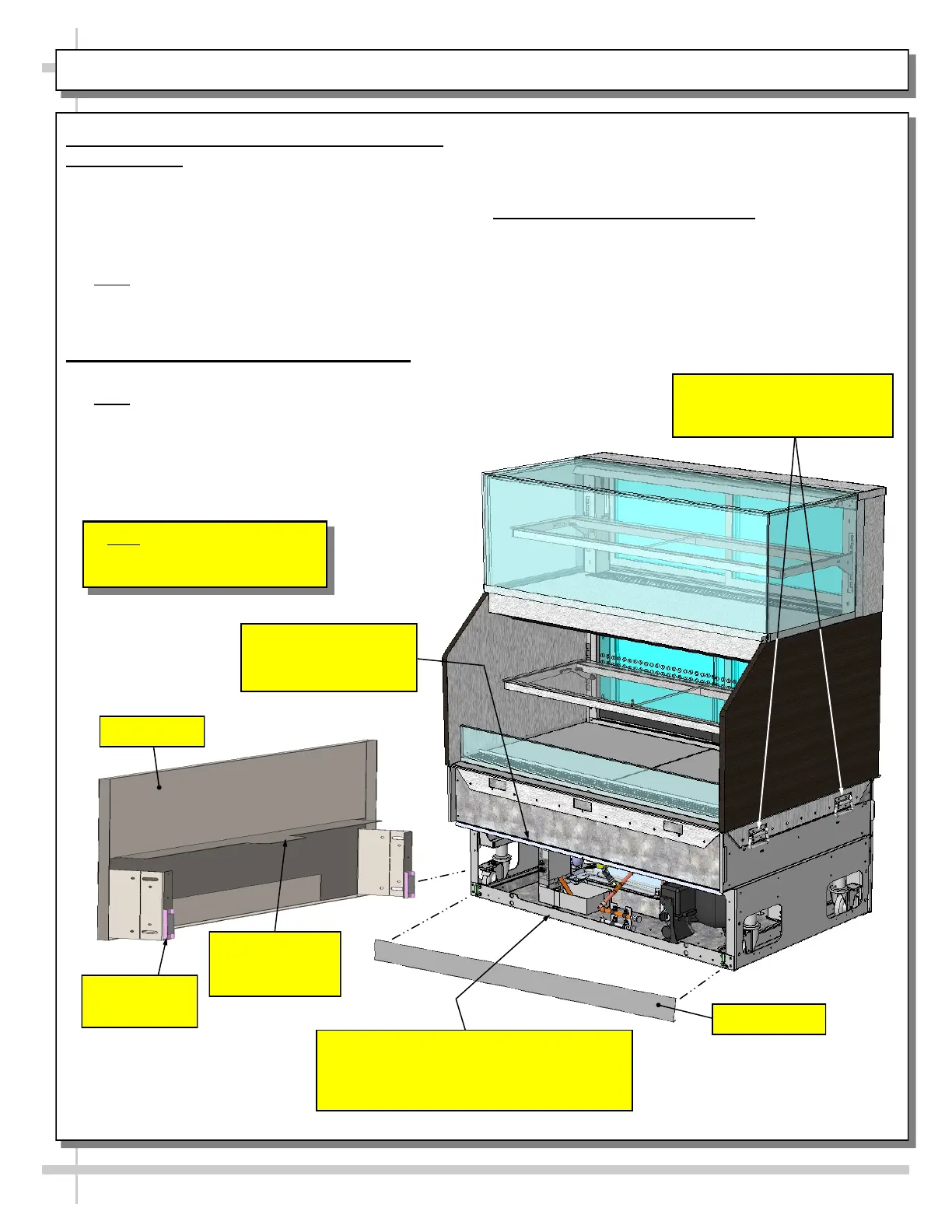

Front Toe-Kick

Support Slot (For Front

Panel’s Horizontal

Support Bracket)

Front Panel

Horizontal

Support Bracket

Front Panel

Magnet (Typ.)

Front Panel

Handles (on Both Sides of

Case) May Be Removed If

They Interfere With Cladding
