Reveal® User Manual 12

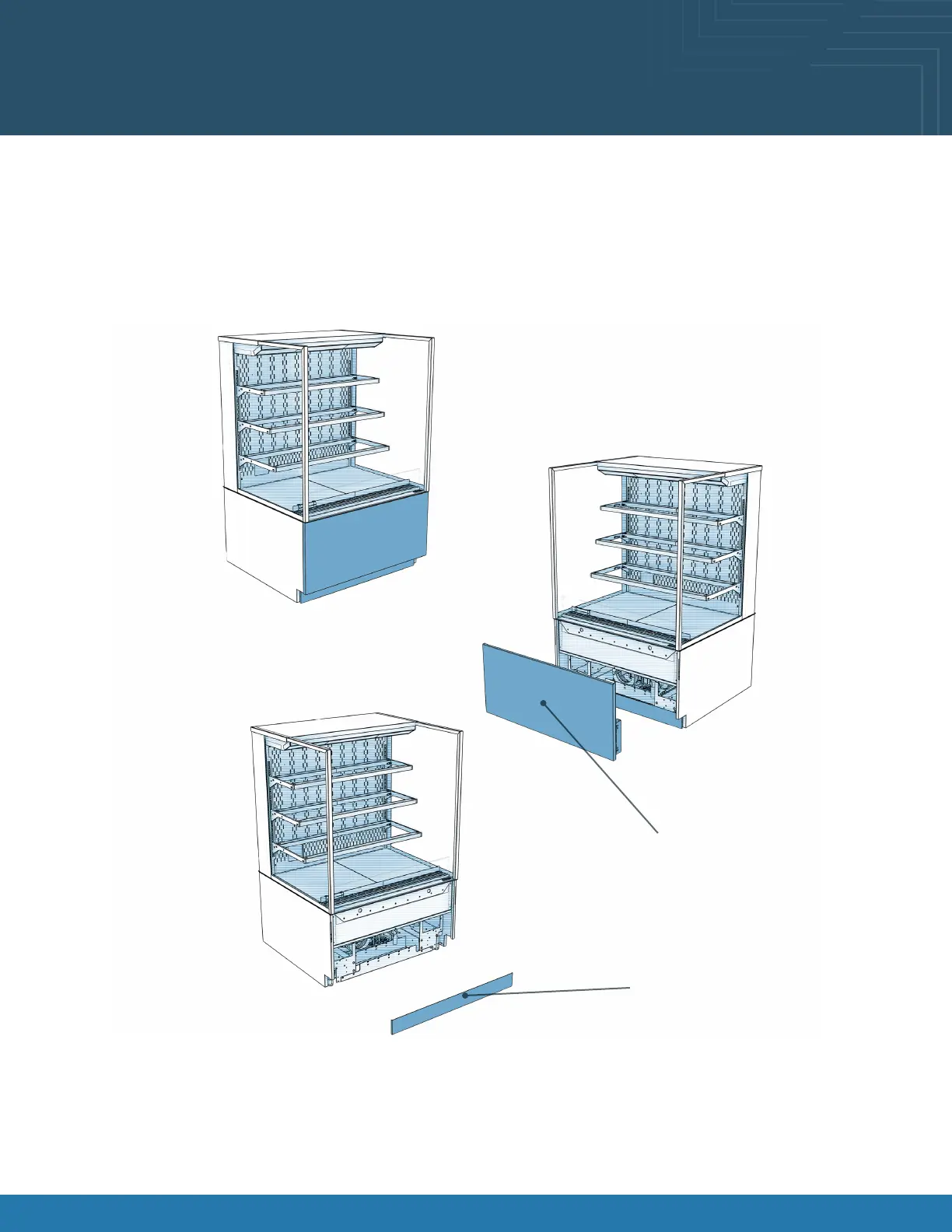

Front Panel Removal
Servicing of refrigeration components is to be done by a licensed refrigeration contractor.
• Remove front panel by grabbing the bottom of the panel and pull forward to release magnets.
• Remove lower front panel from the magnets to access the compressor package.
• Carefully slide condenser package pan out from under case to access various components.
• For reassembly, reverse the order items were removed.
Front Panel
Lower Front Panel
