CASE DESIGN, CONT’D: POWERED HUMIDIFICATION SYSTEM (OPTIONAL) / WATER CAPACITY/ TYPE

5. Powered Humidification System (Optional)

CAUTION! ELECTRIC SHOCK HAZARD!

• Overfilling Powered Humidification system can

cause electrical shock.

• LED indicator will alert case operator when MAX

CAPACITY has been reached.

• IMPORTANT! If MAX CAPACITY light

malfunctions, check overflow periodically to

assure that water does not overflow onto floor.

7. Type of Water

• Use ONLY distilled water (to prevent corrosion of

electrical & mechanical components).

• DO NOT use deionized water, as it may damage

heating element.

• Regardless of type of water utilized, regular

cleaning must be performed to prevent residue,

lime and mineral deposits. See PREVENTIVE

MAINTENANCE section in manual for funnel and

cleaning instructions.

• DISCONTINUE filling the funnel (shown at right)

when Powered Humidification system is FULL (and

MAX CAPACITY is reached).

6. Water Capacity - Important! Please Read!

• Capacity of MOST units is 7 quarts.

• Capacity of SMALLER units (NR3633HSV,

NR4833HSV and ALL PASSIVE HUMIDIFICATION

UNITS ) is only 3.5 quarts

• At initial fill, ADDITIONAL water will be required for

the water fill funnel.

• Do NOT overfill (see above for warnings).

• IMPORTANT! If humidification system overfills, you

must check overflow at rear of case. See next page

its location and illustration.

Powered

Humidification System

Connect

Quick-Connect Coupling

Here (For Water Inlet)

Water

Inlet

Hose

Float (Activates

Humidification System

Based On Water Level)

Hose From Water Fill

Funnel (Optional) To

Humidification System

Hose From

Humidification

System To Overflow

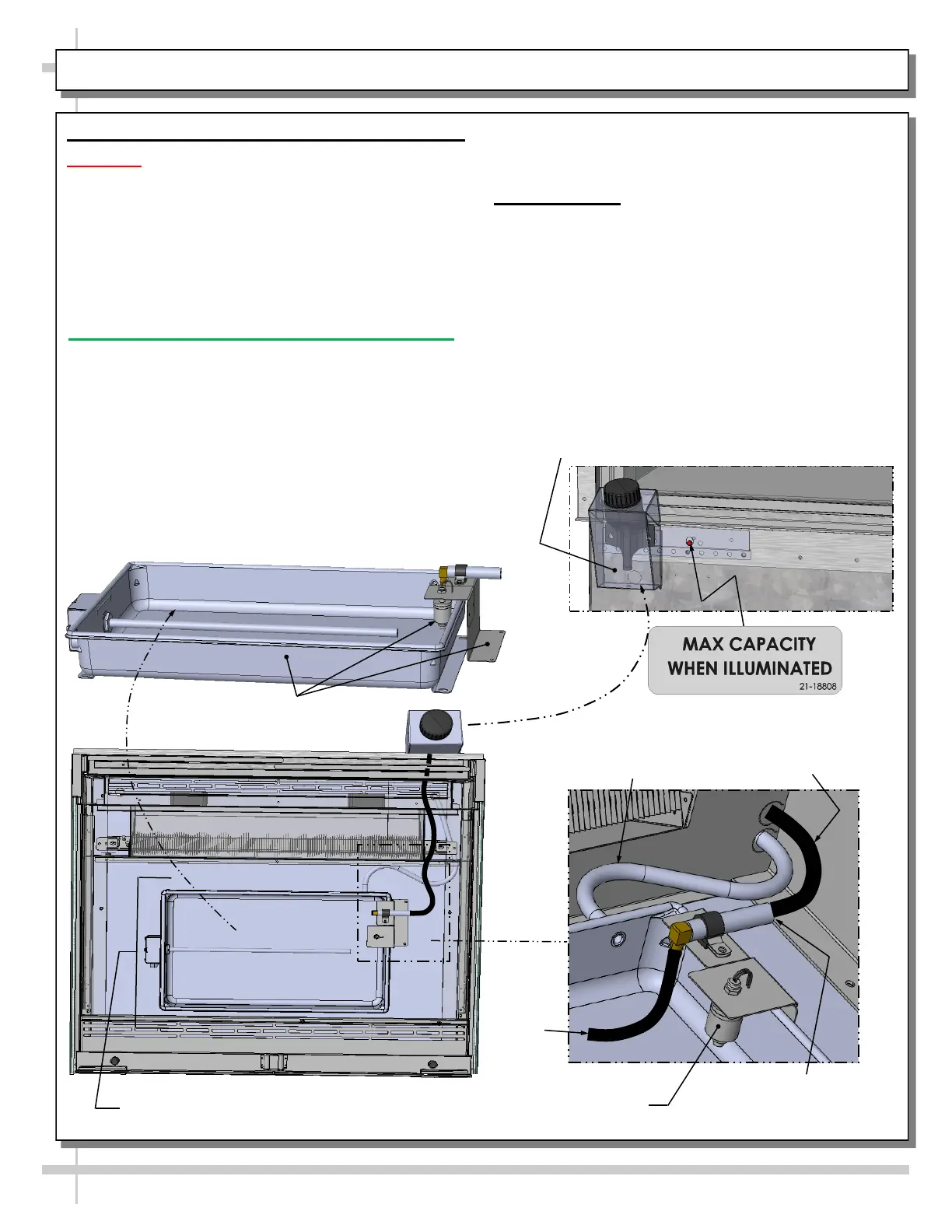

Powered Humidification System

(To Be Attached To Tub)

--- Case Front ---

--- Rear View of Case ---

Water Fill Funnel

(Optional) / Shown

Transparent
