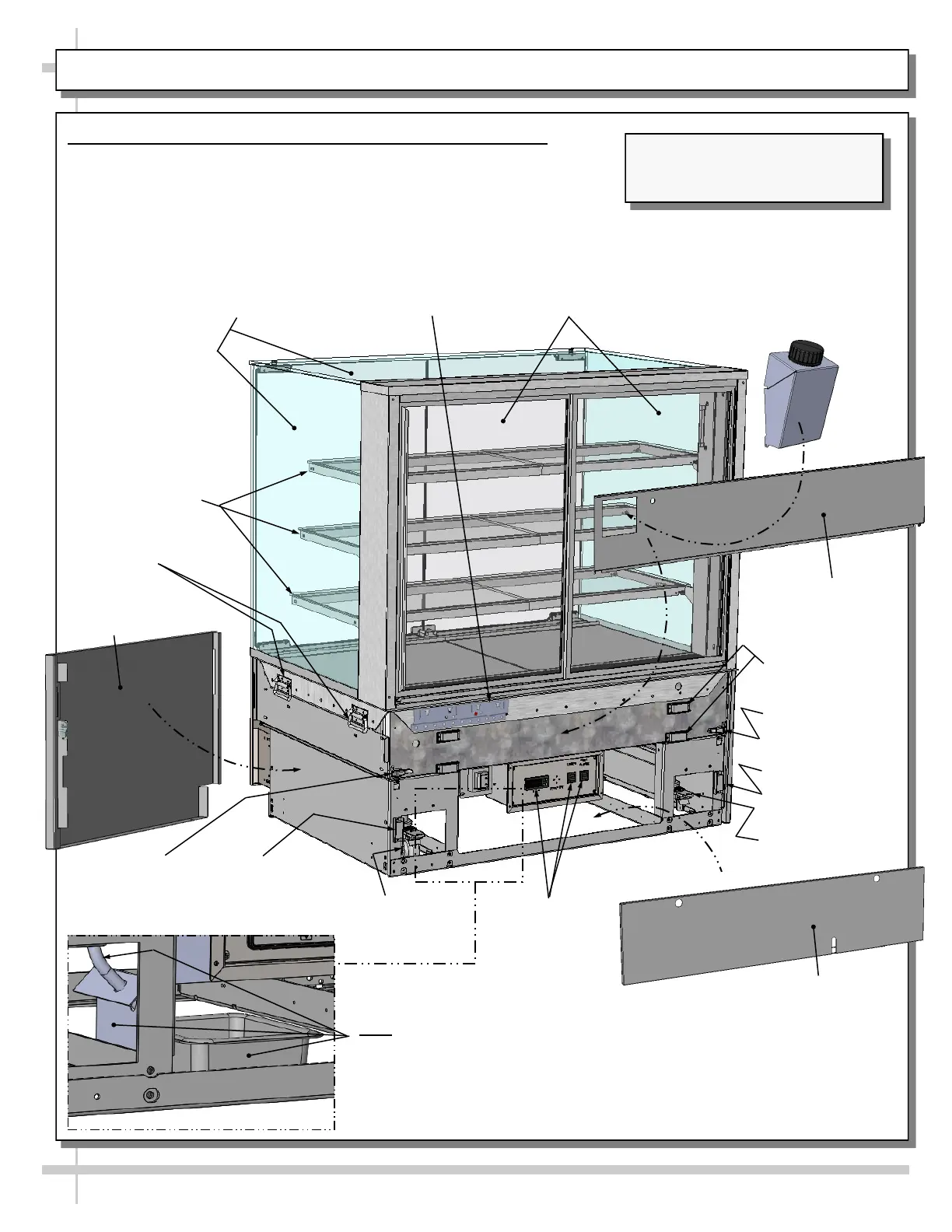

CASE DESIGN, CONT’D: REAR VIEW OF FREE STANDING, SERVICE MERCHANDISERS

2. Rear View Of Free-Standing, Service Merchandisers

• Random free-standing unit is illustrated below.

• Rear panels, side cladding & shipping brace are removed

for illustrative purposes only.

Shelving

(Typ.)

UV-Bonded Glass

Enclosure (Typ.)

Handles

(Typ.)

Thermostat,

Lights And

and Main

Power Switch

Locking Caster

(Typ.)

Magnets For Rear

Upper Panel (Typ.)

Model Shown May Not Exactly

Reflect Every Feature or Option of

Your Particular Case.

Rear Sliding

Doors

Magnet For Rear

Lower Panel

Latch To Secure

Side Panel

Latch To

Secure Side

Panel

Locking Caster

(Typ.)

Magnet For

Rear Lower

Panel

Side Panel

(Typ.)

Rear Lower Panel

Water Fill Funnel

(Optional)

Rear Upper

Panel

Funnel Bracket

Overflow For Humidification System (Optional).

Note: If Unit Was Ordered With Optional Humidification

System, and This Component Is Not Present, Contact

Structural Concepts Corporation.
