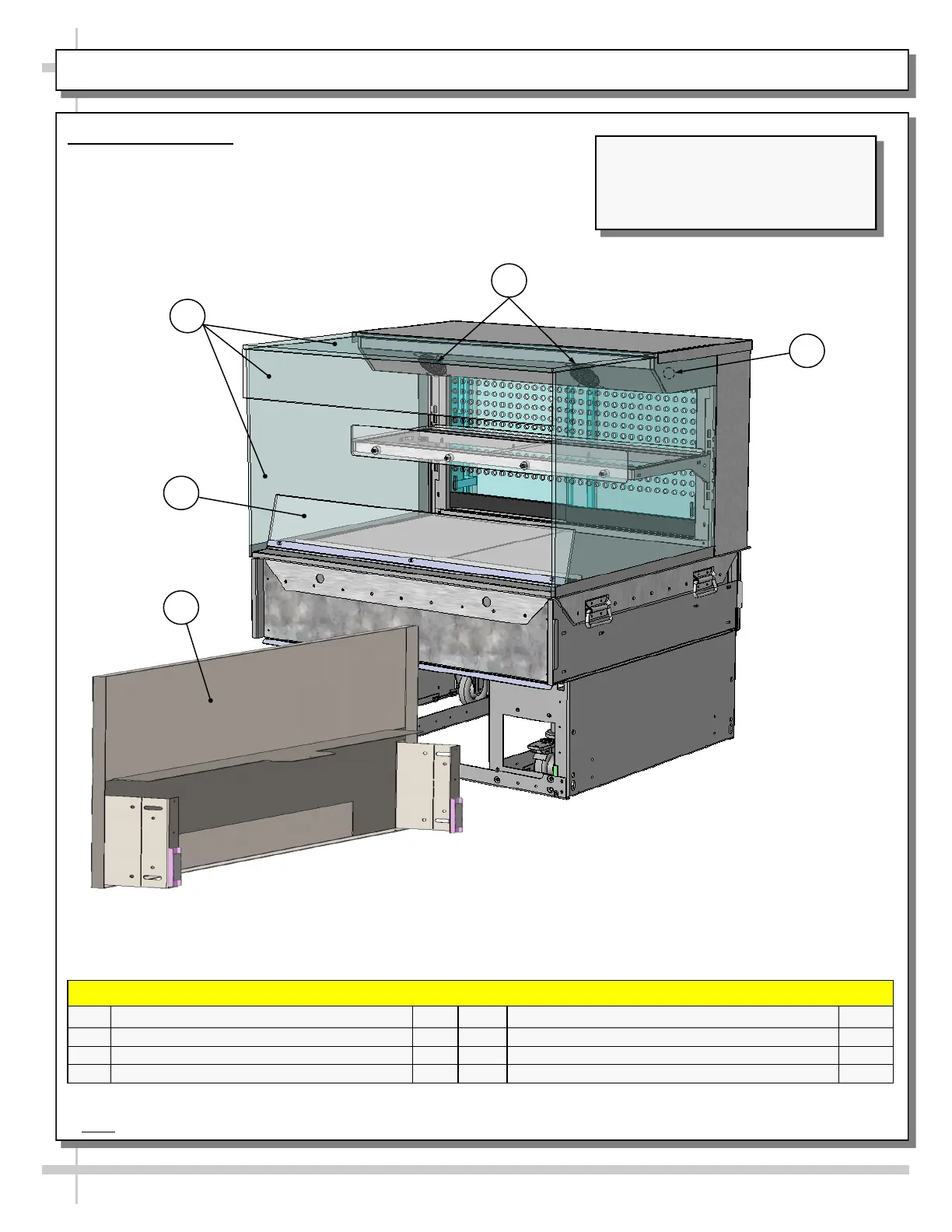

CASE DESIGN & FIELD SERVICE PARTS LIST: CASE FRONT VIEW
1. Case Front View
• Model NR3640HSSV with rear sliding doors is illustrated below.
• Solid back units differ from unit shown.
Model NR3640HSSV Free-Standing
Unit (Shown) May Not Exactly Reflect
Every Feature or Option of Your
Particular Case.
FIELD SERVICE PARTS LIST: CASE FRONT VIEW
P/N COMPONENT NAME AMT P/N COMPONENT NAME AMT
1 UV-BONDED GLASS ASSEMBLY 1 4 AIR DEFLECTOR 1
2 FAN (IN UPPER AIRFLOW SYSTEM)* 5* 5 FRONT PANEL ASSEMBLY 1
3 HEATER ROD** 1
3
2
1
4
5
*Number of fans vary depending upon model.
**Note: Only taller models have a heater rod (accompanied by a separate programmable controller).
