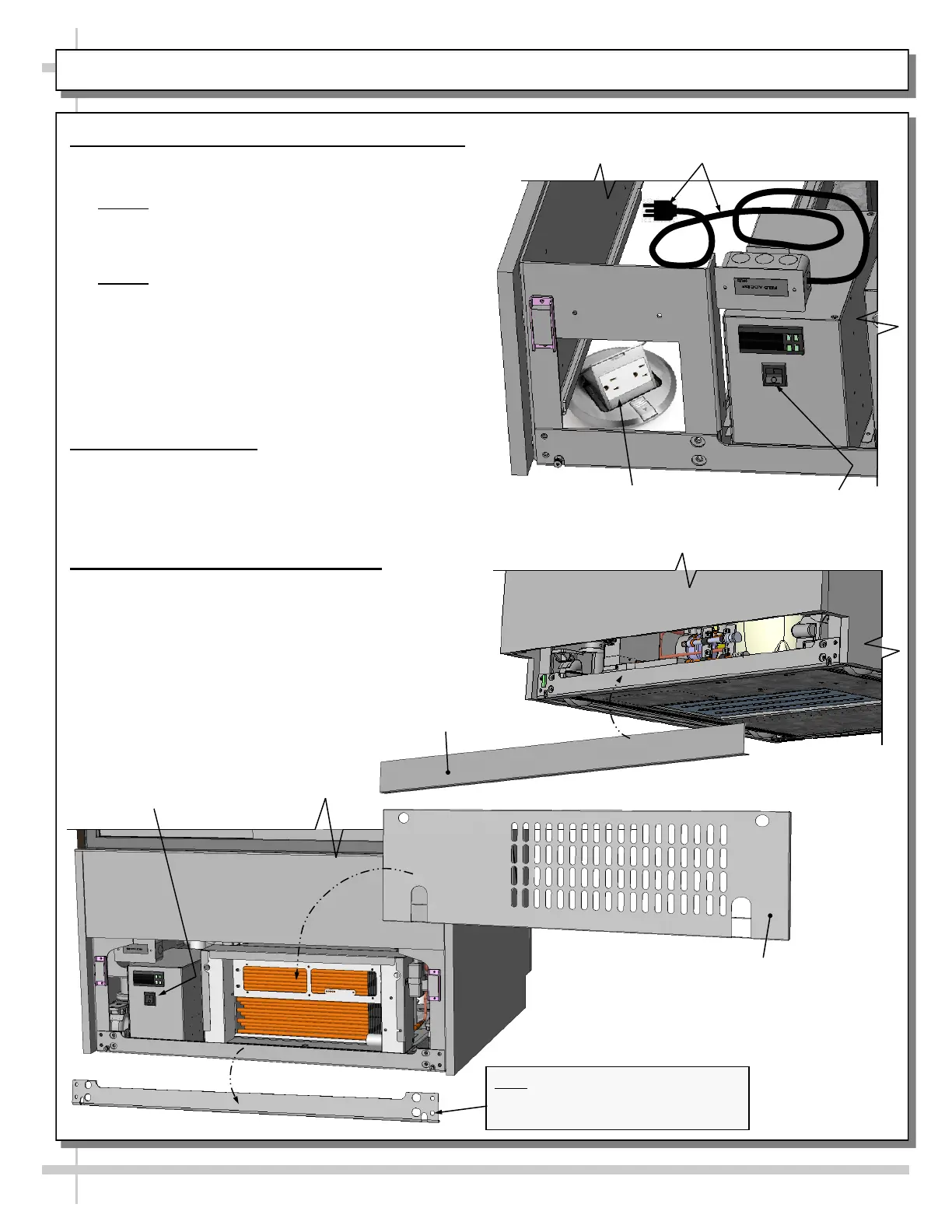

INSTALLATION, CONT’D: MAIN POWER SWITCH / TOE-KICK & AIR INTAKE GRILLE / PLUG-IN

9. Plug Case In / Turn Main Power Switch On

• Power cord with plug is factory-supplied.

• Plug case into customer-supplied electrical outlet.

• Note 1: Partially-disassembled view at right is

shown with casters removed for illustrative

purposes only. View/location of floor receptacle

is for illustrative purposes only.

• Note 2: Due to space constraints, it may be

necessary to pull out condenser package to

maneuver power cord plug around components

and into receptacle.

• Turn main power switch on.

• Check that case is energized. Lift deck pans to

confirm that evaporator fans are rotating).

• Turn on LED light switch at front-left header.

10. Toe-Kick To Case

• After case has been fully assembled and is in

position, return toe-kick to case.

• Toe-kick is held in place by magnets only. No

screw replacement is required.

11. Return Air Intake Grille To Case

• After case has been energized and main power

switch has been turned on, return air intake grille

to case.

• Air intake grille is held in place by magnets.

Screw replacement is not required.

• See illustration below.

Main Power Switch

Front Toe-Kick

Air Intake Grille

Factory-Supplied Power

Cord With Plug

Customer Supplied Receptacle (Sample

Floor Unit Illustrated). Casters Removed

For Illustrative Purposes Only.

Main Power

Switch

Note: Shipping Brace That Is At Air

Intake Side of Condenser Package

(Shown) Must Be Removed!
