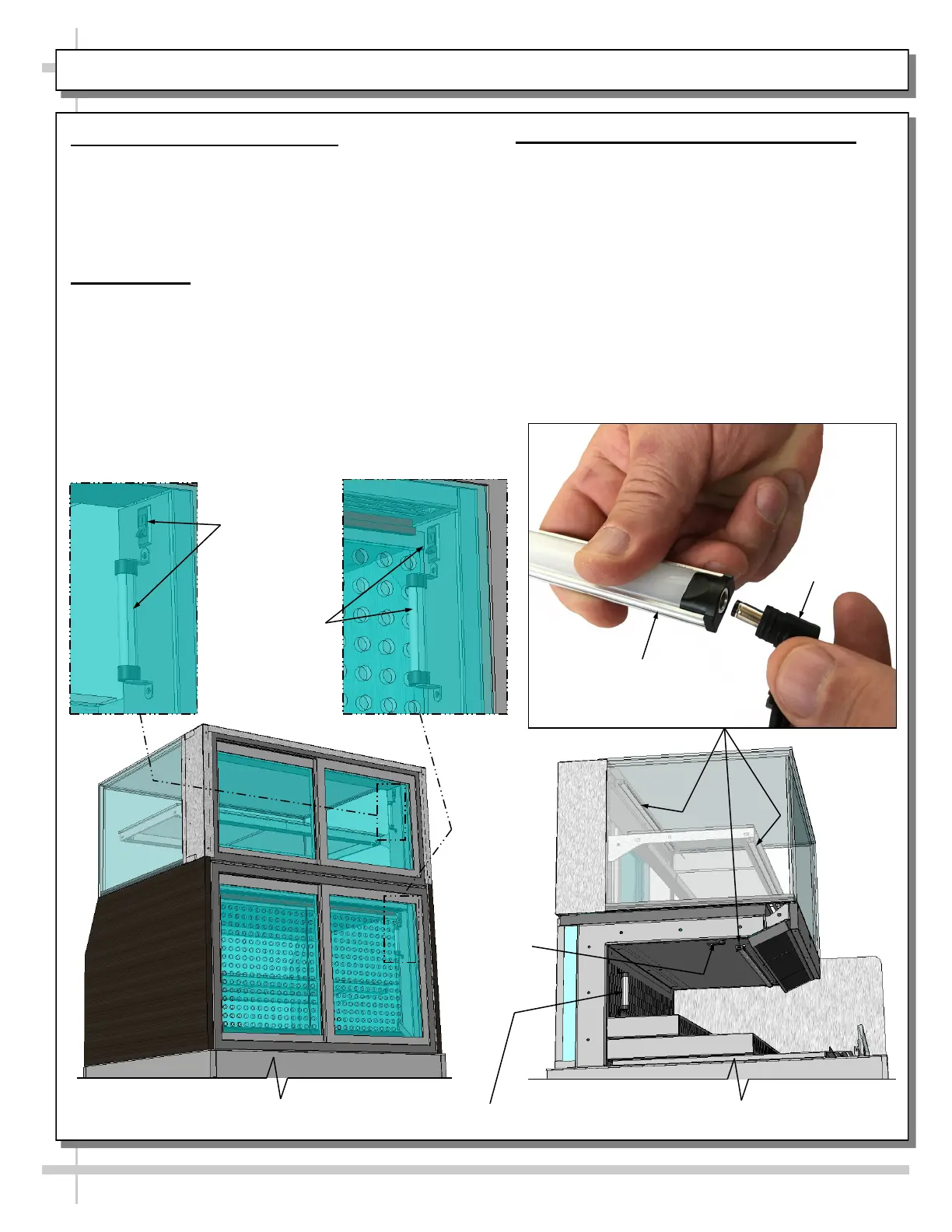

CASE DESIGN, CONT’D: LED LIGHT SWITCH LOCATIONS / LED LIGHTS / THERMOMETERS

7. LED Light Switch Locations

• Separate LED light switches are in upper and lower

sections of case (as shown below).

• Cases with lower rear sliding doors have different

light switch location than units with solid back rear

lower panel (as shown in illustrations below).

8. LED Lights

• LED lights are located at both header and

shelving of case (as shown below).

• Check that ALL of the light plugs are properly

connected to the LED light.

• Plug must be inserted ALL THE WAY into the

LED light orifice (with no gap) to work properly.

• See TROUBLESHOOTING section in manual

if LED lights malfunction.

9. Thermometer Function & Placement

• Separate thermometers are located in both

upper and lower sections of case.

• Cases with lower rear sliding doors have

different thermometer location than units with

solid back rear lower plenums (as shown in

illustrations below).

• Thermometer provides temperature of

refrigerated section of case.

• Thermometers reflect warmest air

temperature in merchandiser. They do not

provide actual food temperature.

• Use probe thermometers to determine

actual product temperatures.

Upper Section

LED Light

Switch And

Thermometer

Lower Section

LED Light

Switch And

Thermometer

--- Case With Solid Back Rear Lower Plenum ---

--- Case With Lower Rear Sliding Doors ---

Light

Switch

LED Light

Plug
