CASE DESIGN, CONT’D: LED LIGHT CONNECTION / THERMOMETER FUNCTION & PLACEMENT

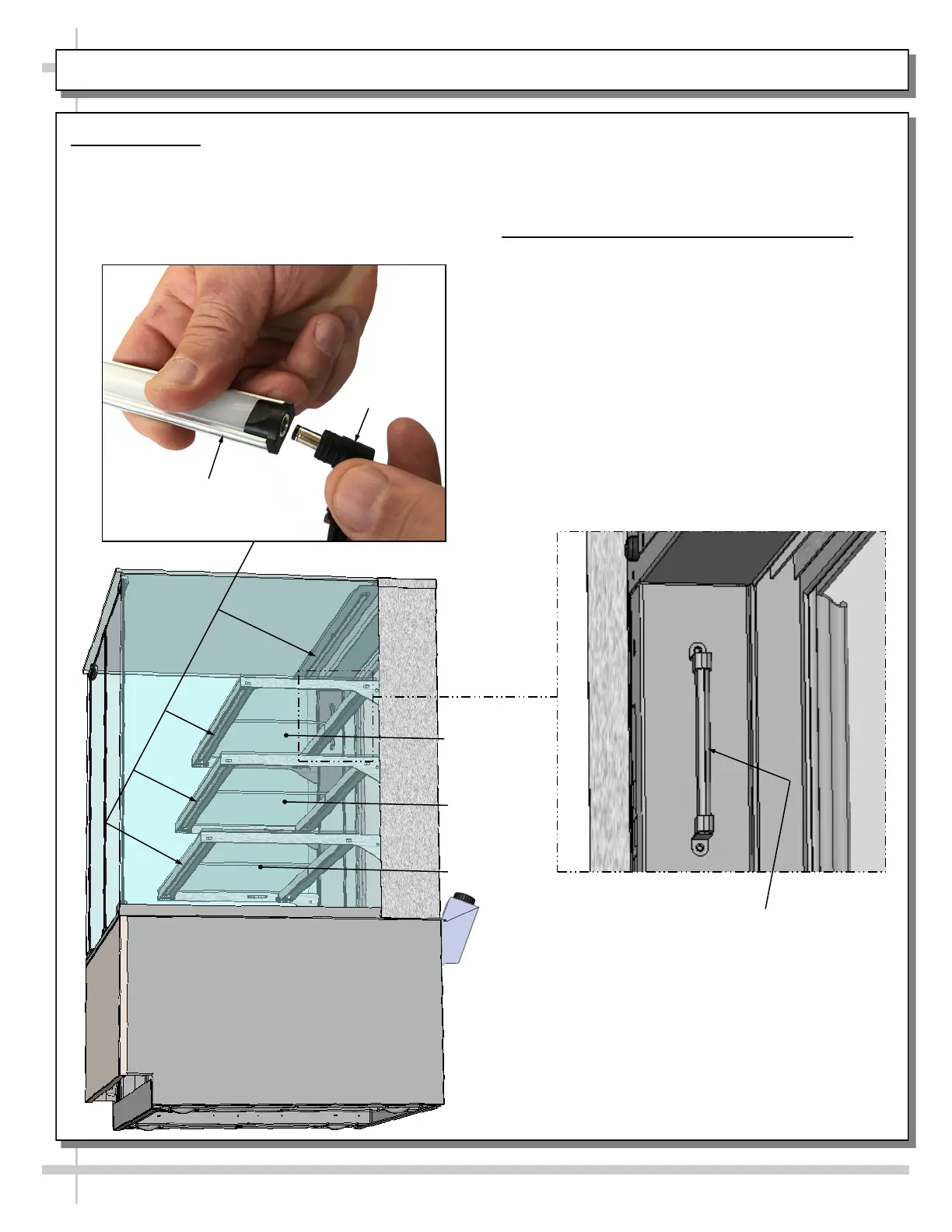

11. LED Lights

• LED lights are located at both header and

shelving of case (as shown below).

• Check that ALL of the light plugs are properly

connected to the LED light.

Middle Shelf

Lower Shelf

• Plug must be inserted ALL THE WAY into the

LED light orifice (with no gap) to work properly.

• See TROUBLESHOOTING section in manual

if LED lights malfunction.

12. Thermometer Function & Placement

• Thermometer provides air temperature of

heated section of case.

• Thermometers DOES NOT provide actual food

temperature.

• Use probe thermometer to determine actual

product temperatures.

Top Shelf

LED Light

Plug

Thermometer Shown

(Shelving Removed For

Illustrative Purposes Only)
