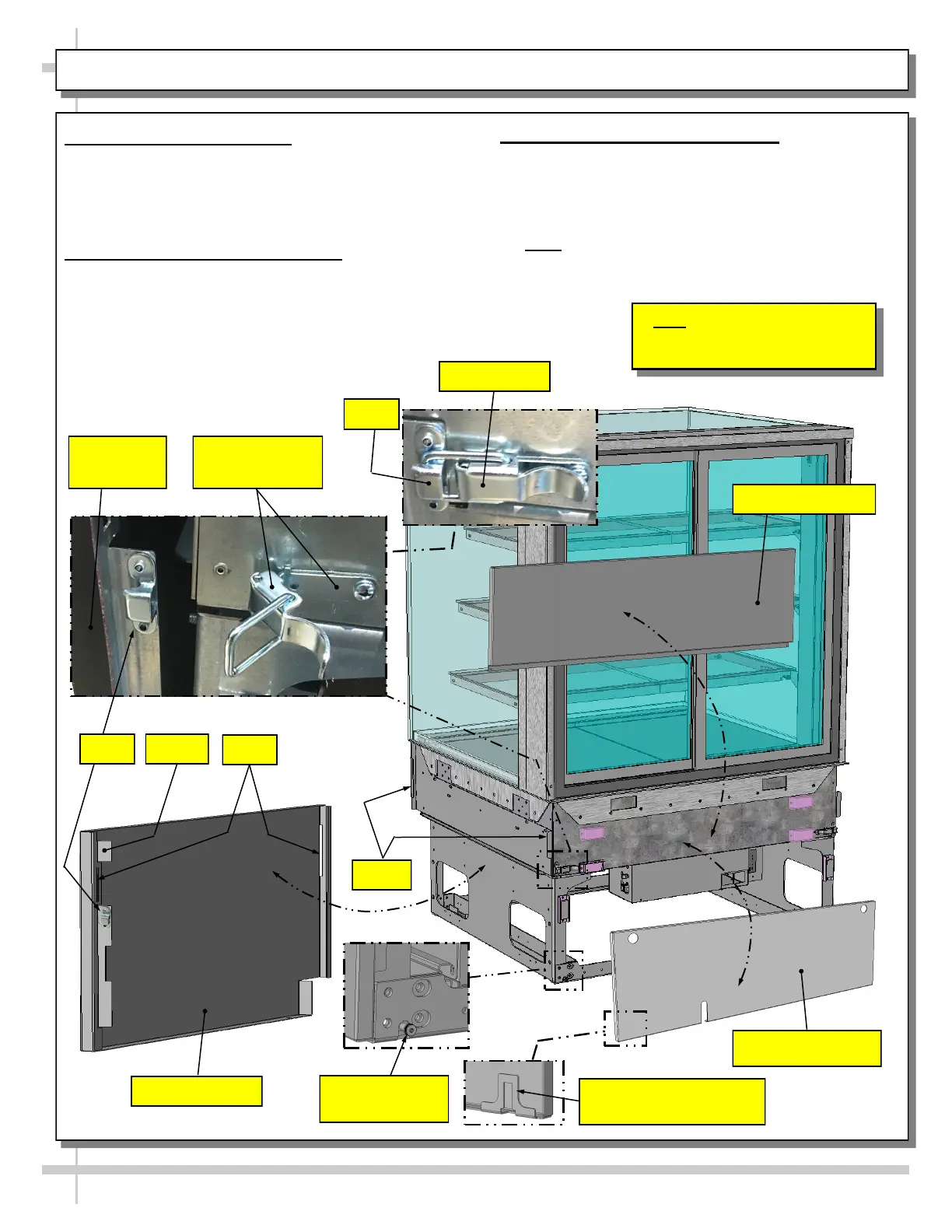

INSTALLATION, CONT’D: ATTACHING SIDE PANELS, REAR UPPER AND LOWER PANEL

11. Attaching Side Panels

• Attach side panels to case using slot/hook method.

• Use latches at case rear to firmly attach side

panels to case.

• See illustrations below.

12. Attaching Rear Upper Panel

• Place rear upper panel onto care rear.

• Four (4) magnets will hold it firmly in place.

• See illustration below

13. Attaching Rear Lower Panel

• Use finger holes to place rear lower panel’s

inner hooks onto case rear’s lower shoulder

screws.

• Snap onto case’s two (2) rear vertical magnets.

>> Note: Components may be removed in reverse

order they were shown being attached on this sheet.

Hook

Unlocked Latch

(Typ.)

Side Panel (Typ.)

Rear Upper Panel

Slots

Side Panel

(Typ.)

Inserts

Hooks

Locked Latch

Hook

Shoulder Screw

(Typ.)

Note: Illustration shown may

not reflect every feature or

option of your particular case.

Rear Lower Panel

Rear Grille Inner Hook

Shown Reversed (Typ.)
