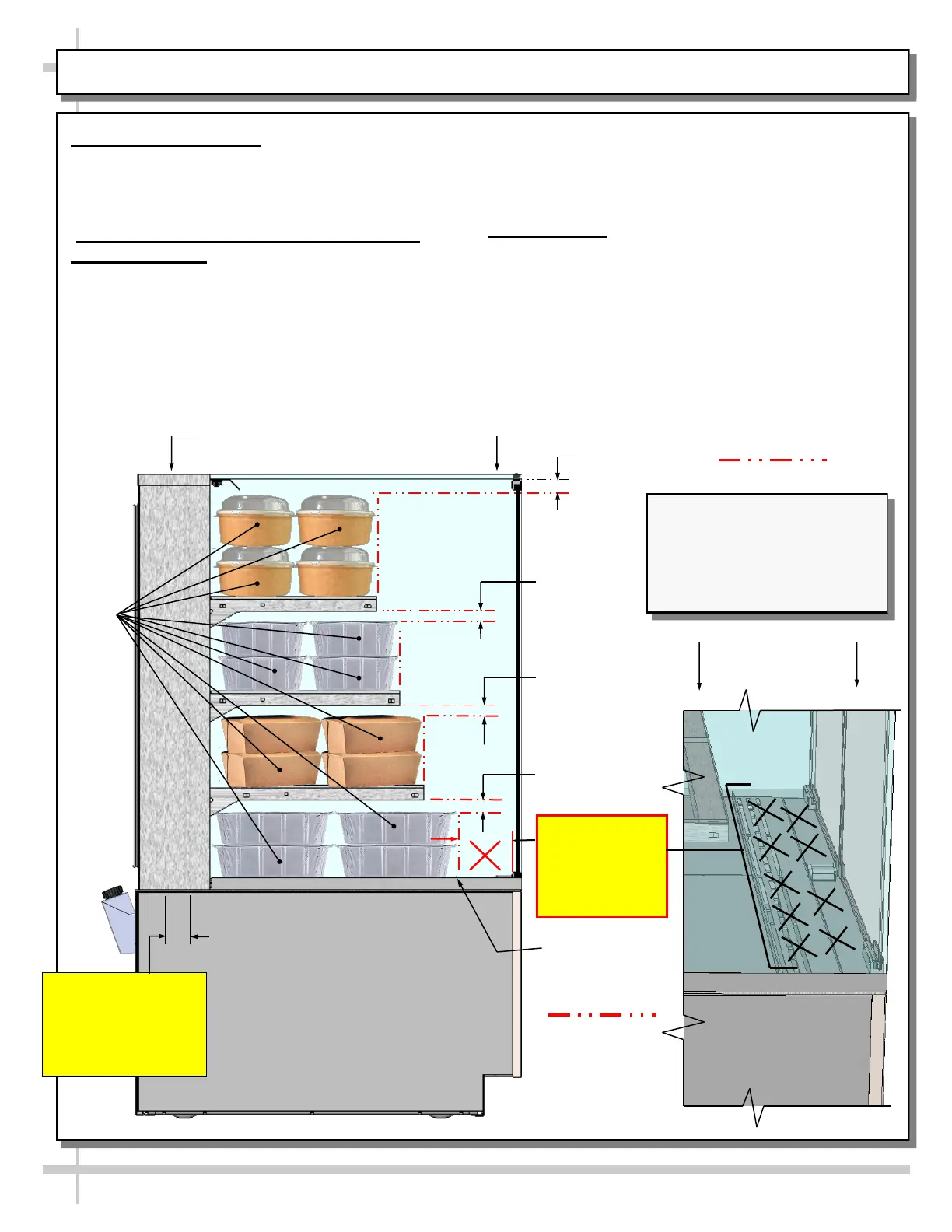

START-UP AND OPERATION, CONTINUED: LOAD LIMITS

PRODUCT PLACEMENT / AIRFLOW CONSIDERATION / LOAD LINES

• Caution! For discharged air to reach the return air

grille, you must not block front OR rear grilles with

product.

• Do not place product on front ledge of case.

3. Load Lines

• Load lines represent the limit that product can be

place (either horizontally or vertically) and/or

stacked in case.

• Keep product at or under load lines to assure that

heated airflow is properly cycled from air diffuser

through return air grille.

• Proper product placement will maintain

acceptable product temperature.

• See illustration below.

1. Product Placement

• Product can be placed on decking or steps

(risers) within the service display area.

• A wide range of product may be displayed.

2. Air Diffuser Grille & Return Air Grille

Considerations

• Proper airflow is critical to maintain proper

product temperature.

• Proper product placement will allow front air to

flow over (and around) product to return air grille

at case rear. See illustration below for specifics.

Angled View Of

Discharge Air Grille

Load Lines

1” Minimum

Load Line

Sample

Product (Typ.)

1” Minimum

Load Line

1” Minimum

Load Line

1” Minimum

Load Line

Model NR3655HSV (Shown)

May Not Exactly Reflect Every

Feature or Option of Your

Particular Case. However,

General Airflow Consideration

and Load Line Guidelines Apply.

Model NR3655HSV Shown Below

Caution!

Convertible 1.25”

Air Diffuser Grille

At Rear Inner.

Do Not Block!

Load Lines

Caution!

Do Not Place

Product On

Discharge Air

Grille Or Ledge

Product Stop
