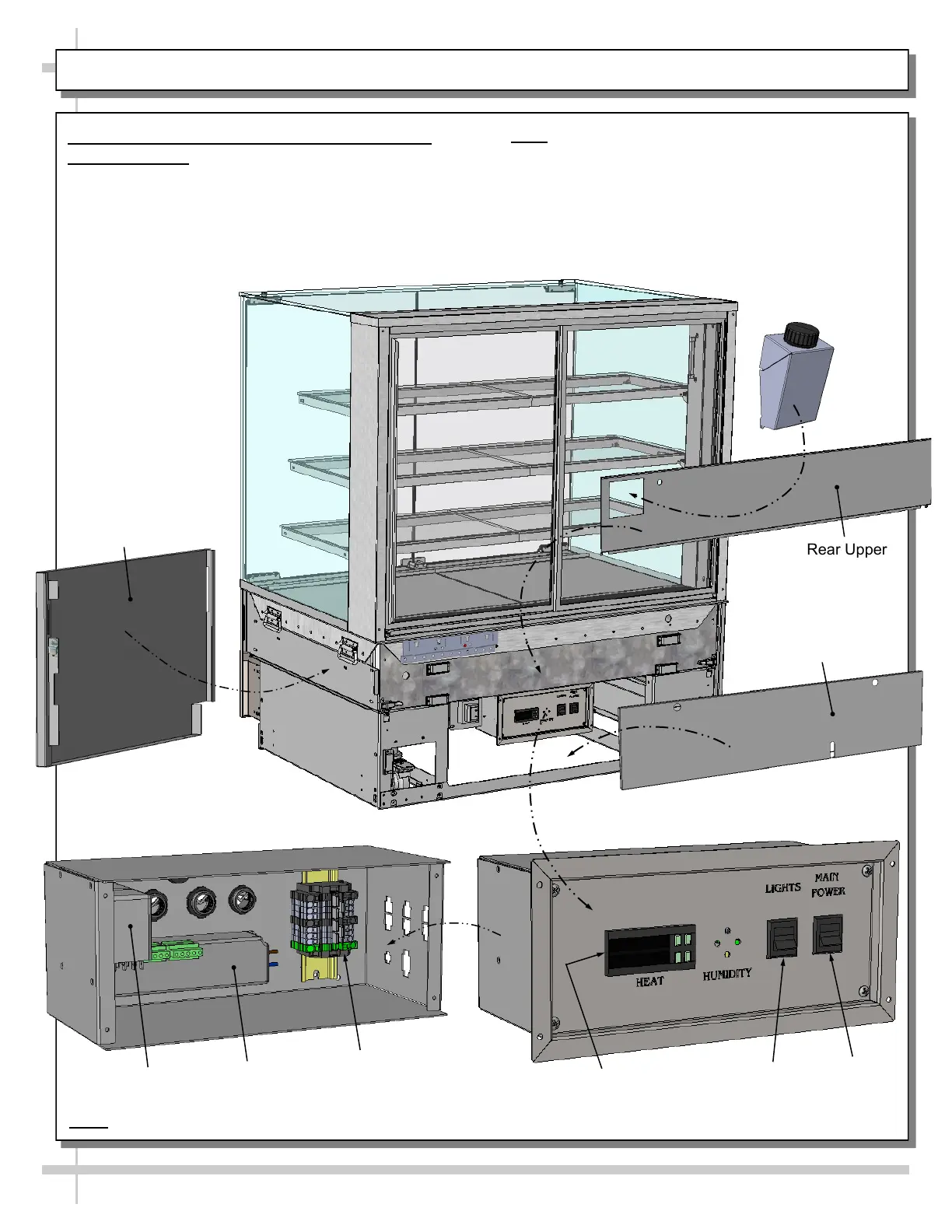

CASE DESIGN, CONT’D: CONTROLLER / LED DRIVER / LIGHTS SWITCH / MAIN POWER SWITCH

3. Thermostat / LED Driver / Lights / Main

Power Switch

• Remove rear lower panel by lifting up and off; no

screw removal is required.

• Remove 4 screws from the controller/DC driver

box cover to access electrical components.

LED Driver

Terminal Strip

Electrical Box

(With Faceplate Removed)

Electrical Box

(With Faceplate Attached)

Main Power

Thermostat

Lights

• Note: Only certified electricians are to access

electrical components in case.

• After accessing controller, return components to

case in reverse order they were removed.

Water Fill Funnel

(Optional)

Rear Upper

Panel

Rear Lower Panel

Side Panel

(Typ.)

Relay

*Note: If “HUMIDITY” etching is on faceplate, simply ignore; such markings are not applicable to cases in this manual.
