CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: LED LIGHT / PLUG / THERMOMETER

Shelf

FIELD SERVICE PARTS LIST: LED LIGHTS / PLUGS / THERMOMETER

P/N COMPONENT NAME AMT P/N COMPONENT NAME AMT

LED LIGHT (ALSO CALLED OUT

ON PREVIOUS PAGE)

1 31 THERMOMETER 1

30 PLUG, LED LIGHT 1

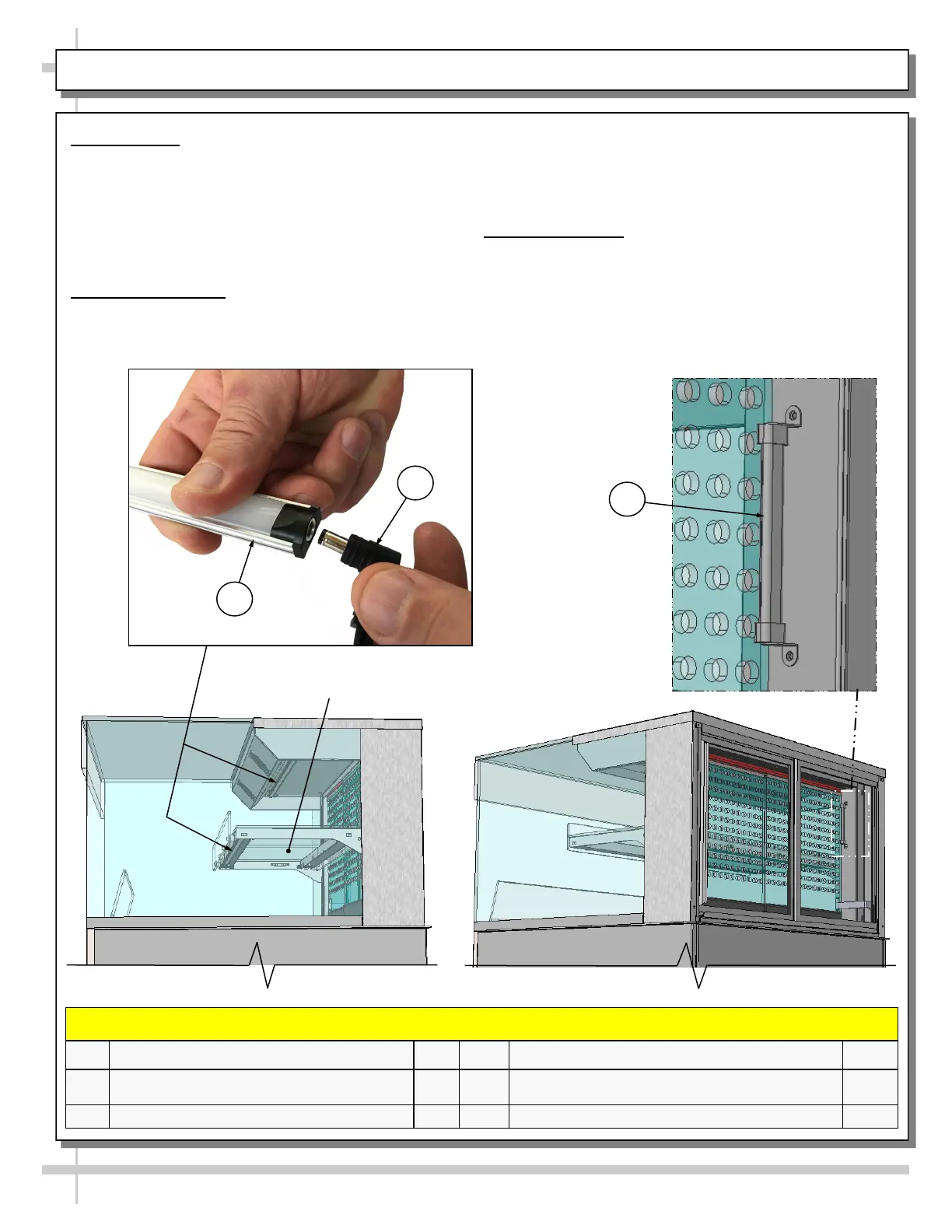

6. LED Light

• LED lights are located at both header and

shelving of case (as shown below).

• Check that ALL of the light plugs are properly

connected to the LED light.

• See TROUBLESHOOTING section in manual

if LED lights malfunction.

7. LED Light Plug

• LED lights are located at both header and

shelving of case (as shown below).

• Check that ALL plugs are properly connected to

the LED lights.

• Plug must be inserted ALL THE WAY into the

LED light orifice (with no gap) to work properly.

8. Thermometer

• Thermometer provides air temperature of

heated section of case.

• Thermometers DOES NOT provide actual food

temperature.

• Use probe thermometer to determine actual

product temperatures.
