INSTALLATION, CONT’D: ATTACHING SIDE PANELS AND REAR UPPER/LOWER PANELS

14. Attaching Side Panels

• Attach side panels to case using slot/hook

method.

• Use latches at case rear to firmly attach side

panels to case.

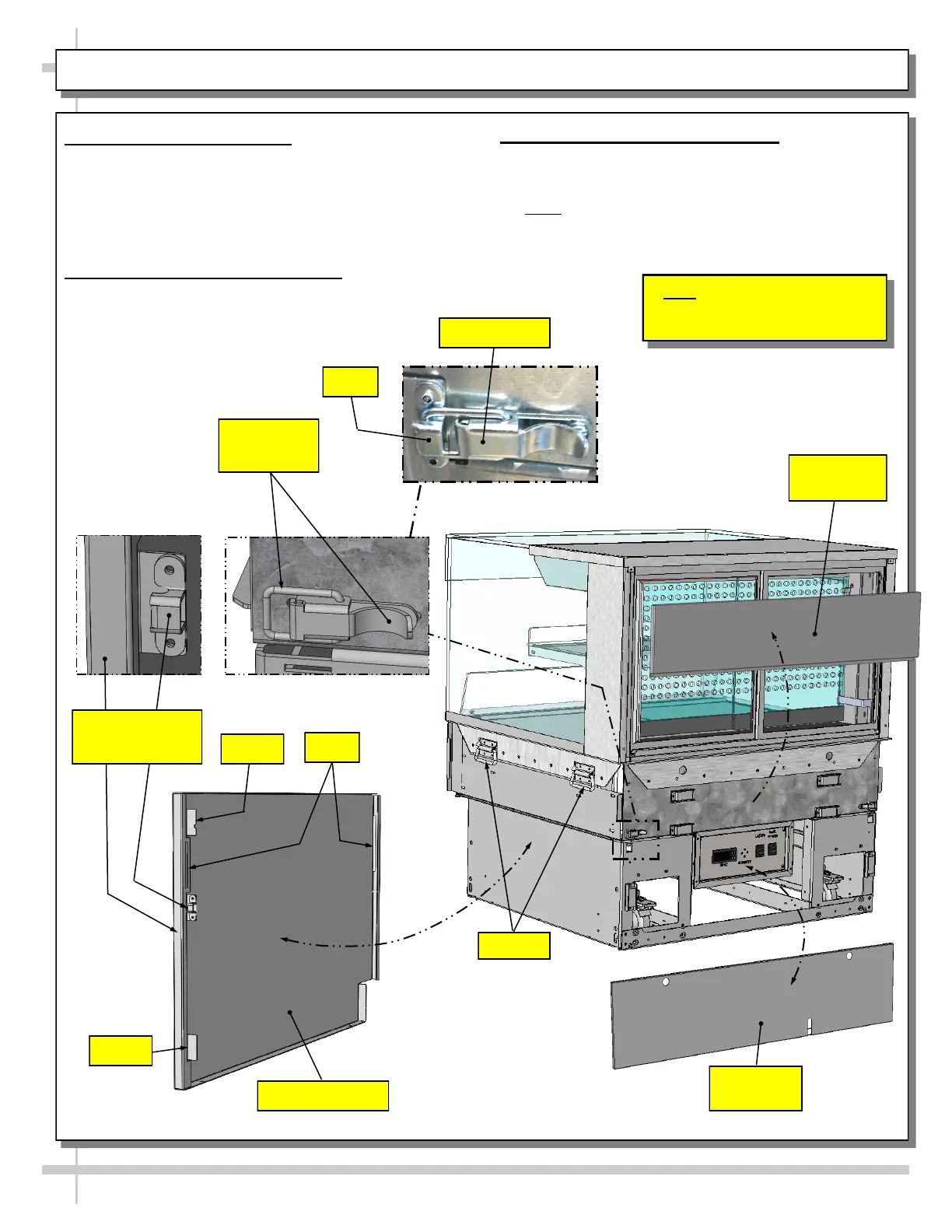

• See illustrations below.

15. Attaching Rear Upper Panel

• Place rear upper panel onto care rear.

• Four (4) magnets will hold it firmly in place.

• See illustration below

16. Attaching Rear Lower Panel

• Use finger holes to place rear panel onto lower

rear of case. Magnets will hold it firmly in place.

>> Note: Components may be removed in reverse

order they were shown being attached on this sheet.

Note: Illustration shown may

not reflect every feature or

option of your particular case.

Rear Lower

Panel

Unlocked

Latch (Typ.)

Side Panel (Typ.)

Slots

Side Panel And

Hook (Typ.)

Insert

Handles

Locked Latch

Hook

Insert

Rear Upper

Panel
