Reveal® User Manual 6

Installation: Case Removal From Skid

Remove Lower Front Panel From Case:

• To prevent damage to the case, remove the lower front

panel from the case before removing it from the pallet.

• The lower front panel is held in place by magnets only. No

screw removal is required.

• Place the lower front panel in a secure location while

removing the case from the pallet

Remove Lower Rear Panel From Case:

• To prevent damage to the case, if the lower rear panel is

on the case, lift it UP and OFF.

• The lower rear panel is held in place by magnets.

• Place lower rear panel in a secure location while

removing the case from the pallet

Disconnect Case From Pallet:

• Remove screws from shipping brackets. Remove and

discard shipping brackets from the pallet.

• Place J-bar/pry under base frame. Raise the case up

from the pallet to take the weight off the casters.

• With the case raised, lower the casters all the way down

against the pallet.

• Remove the rubber shipping blocks.

Reveal® User Manual 6

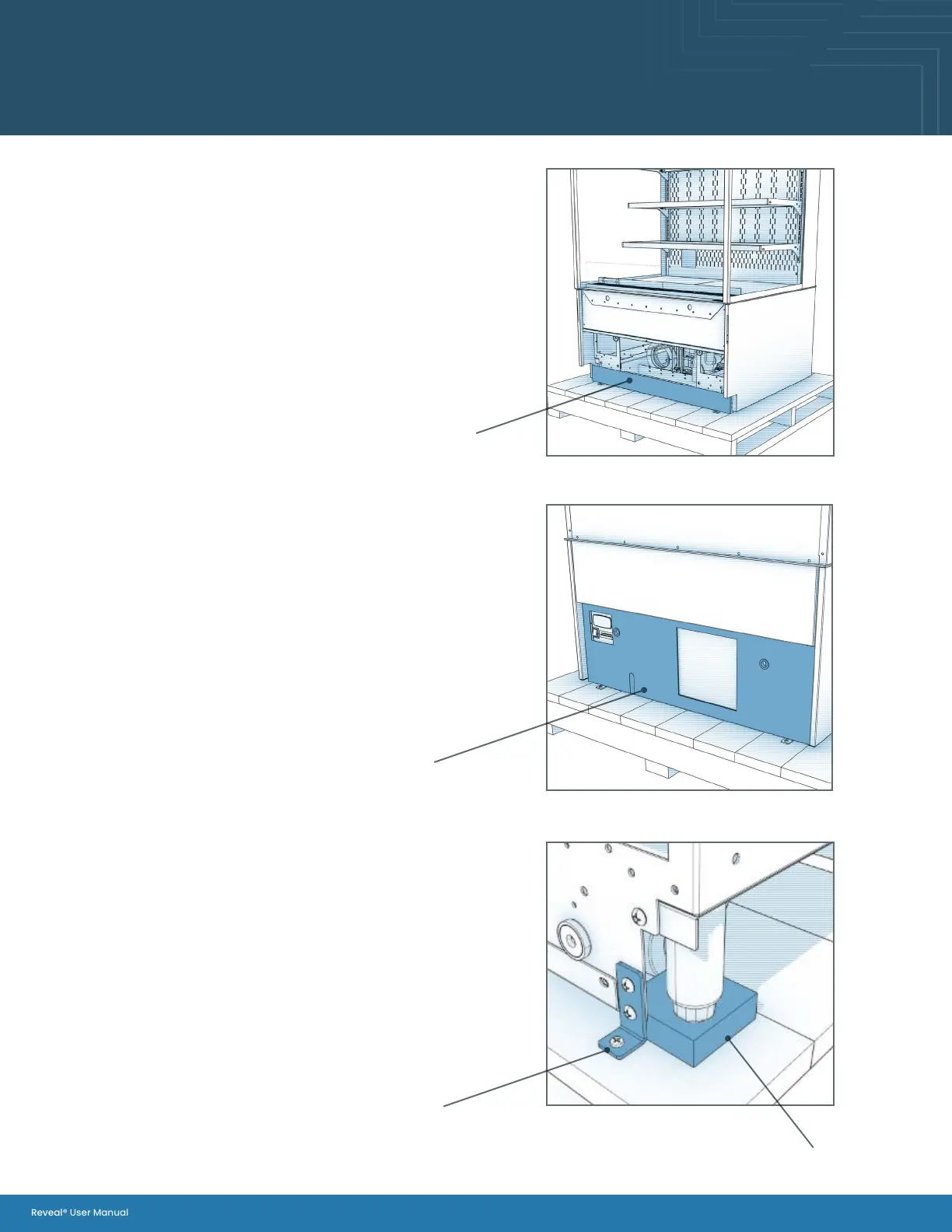

Lower Front Panel

Lower Rear Panel

Shipping Bracket

Rubber Shipping

Block
